Product Overview
The L75ms supports a variety of sources from wireless streaming via Bluetooth and Wi-Fi to hard wired sources
such as a phono turntable or TV. While some connections are specic, others can be any device that matches
that match the connections type.

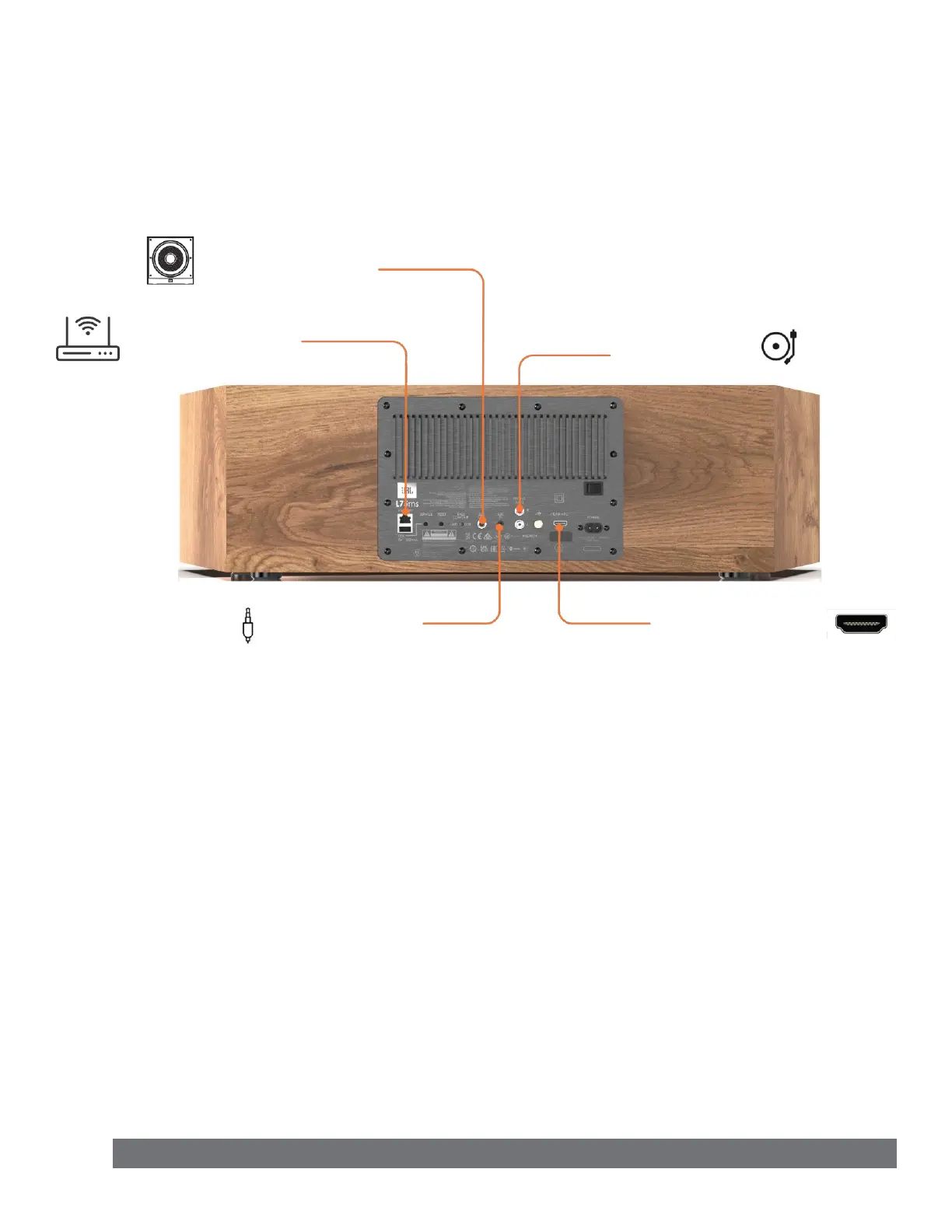

Basic Wiring Diagram
Sub Out: Single RCA to
Powered Sub (Optional)
Phono: Stereo RCA
plus Ground
Ethernet: Connect to port
on wireless router for
streaming
HDMI ARC: ARC from TV
Aux In: 3.5mm (1/8in)
Stereo
What’s in the Box
1x L75ms Integrated Music System
1x Speaker Grille
1x RF Remote
1x Region Specic Power Cord
