4

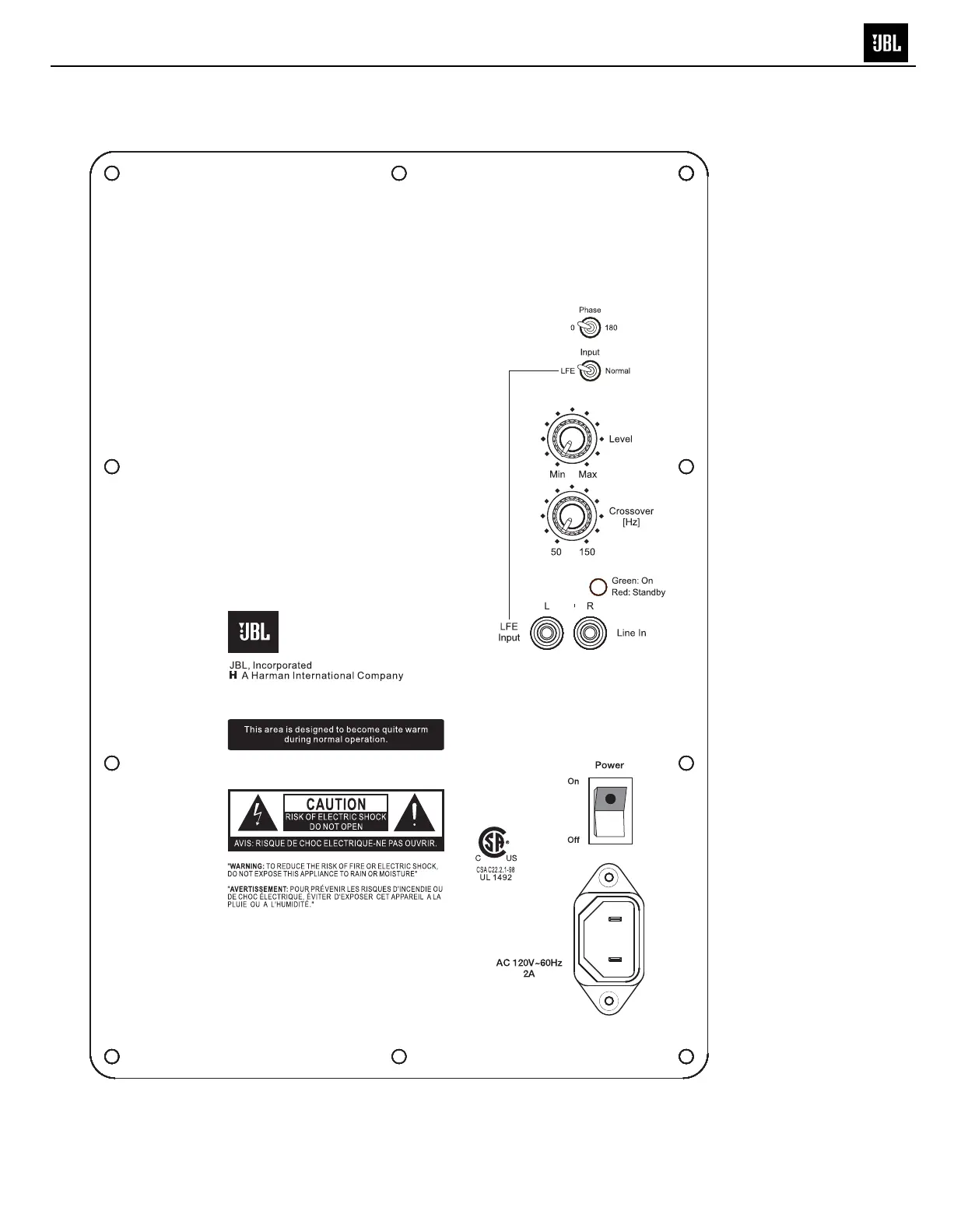

REAR PANEL
CONTROLS AND CONNECTIONS
LS120P
0
Phase Switch
1
LFE/Normal Selector
2
Subwoofer-Level Control
3
Crossover Adjustment
4
Power Indicator
5
Line-Level/LFE Input
6
Power Switch
0
1
2
5
6
3
4
