37
SUB 2
From SUB 1
LFE out
From SUB 1
S/PDIF out
From SUB 1
AES/EBU out
To Center speaker
AES/EBU in
To Center speaker
S/PDIF in
AES/EBU audio connection
S/PDIF audio connection
Analog audio connection
Legend:

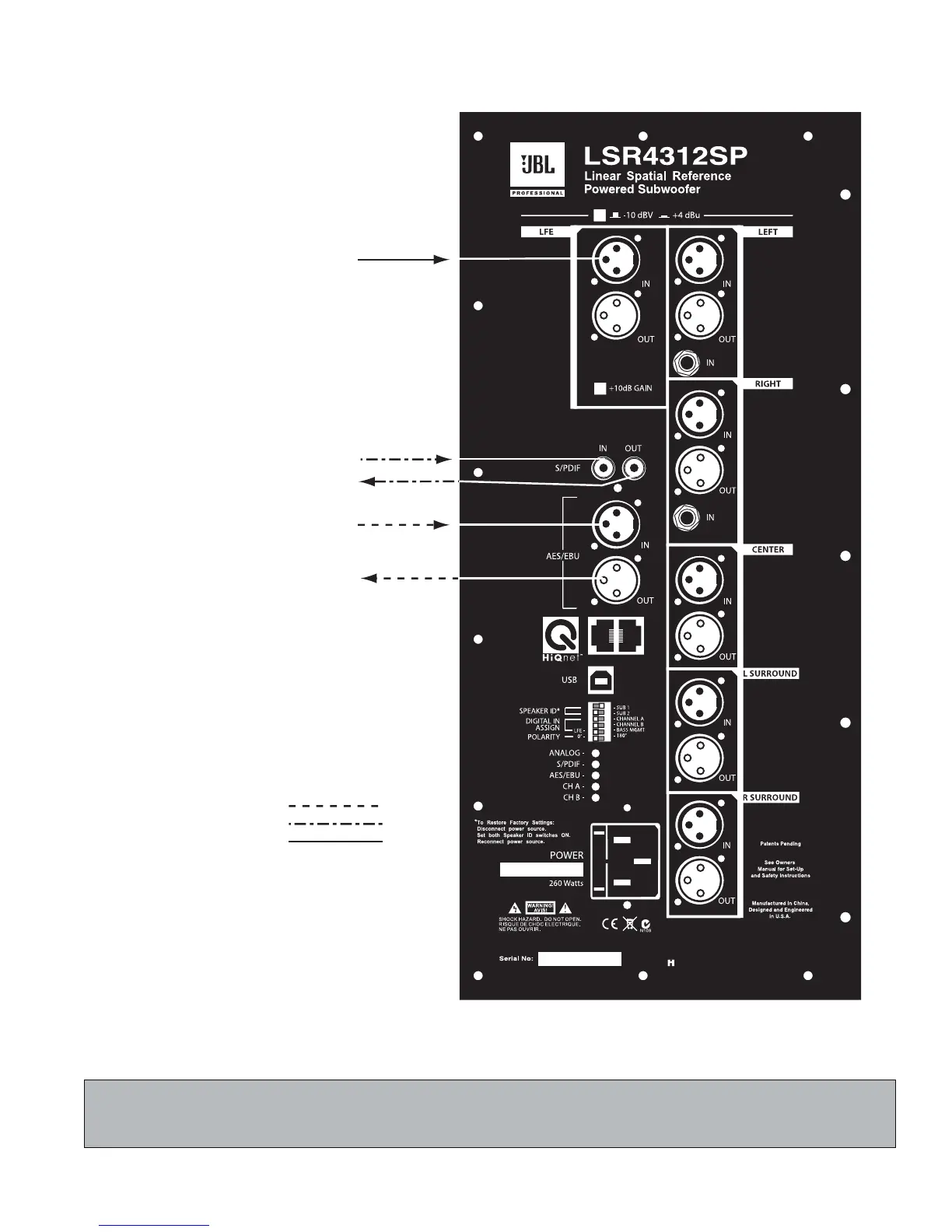

Interconnections for adding a second LSR4312SP to a non bass-managed 5.1 setup
Appendix B: Using Two LSR4312SP Subwoofers
X Note: To use digital inputs in a 5.1 multichannel system, DIP switch #5 should be set to LFE. The LFE Filter
should be set to NONE. Multi-Channel/Bass Management using the LSR4312SP digital inputs requires an external
bass management processor.
