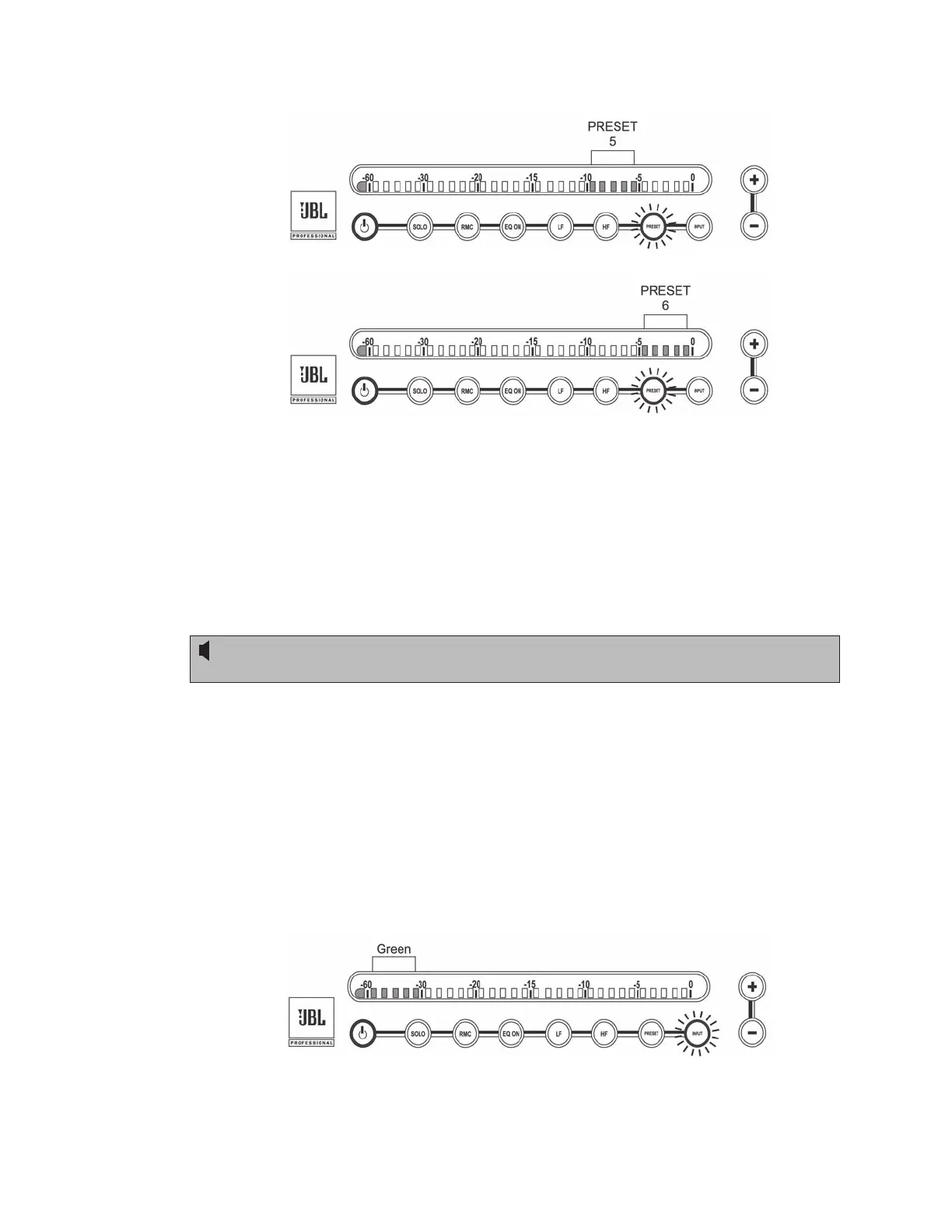

When a preset is selected, the LF and HF buttons will illuminate to indicate whether the

currently selected preset has LF and/or HF boost or cut. The preset becomes active when

the PRESET button stops ﬂashing (after approximately 3 seconds). If no preset is selected

during that time (that is, the +/- buttons have not been pressed), or if you select Preset 0,

or if you press the PRESET button a second time, the system will return to its current

settings. For more information, see page 28 in this manual. A complete listing of factory

preset parameters can be found in Appendix A.

A preset can be deactivated by pressing the EQ ON button until the light goes out, or by

manually setting both the LF and HF values to 0 dB.

10. INPUT (Input Select) – Allows you to listen to any of three connected signal sources

(analog, S/PDIF digital or AES/EBU digital). To select an input source, press the

INPUT button. It will ﬂash and the meter display will conﬁrm the currently selected input

source. In addition, incoming signal will temporarily be muted. While the INPUT button

is ﬂashing (for approximately 3 seconds), you can use the +/- buttons to change the input

source. The newly selected input source will then be conﬁrmed on the meter display, and

after a brief pause, the input signal will resume. To maintain the same input source and

cancel the operation, either press the INPUT button a second time or wait for the 3-second

“time-out” to end without pressing the +/- buttons.

Analog input selected

Reference - Front Panel

JBL LSR4328P User Manual
