22

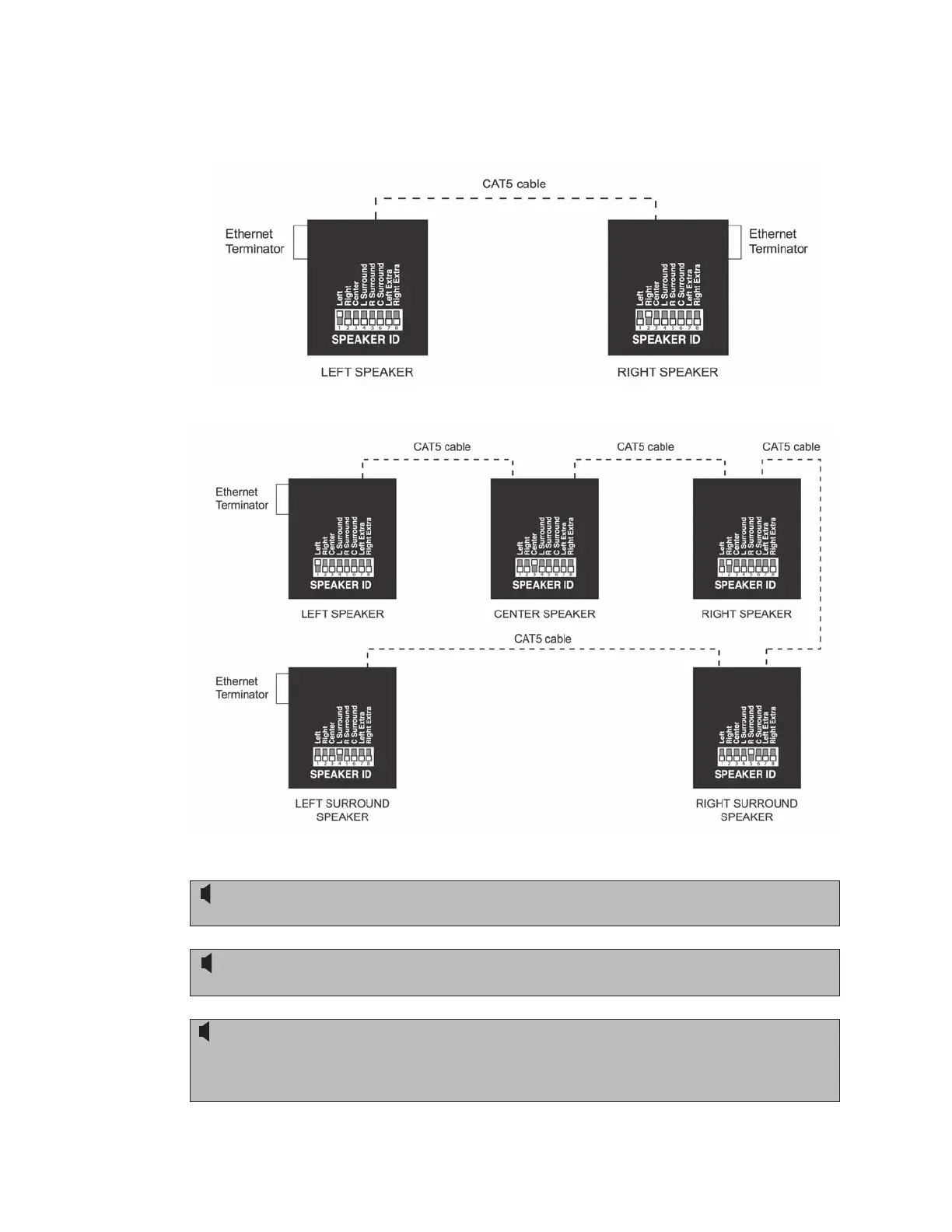

The illustrations below show typical network interconnections for both stereo and surround
sound use.
Networking interconnections and DIP switch settings for stereo use
Networking interconnections and DIP switch settings for surround use
At least one LSR4300 monitor in a networked system must have its LEFT DIP switch
set to ON.
When using only a single speaker, set the LEFT DIP switch to ON, regardless of the
speaker’s physical position in the room.
If required, LSR4300 monitors can be used without being networked together (i.e.,
without any CAT5 cable interconnections). In this case, the LEFT DIP switch in every
speaker must be set to the ON position and all other DIP switches in every speaker must
be in the OFF position.
Reference - AC Power Connections/Network
Connections and DIP Switch Settings
