JBL Performance Series PT800 User Manual

13

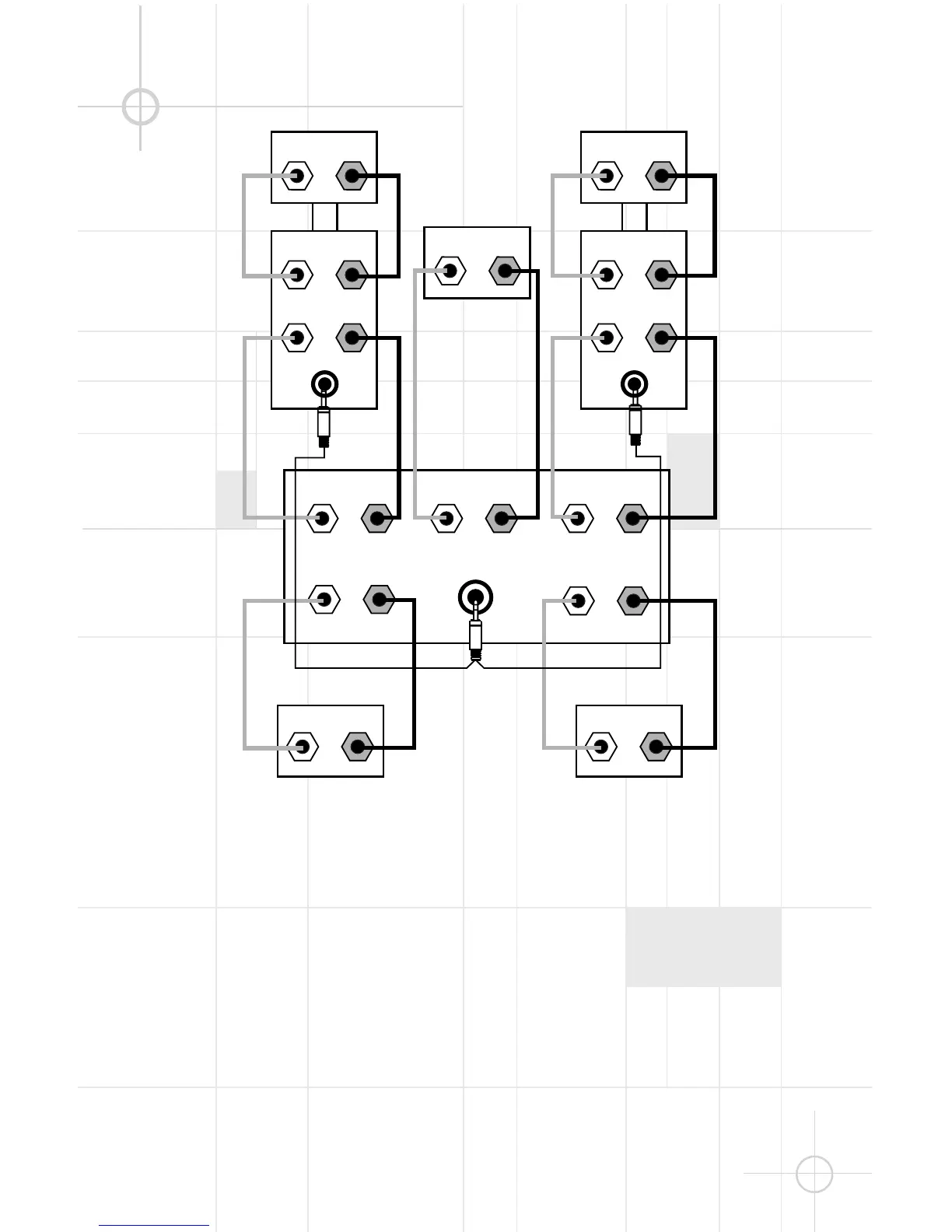

Left Surround
– +– +
– +
– +
– +
– +
– +
Right Surround
Right Tower
Right Sub
– +
– +
– +
– +
– +
– +
– +
Left Tower
Center
Left Sub
Subwoofer/LFE
LFE Input LFE Input
Y-Connector
not included
Receiver
Note: You may, if desired, use stacked PS1400 and PT800 modules in the surround
speaker positions. These should be wired using the same speaker-level
connections as shown above for the front speakers but without using the
subwoofer/LFE connections. If you choose this configuration, change the setting
on your receiver/processor for the rear channels from “Small” to “Large”.

JBL Performance Series PT800 Specifications

General

Brand	JBL
Model	Performance Series PT800
Category	Speaker System
Language	English
