APPLICATION EXAMPLES

PRX615M

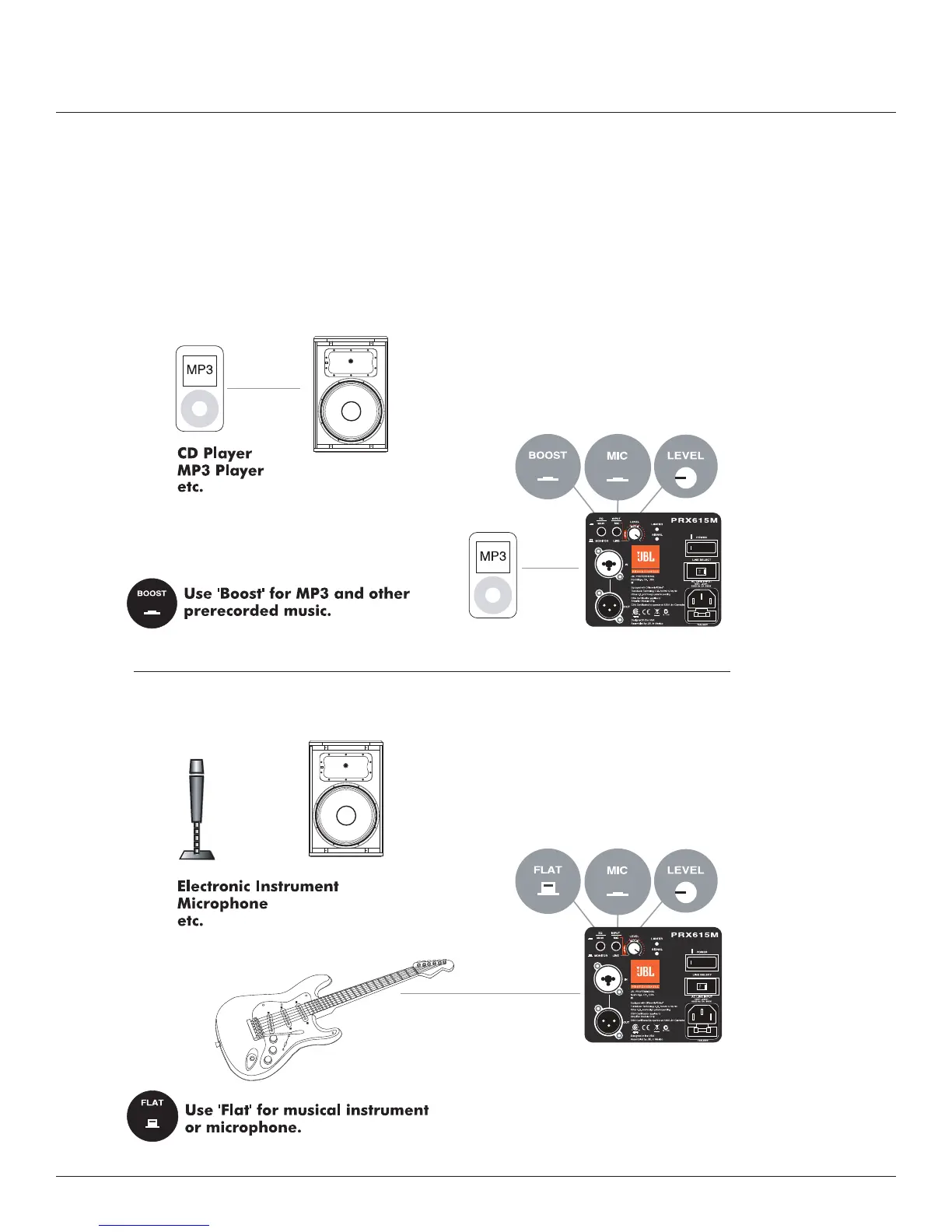

Basic Sound Reinforcement System

This is a very basic sound system. PRX600 series speakers allow the direct connection of sound sources,

without the need for extra mixer or pre-amplifier. The XLR or 1/4 inch input jack provides versatility and cabling

options and the mic/line input sensitivity selector switch optimizes the speaker gain for the input source.

Additional speakers may be connected (daisy chained together) in mono mode.

Questions and Answers:

Need help?

Do you have a question about the JBL PRX612M and is the answer not in the manual?

JBL PRX612M Specifications

General

Power Rating	1000W Peak
Coverage Pattern	90° x 50°
Input Impedance	20k ohms (balanced), 10k ohms (unbalanced)
Finish	Obsidian DuraFlex™ finish
Maximum SPL	134 dB
Weight	42 lbs (19.1 kg)
System Type	2-way, bass-reflex
LF Driver	12" (300mm) woofer
HF Driver	1.5" (38mm) neodymium compression driver
Amplifier Power Rating	1000 W (2 x 500 W)
Enclosure	plywood
Suspension / Mounting	M10 suspension points
Transport	Ergonomic handles
Grille	Powder-coated steel
