Remove the Rubber Plugs.
Remove the Rubber Plugs.
Tighten the 2 X M5 Mounting Screws (included)
on the soundbar.

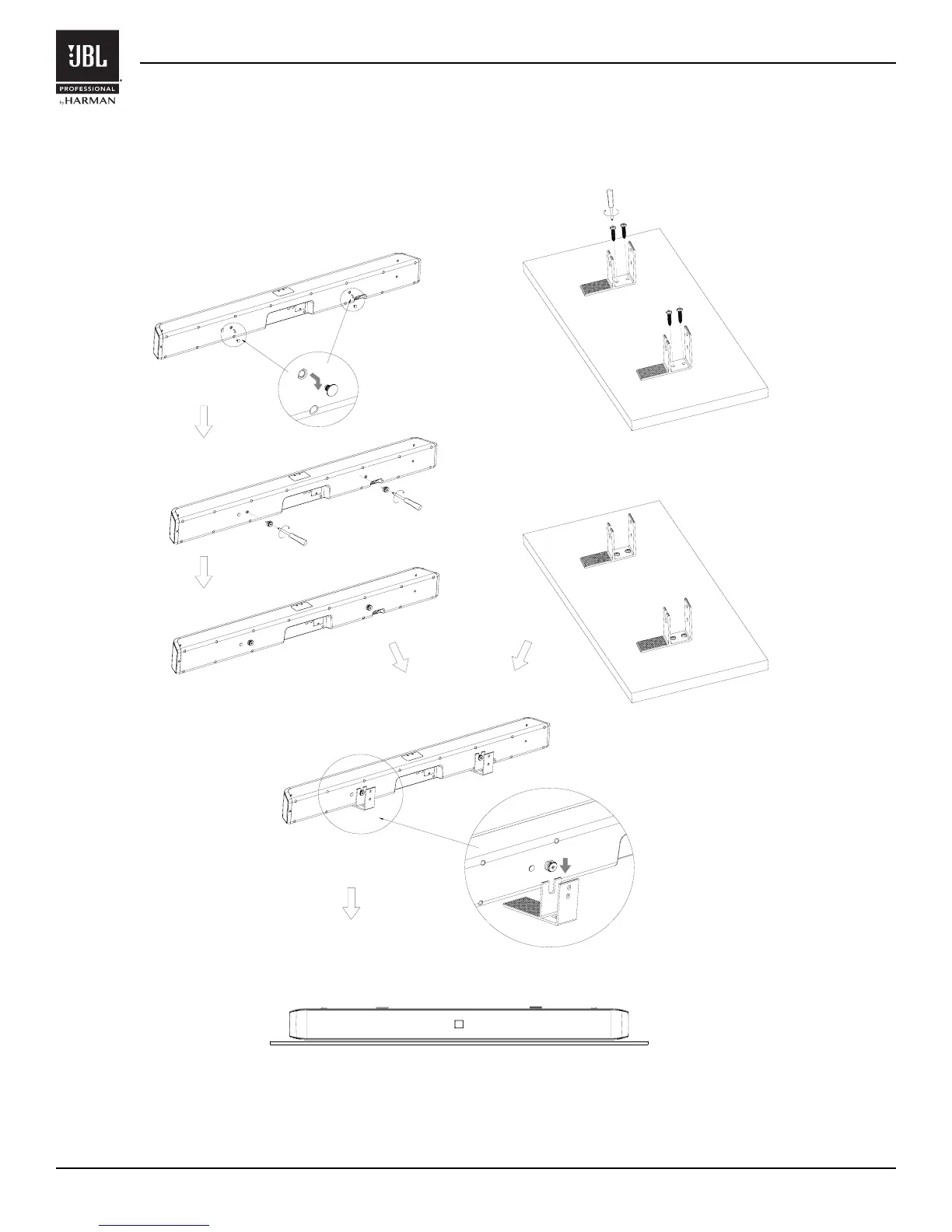

Wall Mount Procedure
Tighten the bracket on the wall using 4 X M4 screws (the
distance between two brackets should be 406mm (16 inches)).
There is a gap in the rubber surrounding the screws.
Ensure this gap is facing upwards, and then slide the
secured Mounting Screws onto the Mounting Brackets.
NOTE: For further security, an optional security strap can be attached to the soundbar.
Table Mount Procedure
Tighten the bracket on the table
using 4 X M4 screws (the distance
between two brackets should be
406mm (16 inches)).
Tighten the 2 X M5 Mounting Screws (included)
on the soundbar.
There is a gap in the rubber surrounding the screws.
Ensure this gap is facing upwards, and then slide the
secured Mounting Screws onto the Mounting Brackets.
