JBL PSW-D110 - AMPLIFIER EXPLODED VIEW

18
Amplifier/Subwoofer PSW-D110/DPS-10
AMPLIFIER EXPLODED VEIW
E
E
D
D
C
C
B
B
A
A
7
7
6
6
5
5
4
4
3
3
2
2
1
1
PSW-D110/DPS-10
(DPS-10 shown here)

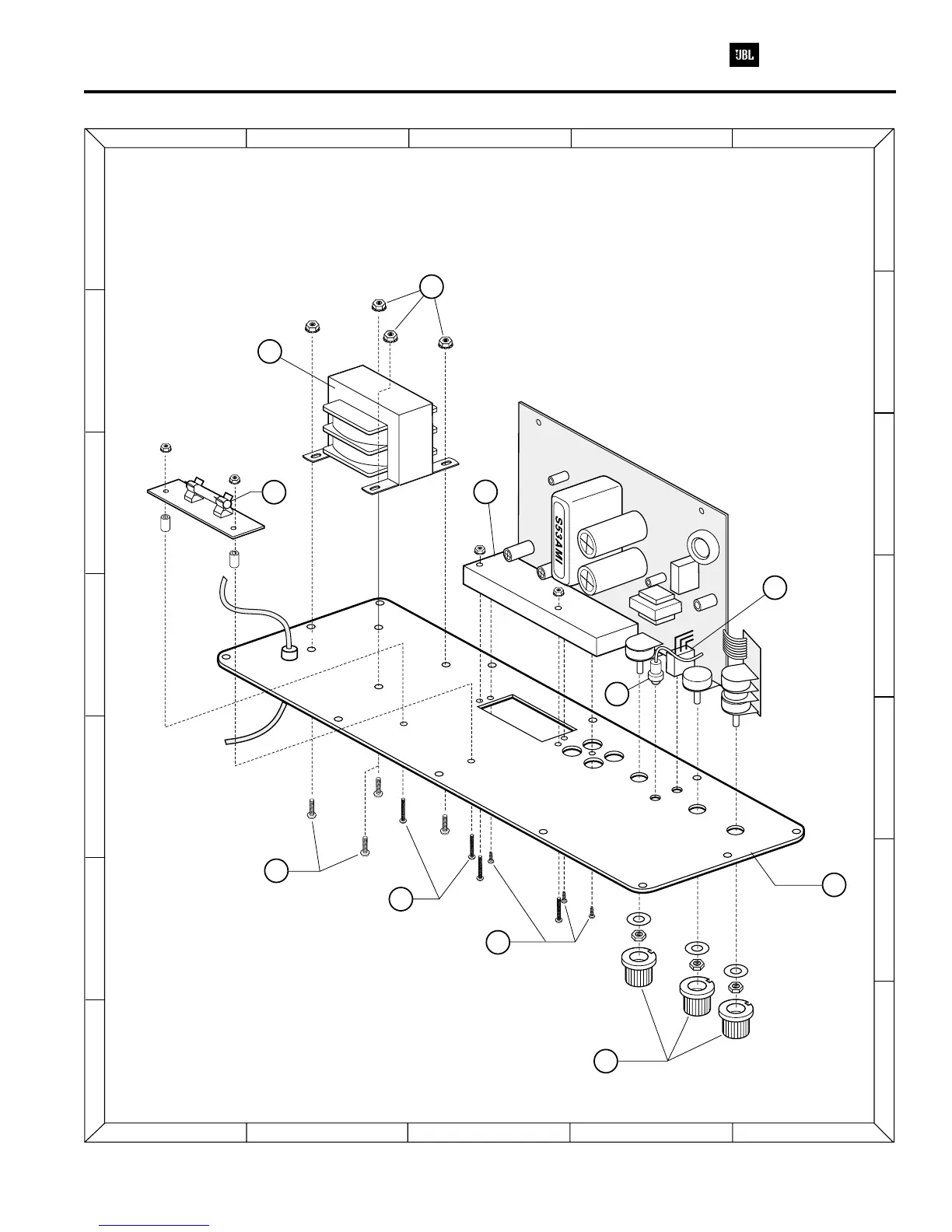

Amplifier Assembly
Exploded View
8
3
10
11
7
6
1
9
5
4
2
