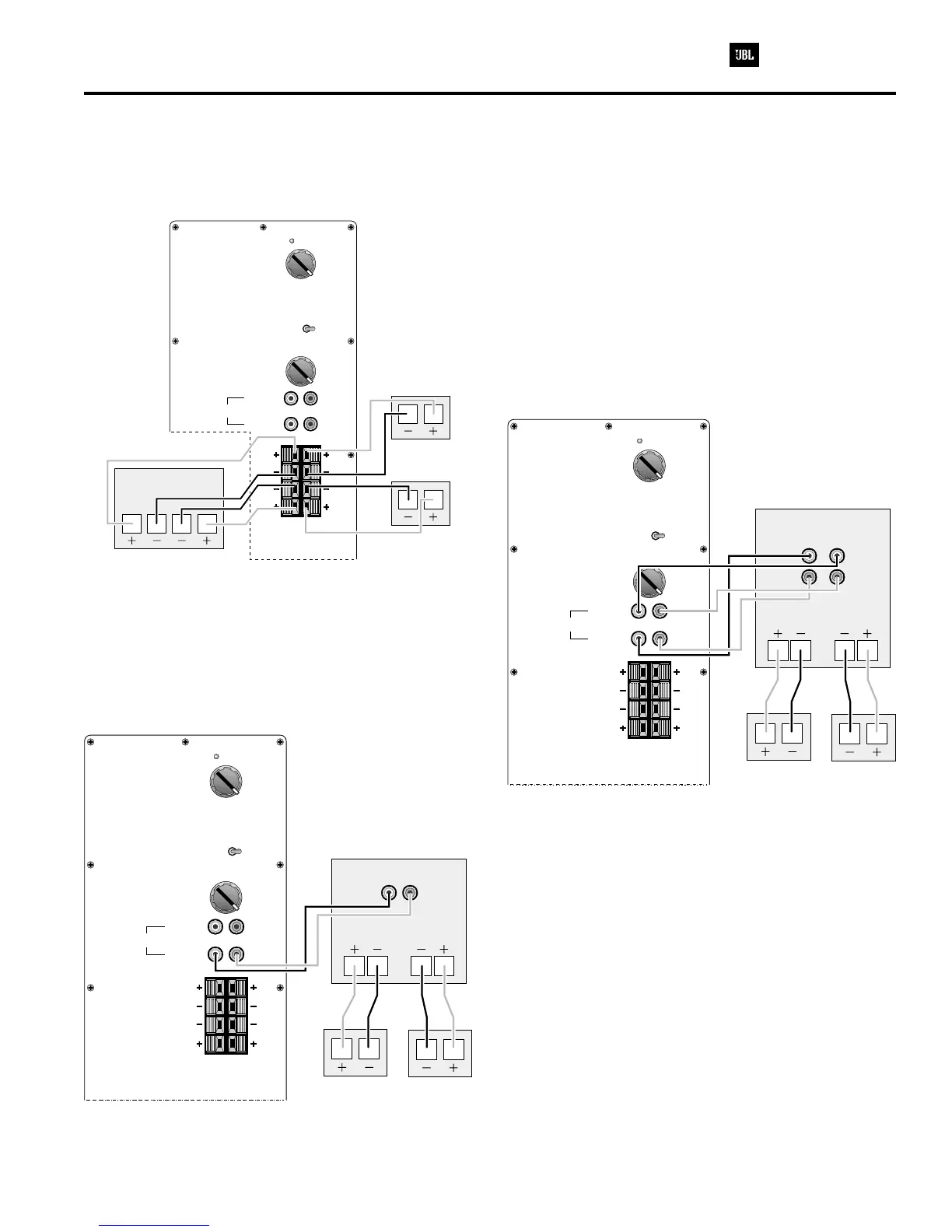

SPEAKER CONNECTIONS
1) If your receiver/amplifier has no subwoofer outputs or
preamp outputs for the left and right channels. See Figure 1.
2) If your receiver/amplifier has subwoofer outputs or
preamp output jacks for the left and right channels. See
Figure 2.
Note: Some receivers/amplifiers have a single (mono)
subwoofer output. In this case, it is recommended that you
use a “Y”-connector (not included) to maximize the
subwoofer’s performance.
3) If your receiver/amplifier has preamp output jacks and
main input jacks for the left and right channels or you have a
separate pre-amp/ processor and power amplifier. See
Figure 3.
This method of hookup can offer the highest level of
performance for your complete loudspeaker system. The
PSW-D110/DPS-10 incorporates a variable high-pass
crossover in addition to a variable low-pass crossover.
When hooked up as shown above, the subwoofer will limit
the low-frequency information that is returned to your
receiver/amplifier. Your receiver/amplifier does not need to
waste valuable power reproducing the low frequencies. In
addition, since no low-frequency information is being sent to
your main loudspeakers, they are able to reproduce mid and
high frequencies with greater clarity
8
Amplifier/Subwoofer PSW-D110/DPS-10
RR
LL
SPKR
IN
SPKR
OUT
60
90
150
180
120
60
90
150
180
120
RL
Power
Line
High Pass
Output
Input
180
o
0
o
Phase
High
Pass
Low
Pass
LEFT
SPEAKER
RIGHT
SPEAKER
SPEAKER OUTPUT
LEFT
RIGHT
RECEIVER/AMPLIFIER
Figure 1
Figure 2
RR
LL
SPKR
IN
SPKR
OUT
60
90
150
180
120
60
90
150
180
120
RL
Power
Line
High Pass
Output
Input
180
o
0
o
Phase
High
Pass
Low
Pass
RIGHT
LOUDSPEAKER
LEFT
LOUDSPEAKER
MAIN SPEAKER OUTPUT
SUBWOOFER OUT
LEFT
LEFT
RIGHT
RIGHT
RECEIVER/AMPLIFIER
Figure 3
RR
LL
SPKR
IN
SPKR
OUT
60
90
150
180
120
60
90
150
180
120
RL
Power
Line
High Pass
Output
Input
180
o
0
o
Phase
High
Pass
Low
Pass
RIGHT
LOUDSPEAKER
LEFT
LOUDSPEAKER
MAIN SPEAKER OUTPUT
LEFT
RIGHT
RIGHT
LEFT
RECEIVER/AMPLIFIER
PRE
OUT
MAIN
IN
NOTE: The rear plate for the PSW-D110 is shown, which has the level control on the front panel. The DPS-10 has this
level control on the rear panel (amplifier)
