Please visit jblpro.com/SRX800 for complete documentation.
JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 USA © 2015 Harman International Industries, Incorporated
PART NUMBER: 5056240
PLUG IN THE INPUTS
1. The Master Level defaults to 0dB. It’s a
good idea to turn the Master all the way
down before plugging in.
2. Connect XLR or TRS Cable from audio
source to CH1 and/or CH2 Inputs.
SET OUTPUT LEVEL
1. Turn the input source level up to at the
source until its reached the desired level.
You can view input meters by accessing the
Input Level screen in the menu by pressing
the Master Encoder and selecting it from
the list.
2. Once the input(s) has reached the desired
level, turn the Master Enocder until the
desired output volume is reached.
POWER IT ON
1. Connect the supplied power cord to the Blue
IEC inlet on the rear of the speaker
2. Connect the power cord to an available
power outlet. Once the power cord is plugged
into the power source, the Green Power LED
will illuminate.
3. Once the Green Power LED illuminates, press
the Power Button. After several seconds,
you will notice the LCD Screen boot and you
will now be on the main screen.

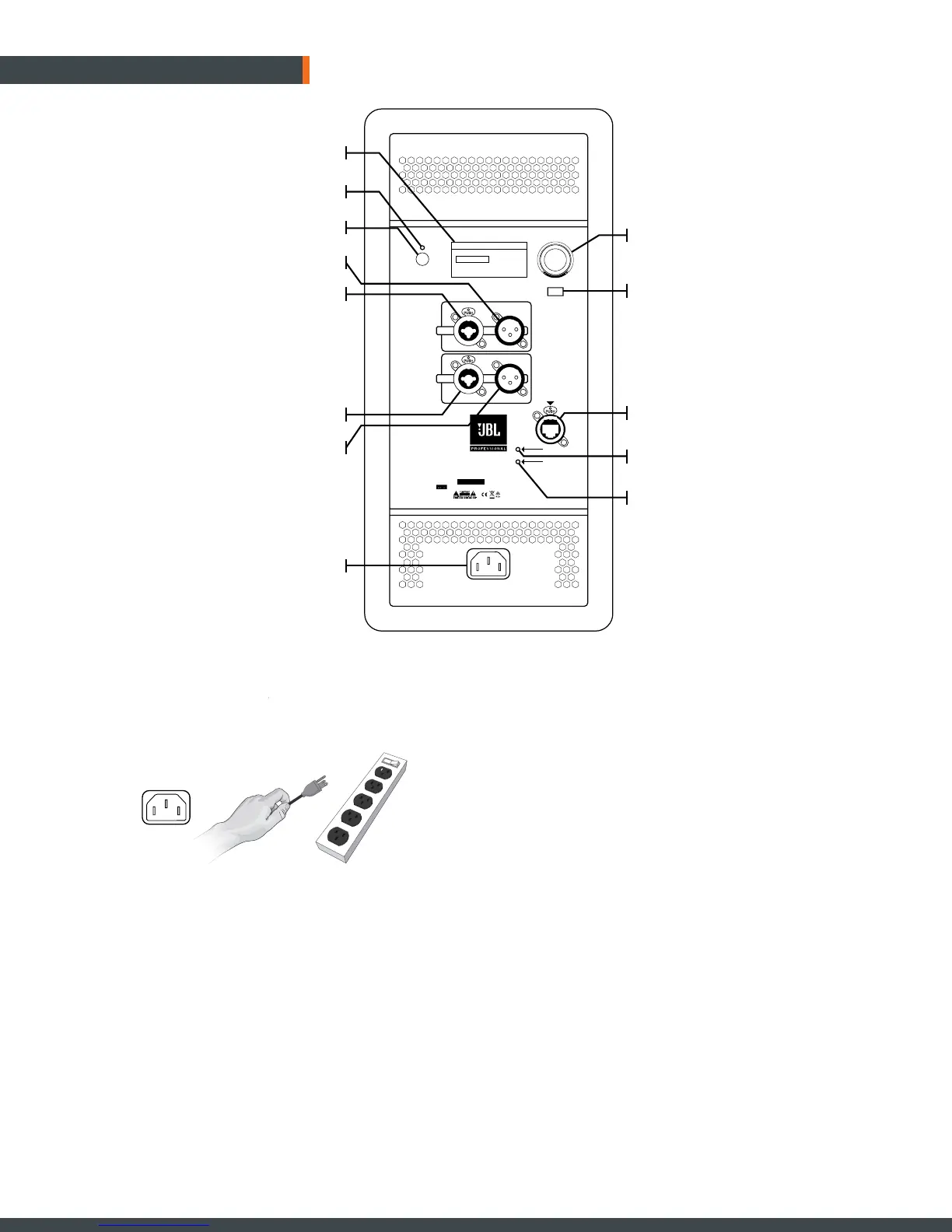

BACK PANEL
OUTIN
CH
2
CH
1
OUT
NETWORK
LINK
MASTER LEVEL
BACK
POWER
DATA
IN
A HARMAN INTERNATIONAL COMPANY
DESIGNED AND ENGINEERED IN THE USA
MADE IN MEXICO
SERIAL NO. JBL PROFESSIONAL NORTHRIDGE, CA USA
MAIN MENU
PRESET
AUTO DIM
AUTO SLEEP
METERS
? FILTERS
ON
OFF
Power Button
CH1 Direct Out
CH2 Direct Out
CH1 Input
CH2 Input
Locking IED Inlet
Power LED
LCD Screen
Master Encoder
Back Button
Ethercon Connector
Data LED
Link LED
