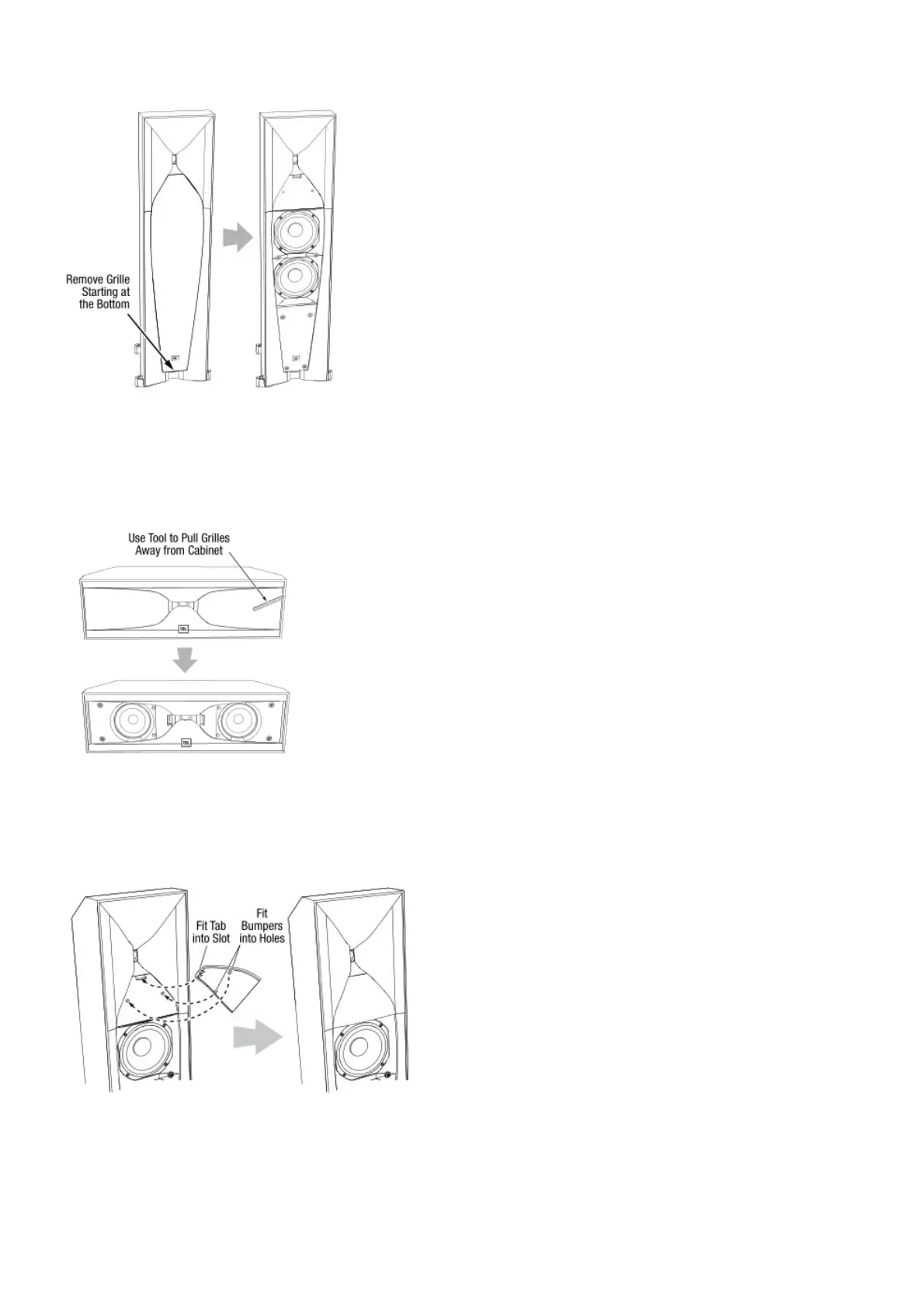

You can remove the Studio 5 speaker grilles by pulling them away from the enclosure, starting at the
bottom.
Removing Studio 520C Grilles
To remove the Studio 520C grilles, use the provided grille removal tool to pull the grilles away from the
enclosure as shown, then remove them the rest of the way by hand.
Attaching the Horn Covers
If you remove the speakers’ grilles, attach the provided horn covers as shown. Make sure that both
rubber bumpers on the horn cover fit into the holes in the speaker.
Connections
Caution: make sure that all of the system’s electrical components are turned off (and preferably
unplugged from their AC outlets) before making any connections.
Speakers and amplifiers have corresponding positive and negative (“+” and “–”) connectors. All Studio
