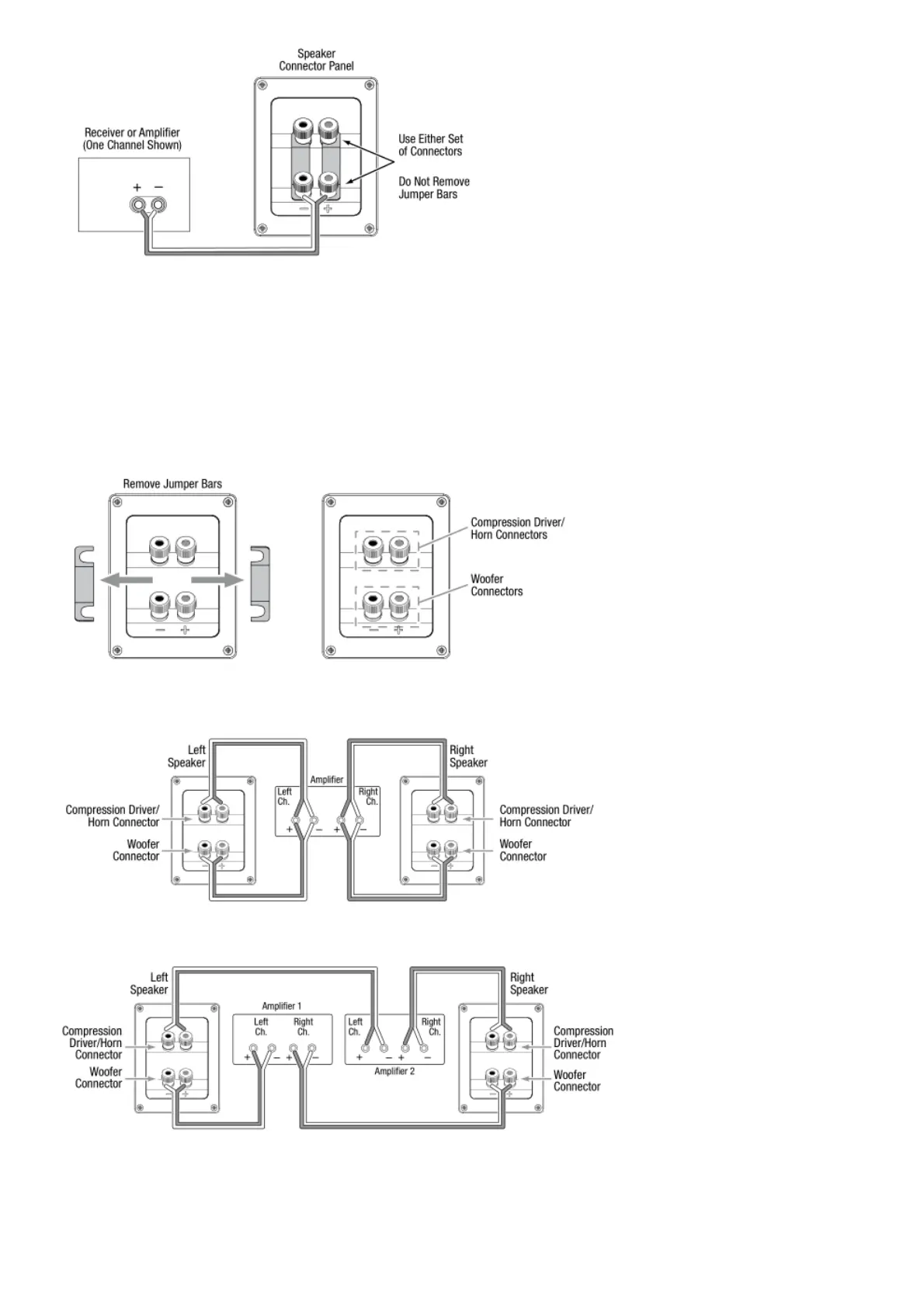

JBL Studio 5 Series - Basic Single-Wire Connection

Bi-Wire Connection
All Studio 5 series speaker connector panels have two sets of input connectors that are joined by metal
jumper bars. The upper set of connectors is for the compression-driver/horn assembly, and the lower
set of connectors is for the woofer(s). This arrangement allows you to bi-wire the speakers using a
single stereo amplifier or using two stereo amplifiers. Bi-wiring can offer performance advantages and
more flexibility in power-amplifier selection over a conventional single-wire connection.
Before bi-wiring the speakers, remove the jumper bars.
SINGLE-AMPLIFIER Bi-Wiring
Dual-Amplifier Bi-Wiring
For more information about various speaker-wire and connection options, contact your local JBL
dealer.
Using the Port tube inserts (all Models except studio 520C)
