INTRODUCTION TO THE VRX932LA
The VRX932LA is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures.
Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that
multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array
will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means
of the Array Configuration Selector (ACS), a feature that provides amplitude shading (see page 8 & 9) when the
system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array
frame provide for a variety of mounting and suspension options.
*NOTE: The VRX932LA-WH is designed for fixed install situations where white loudspeakers are required to
match existing decor. White versions therefore do not have handles, feet or pole mount features.
3
343 mm
13.5 in
376 mm
14.8 in
597 mm
23.5 in
1325 mm
5
2.2 in
1
5º
VRX932LA
D
imensional Drawings
11/18/04
JBL PROFESSIONAL
Northridge, CA USA
Made in USA
Serial No.
BI-AMP
PASSIVE
PARALLEL
VRX932LA
BI-AMP
±1 LF: 8
±2 HF: 6
W
W
PASSIVE
±1 IN: 6
±2 N/C
W
Single
Speaker
or
Short
Throw
Mid
Throw
Long
Throw
Array Configuration Selector - HF Output Level
Equipped with Differential DriveÆ
T
ransducer Technology U.S. PATENT 5,748,760

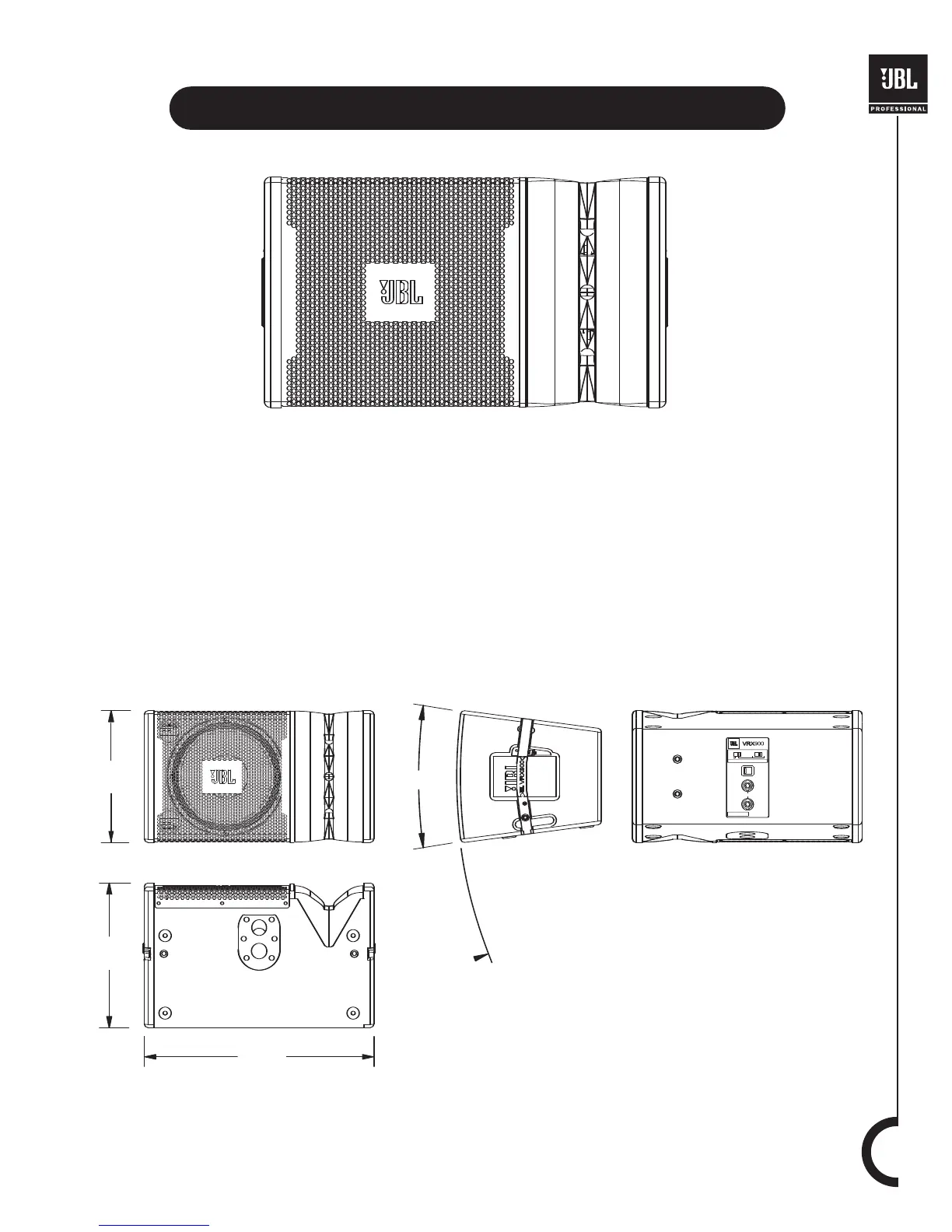

Dimensional Drawings for VRX932LA
343 mm
13.5 in
376 mm
14.8 in
597 mm
23.5 in
1325 mm
52.2 in
15º
VRX932LA
Dimensional Drawings
11/18/04
JBL PROFESSIONAL
Northridge, CA USA
M
ade in USA
Serial No.
BI-AMP
PASSIVE
PARALLEL
VRX932LA
BI-AMP
±1 LF: 8
±2 HF: 6
W
W
PASSIVE
±1 IN: 6
±2 N/C
W
Single
Speaker
or
Short
Throw
Mid
Throw
Long
Throw
Array Configuration Selector - HF Output Level
Equipped with Differential DriveÆ
Transducer Technology U.S. PATENT 5,748,760
