SPECIFICATIONS
V
RX932LA - 12¨, two-way, line-array loudspeaker system
System Type: 12" two-way, line array loudspeaker system
Frequency Range (-10 dB) : 57 Hz - 20 kHz
F
requency Response (±3 dB) : 75 Hz - 20 kHz
C
overage Pattern: 100º x 15º nominal (horizontal x vertical)
C
rossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2 kHz
Power Rating Passive: 800 W / 1600 W / 3200 W
(Continuous / Program / Peak): Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
System Maximum SPL
: 130 dB SPL peak (passive)
LF: 130 dB
HF: 139 dB
System Sensitivity (1w @ 1m): 95 dB SPL (passive mode)
LF: 95 dB
HF: 114 dB
LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium-magnet and
dual voice-coils
HF Driver: 3 x JBL 2407J, 25.4 mm (1 in) voice-coil, neodymium magnet compression driver
Nominal Impedance: Passive: 8 ohm
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
Active Tunings: Tunings available at www.jblpro.com
Enclosure: 18 mm, 11-ply birch plywood.
Suspension / Mounting: Suspension requires optional VRX-AF line-array frame kit / Dual angle 35 mm pole socket /
10 mm eyebolt
Finish: Black DuraFlex™ finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Input Connectors: Neutrik ® Speakon® NL-4 (x2)
Dimensions (H x W x D): 349 mm x 597 mm x 381 mm (13.75 in x 23.5 in x 15.0 in)
Net W
eight:
21.8 kg (48 lb)
Optional Accessories: VRX-AF: Suspension array frame
SS2-BK: Tripod speaker stand
Eyebolt Kit Part # 229-00009-01
4

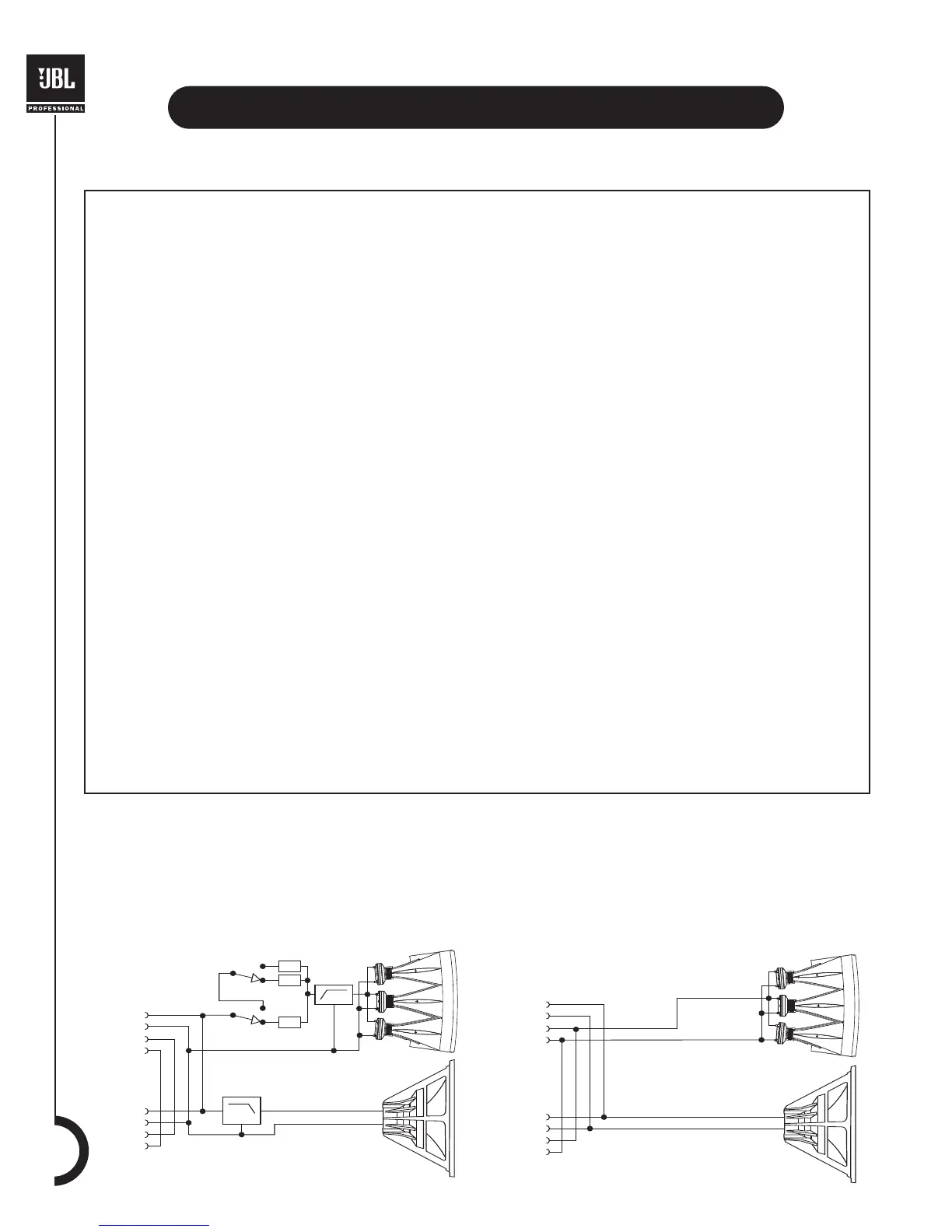

Functional Block Diagram
SHORT THROW
MID THROW
LONG THROW
1+
1-
2-
2+
1+
1-
2-
2+
1+
1-
2-
2+
1+
1-
2-
2+
NL4
INPUT
NL4
INPUT
HPF
LPF
PASSIVE
MODE
BI-AMP
MODE
-3 dB
0 dB
+3 dB
NL4
INPUT
NL4
INPUT
+
+
+
+
+
+
+
+
-
-
-
-
-
-
-
-
S
HORT THROW
MID THROW
L
ONG THROW
1
+
1-
2-
2+
1+
1-
2-
2+
1+
1-
2-
2+
1+
1-
2-
2+
NL4
I
NPUT
NL4
INPUT
HPF
LPF
PASSIVE
MODE
BI-AMP
MODE
-3 dB
0 dB
+3 dB
NL4
INPUT
NL4
INPUT
+
+
+
+
+
+
+
+
-
-
-
-
-
-
-
-
Dimensional Drawings for VRX918S
1
1
3
3
2
1. “Frequency Range” and “Frequency Response” are based on half-space conditions.
2. IEC filtered noise with 6 dB crest factor, 2 hours.
3. Calculated based on power rating and sensitivity
.
4. White version does not include pole mount feature.
5. White version uses JBL Pro White Duraflex Finish.
6. White version grille is powdercoated white with acoustically transparent white cloth backing.
4
5
6
