JBL VT4888DP-AN/CN/DA
JBL VT4888DP-AN/CN/DA

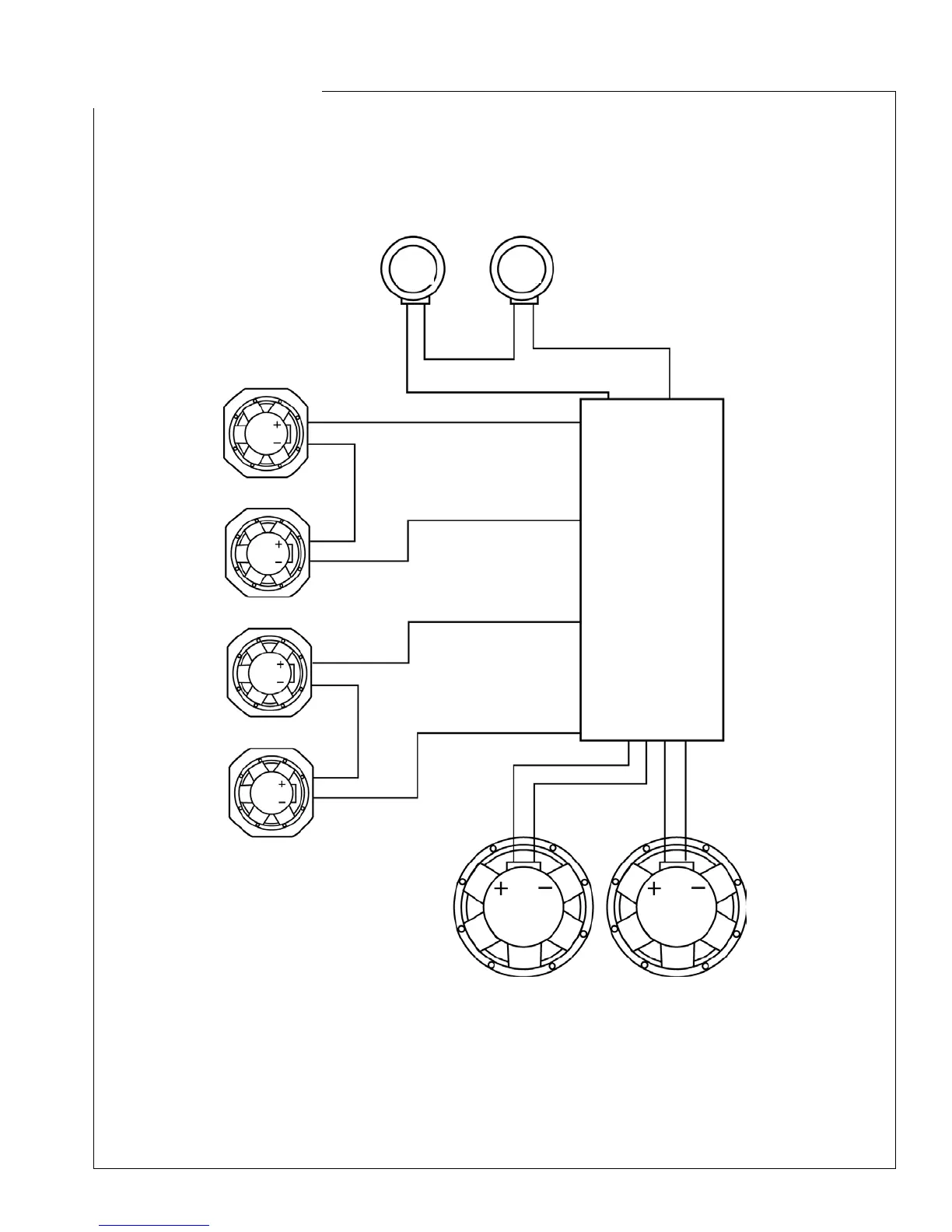

WIRING DIAGRAM
No. 1
No. 2
No. 1
No. 2
No. 3
No. 4
No. 1
No. 2
Input
Connector
Assembly
352817-001
Wire
Harness
350989-001
Driver, Low Freq (2)
2262H
(338312-001X)
Cone Repl
C8R2262
RED
BLACK
GREEN
GREEN/BLK
Driver, High Freq (2)
2431H
(339894-002X)
Diaph Repl
D8R2431
Driver, Mid Freq (4)
2106HPL
(339485-001X)
WHITE
WHITE
WHITE/BLACK
WHITE
WHITE
WHITE/BLACK
YELLOW/BLACK
YELLOW
YELLOW
+
+
