JBL VT4888DP-AN - Page 4

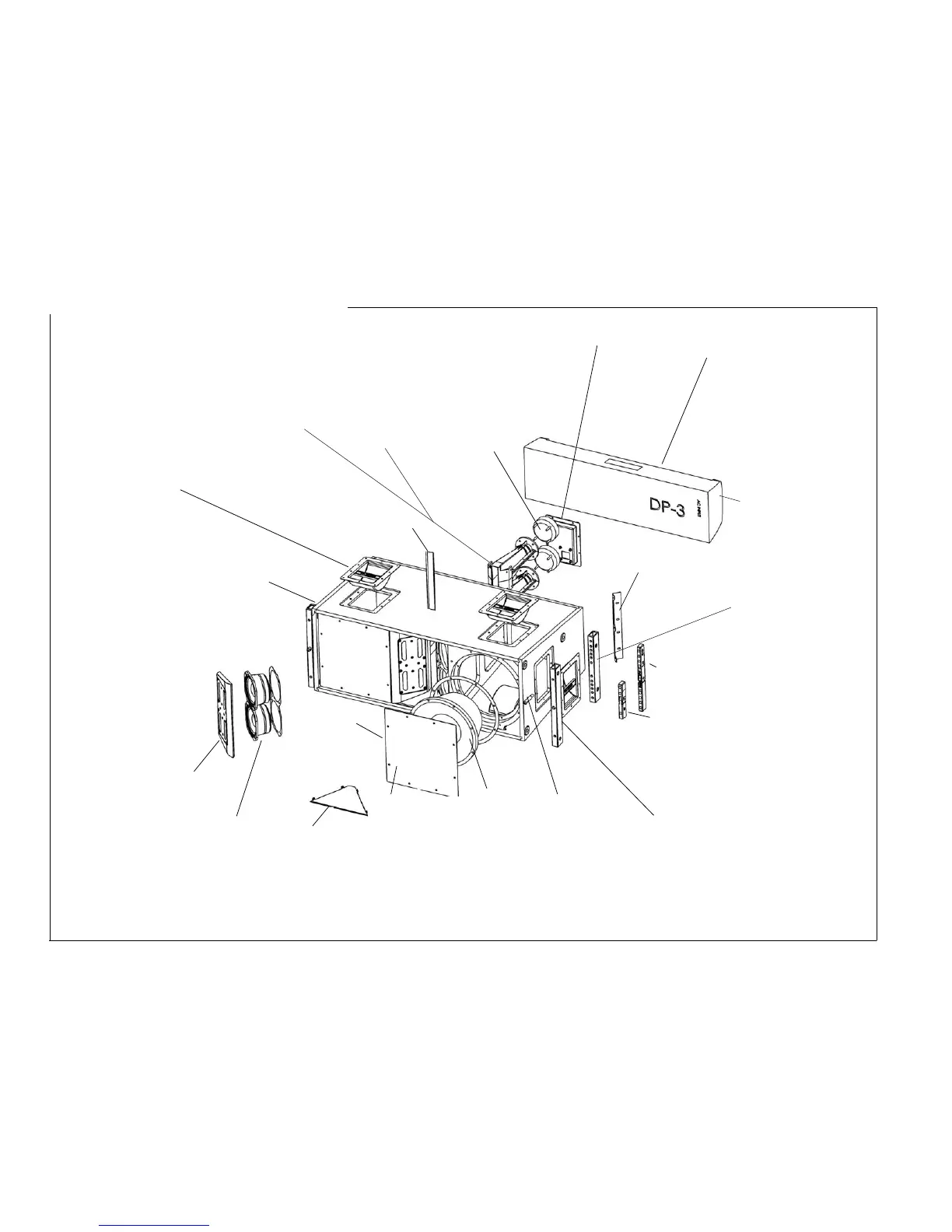

COMPONENT EXPLODED VIEW
RBI (2)
350779-001
Screw (16)
804-72110-24
SKT,TOR, BLK
ZINC, LCS
Driver, Mid Freq (4)
2106H
(339485-001X)
Gasket (2)
350819-001
Flare, HF (2)
351486-001
Screw (8)
881-11110-08
4 x 1/2
FLT,PH,PB,
BLK ZINC, LCS
Grille, Right
350780-001
Grille, Left
350780-002
Grille, Trim (2)
351526-001
Screw (16)
803-32011-04
8-32 x 1/4
TRUSS, TORX,
BLK ZINC, LCS
Standoff (16)
885-00082-01
8-32,
3/8 HEX X 1/4,SS
Driver, Low Freq (2)
2262H
(338312-001X)
Cone Repl
C8R2262
Screw (16)
804-72110-24
10-32 x 1 1/2
SKT, TOR,
BLK ZINC, LCS
Gasket (2)
339391-001
Dolly Lock Pin (2)
351797-002
2.98L
Nut (20
836-36110-00
3/8-24
NYLON, BLK ZINC,
LCS, RIGHT
Dolly Retainer Pin (2)
351696-001
Front Rigging Tube (2)
350572-002
Screw (8)
338885-001
1/4 x 1”
FLTHD,SCT GRD8,
PAT CH
Front Hinge Assembly (2)
364136-001
Slider Knob (2)
350839-001
10-32 x 5/8
PATCH
R.A.P
354965-001
Rear Hinge Assembly (2)
364137-001
Horn Bracket, HF (2)
350782-001
Screw (6)
804-11110-16
10-32 x 1,
FLT, PH, BLK
ZINC, LCS
Quick Release Pin (8)
361343-001
1.75” L
Rear Rigging Tube (2)
350573-002
Input Cup Assembly (1)
352817-001
Wire Harness
350989-001
Screw (8)
804-41110-20
10-32 x 1 1/4
PAN, PH, PB,
BLK ZINC, LCS
Driver, High Freq (2)
2431H
(339894-002X)
Diaph Repl
D8R2431
Screw (8)
705-90002-14
1/4-20 x 7/8
SCT SET,
CUP POINT
Nut (8)
834-30010-00
1/4-20
KEPS, BLK ZINC,
LCS, RIGHT
Horn (2)
337055-001
Gasket,Horn Side (2)
350841-001
Gasket,Horn (2)
Top/Bottom
351415-001
Gasket,HF Horn
359-00225-00
Bolt (8)
854-00003-08
1/4-20 x 1/2
HEX,CLK ZINC,
MCAS
Washer, Horn (8)
844-100100-06
1/4 x .06
EXTTH, REG, CLR
ZINC, CS
Washer, Horn (8)
844-01110-07
1/4,SAE, REG,
BLK ZINC,LCS
Grille, HF
350827-001
Hande (6)
923-00022-07
Gasket (6)
382-00337-00
Screw (24)
804-42110-12
10-32 x 3/4
PAN, TORX, BLK
ZINC, LCS
Screw (36)
884-42110-12
10 x 3/4
PAN,TORX,PB,
BLK ZINC, LCS
Rigging Bracket (16)
351922-001
Screw (16)
802-11010-10
6-32 x 5/8
FLT, PH, BLK
ZINC, LCS
Rigging Pad (8)
351001-001
1 1/4”
T-Nut (8)
352214-001
10-32 x 1/4
ZINC PLATED
72266
AHD, SICOMET 5181
Enclosure Assembly
C4888
(Available to VerTec
Dealers and Service
Centers)
Amplifier Assembly
354344-002X (DP)
354344-007X (AN)
354344-008X (CN)
354344-009X (DA)
Connect Assembly
352270-001
Wire Harness
352087-001
Input Cup
352271-001
Gasket
352818-001
JBL VT4888DP-AN/CN
JBL VT4888DP-AN/CN/DA
PLEASE see the next
page for the JBL PWA
individual part numbers
