MANUAL OF INSTRUCTIONS
EN
Designed to compress and decompress cars’ coil springs such as Audi, Jetta, Honqui, Santana, etc.
Safe, fast and easy to use.
MAIN SPECIFICATIONS
Maximum diameter of the spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mm
Maximum height of the spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mm
Product dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350x350x1100mm
Net weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35kgs

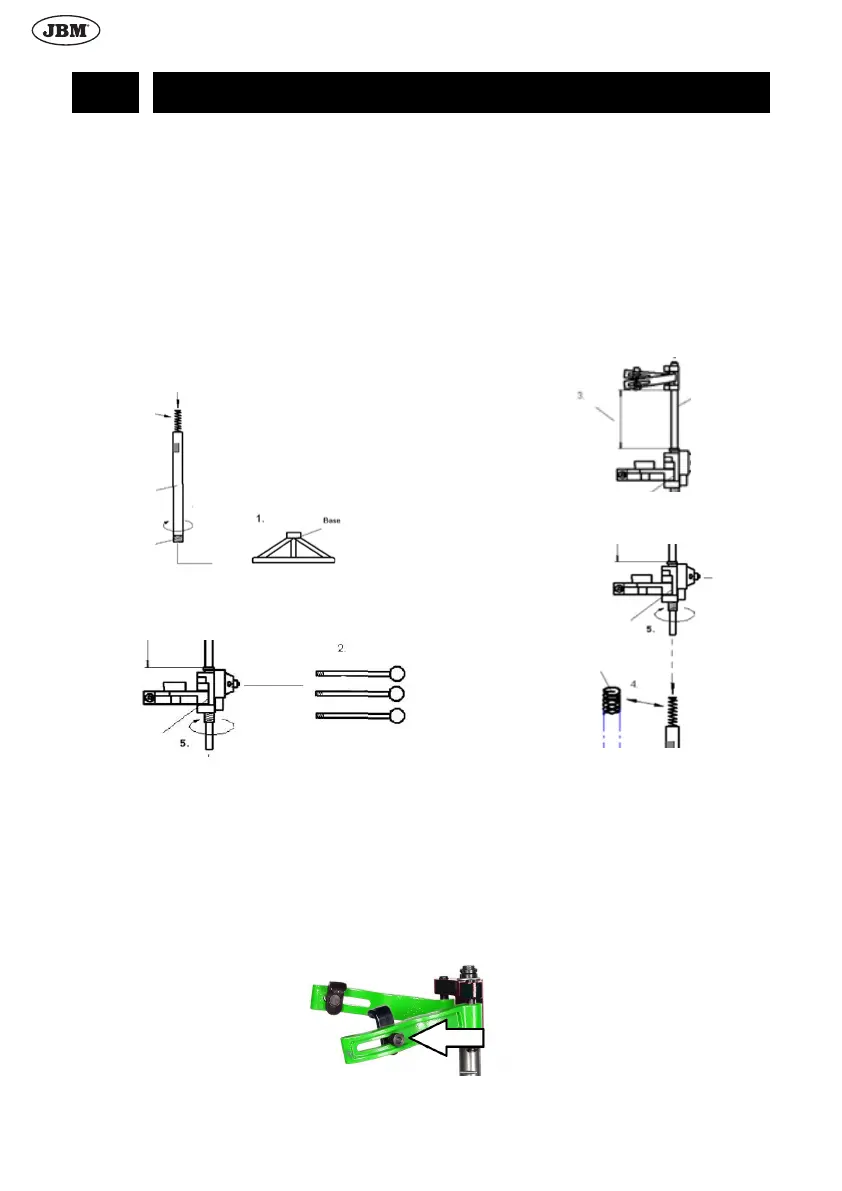

ASSEMBLY INSTRUCTIONS
1. Connect the cylinder to the spring base
and screw it clockwise.
2. Screw the three levers to the main body of
the compressor.
3. Raise the claws up to the maximum height
using the levers.
4. Check the spring is properly connected to
the tube, as shown in the picture below.
5. 5. To introduce the spring into the main
tube, you must press the top of the main
body downwards. Then, screw the main
body to the tube clockwise until both parts
t.
OPERATING INSTRUCTIONS
1. Unscrew the lock nuts of the claws (3) of the superior supporting arms (1), so that both arms
remain opened, leaving space to allocate the damper or absorber therein:
