Drive Head Maxtrac - Assembly (cont'd)

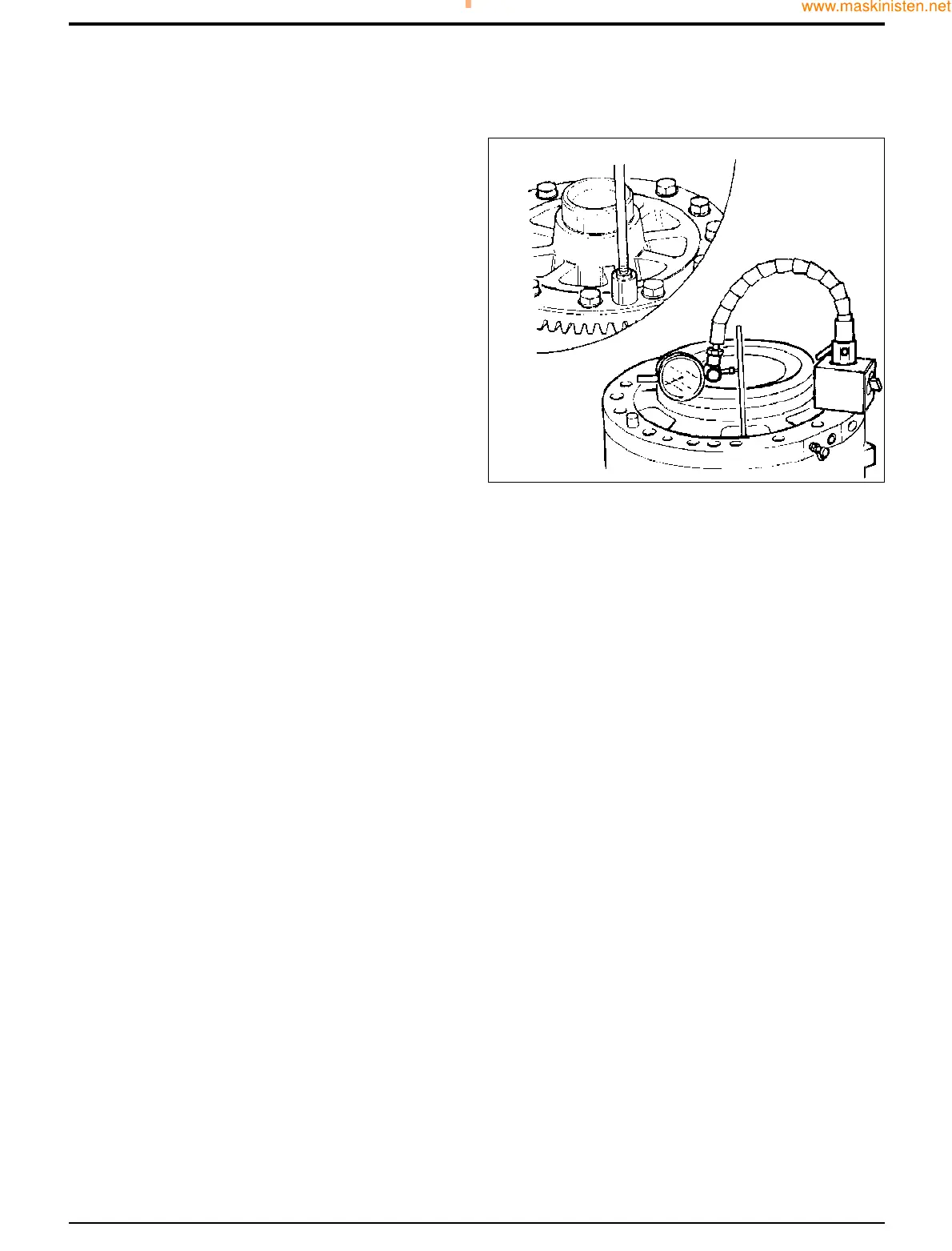

28 Measure the crownwheel backlash, which should be
0.17 - 0.28 mm (0.006 - 0.010 in). Adjust the differential
side nuts by equal amounts when altering backlash.
When backlash and preload are both correct, fit the
sidenut locking pins, see step 27.
29 Check tooth marking to verify crownwheel and pinion
are set correctly, refer to Crownwheel and Pinion
Meshing.
