62 - 2
Dismantling (Cont'd)

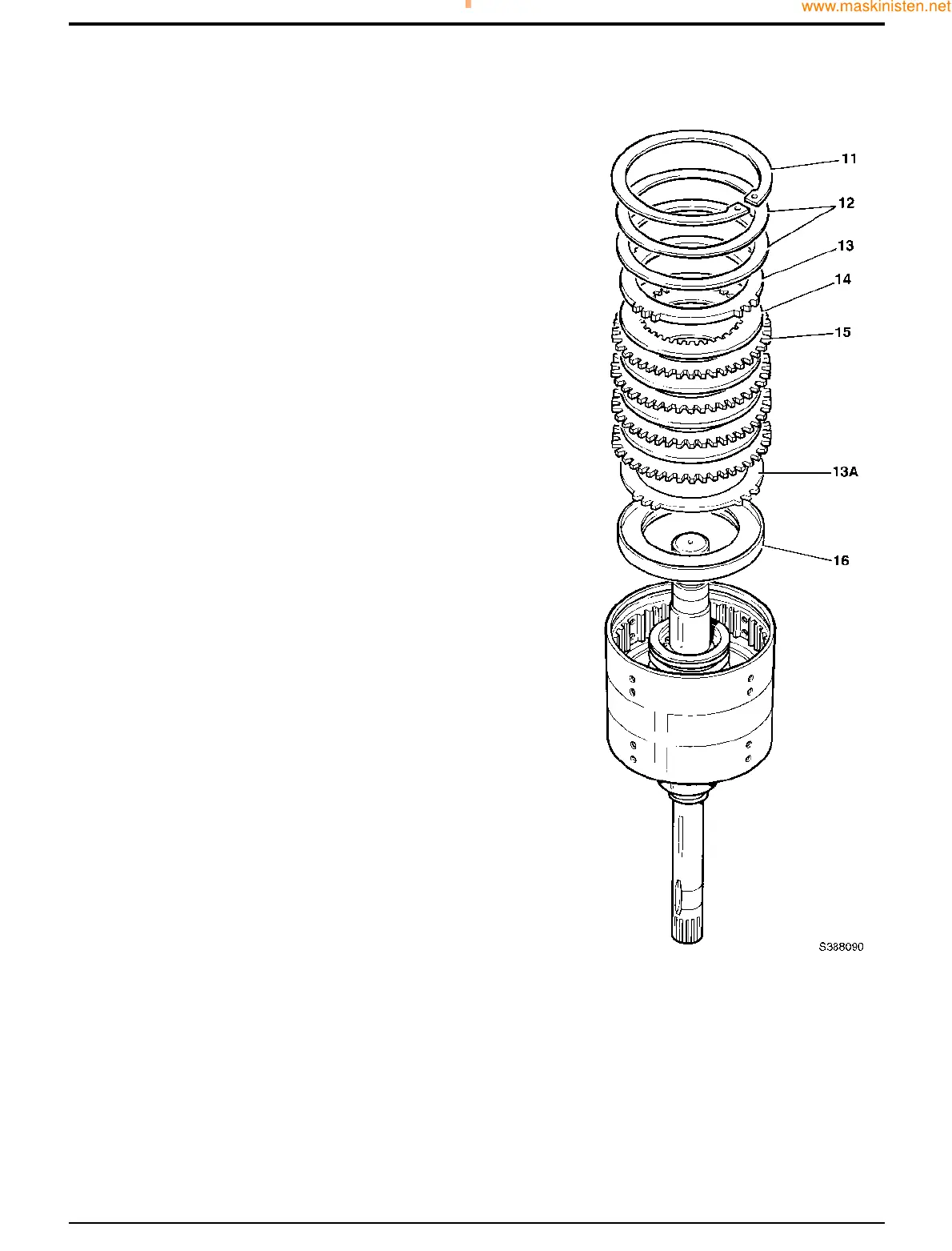

7 Remove the clutch friction/counter plate retaining
circlip 11.
8 Remove the thick pressure end plate (6mm thick) 13.
Note: If the reverser unit has been previously dismantled,
shims 12 may also be fitted.
9 Remove clutch friction plates 14 (4 off) and counter
plates 15 (4 off). Keep plates together in sets, DO NOT
mix with those from other clutches.
10 Remove the thin pressure plate (4mm thick) 13A.
11 Remove the disc spring assembly 16.
Section F Transmission
9803/7130
Section F
62 - 2
Issue 1
Reverser Unit
