6 | P l e a s e s e e o p e r a t o r m a n u a l f o r f u l l d e t a i l s .
Carry out the following procedure when lifting a machine:
1. Remove all attachments
2. Remove all loose equipment from machine exterior
3. Check the unladen weight of the machine
4. Attach lifting equipment to each end of the dozer blade. Correct lift-point positions are
identified on the machine by a label.
5. Attach lifting equipment to each end of the boom. Correct lift-point positions are
identified on the machine by a label.
6. Position the dig end as shown below.
6.1. Boom in centre position and ram fully extended.
6.2. Dozer ram fully raised.
6.3. Dipper ram fully extended.
7. Maintain correct angle between the boom and dozer blade.
8. Check that the lifting eye is positioned directly above the machine centre of gravity.
Item
35Z/36C
A
Boom lift point
B
Dozer blade lift point
C
38°
D
2148mm
E
4653mm
F
875mm
G
764mm
H
880mm

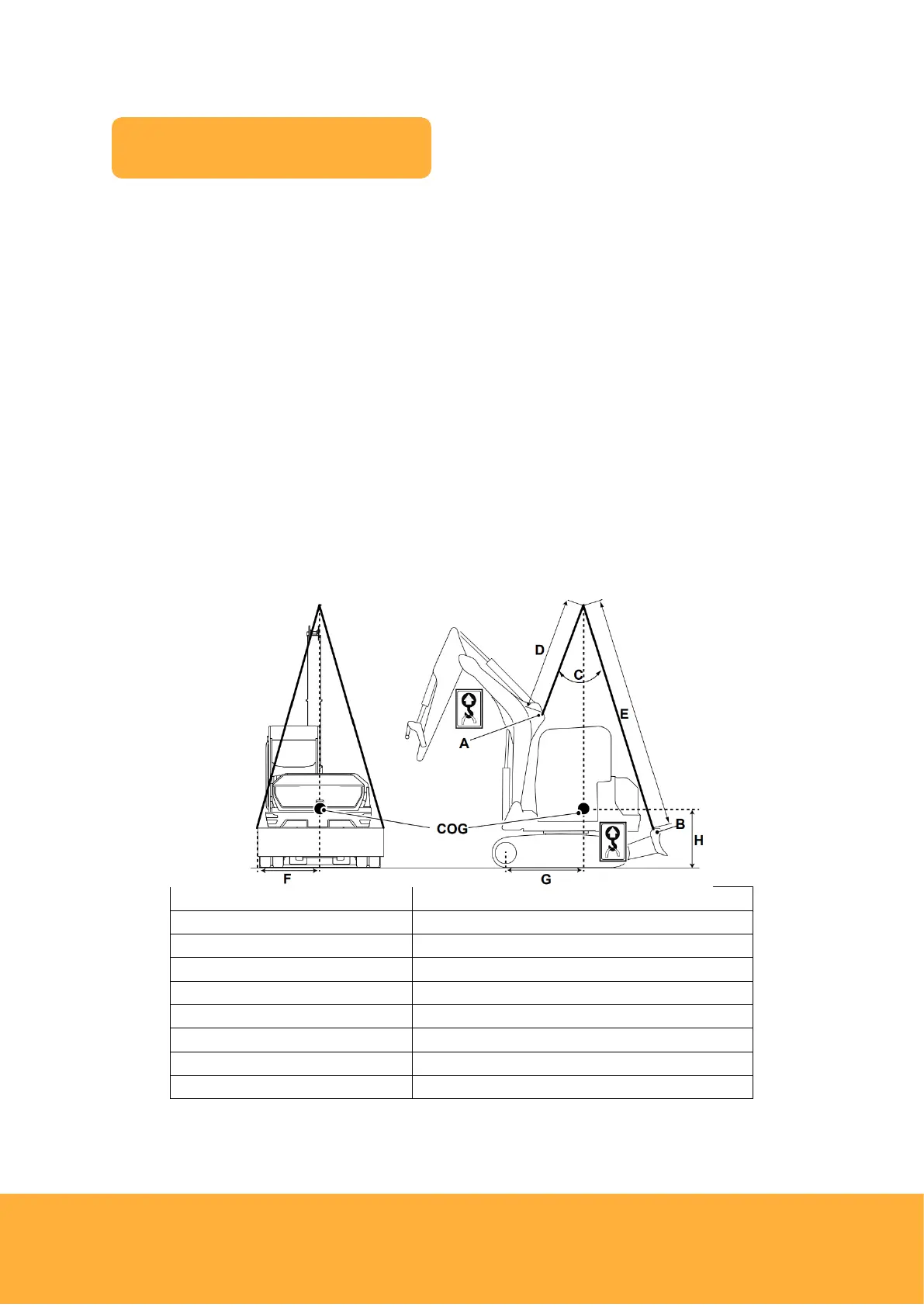

Lifting Points
