15 - Engine
21 - Oil Filter
00 - General
15 - 103 9813/5050-2 15 - 103
Component Identification

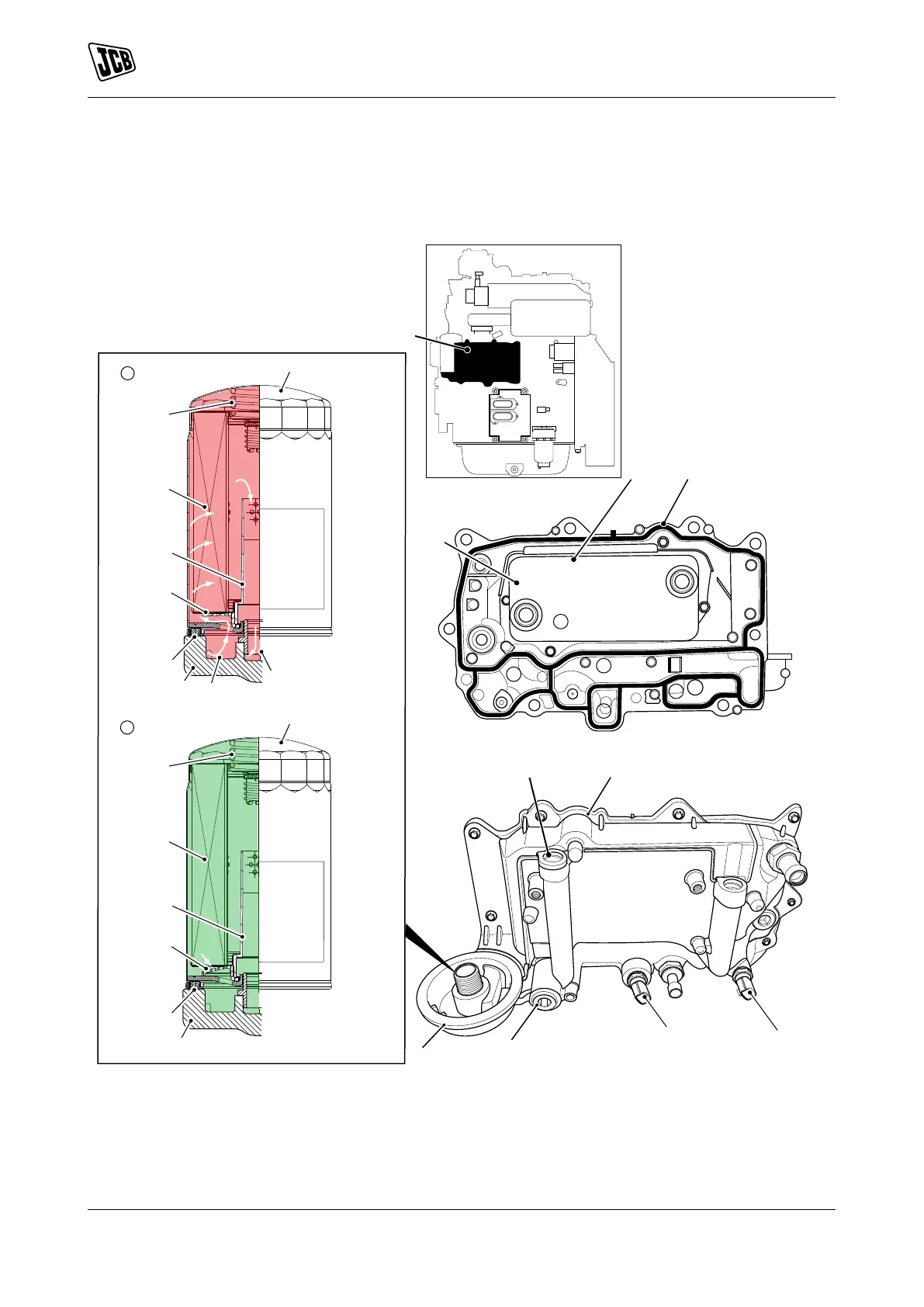

Figure 237.
7
8
10
1
1
9
B
A
1
8
6
5
4
1
17
12
11
3
13
16
14
19
15
18
9
10
3
13
16
14
19
15
18
3
1 Oil cooler and filter housing 2 Oil filler cap (not shown)
3 Oil filter head 4 Oil gallery - from pump to cooler
5 Oil cooler matrix 6 Sealing gasket - housing to crankcase
7 Coolant gallery 8 Oil filter drain down plug
9 Oil gallery - from cooler to filter head 10 Oil gallery - from filter head to main oil gallery
