15 - Engine
18 - Engine Belt
03 - Drive Belt
15 - 97 9813/5050-2 15 - 97

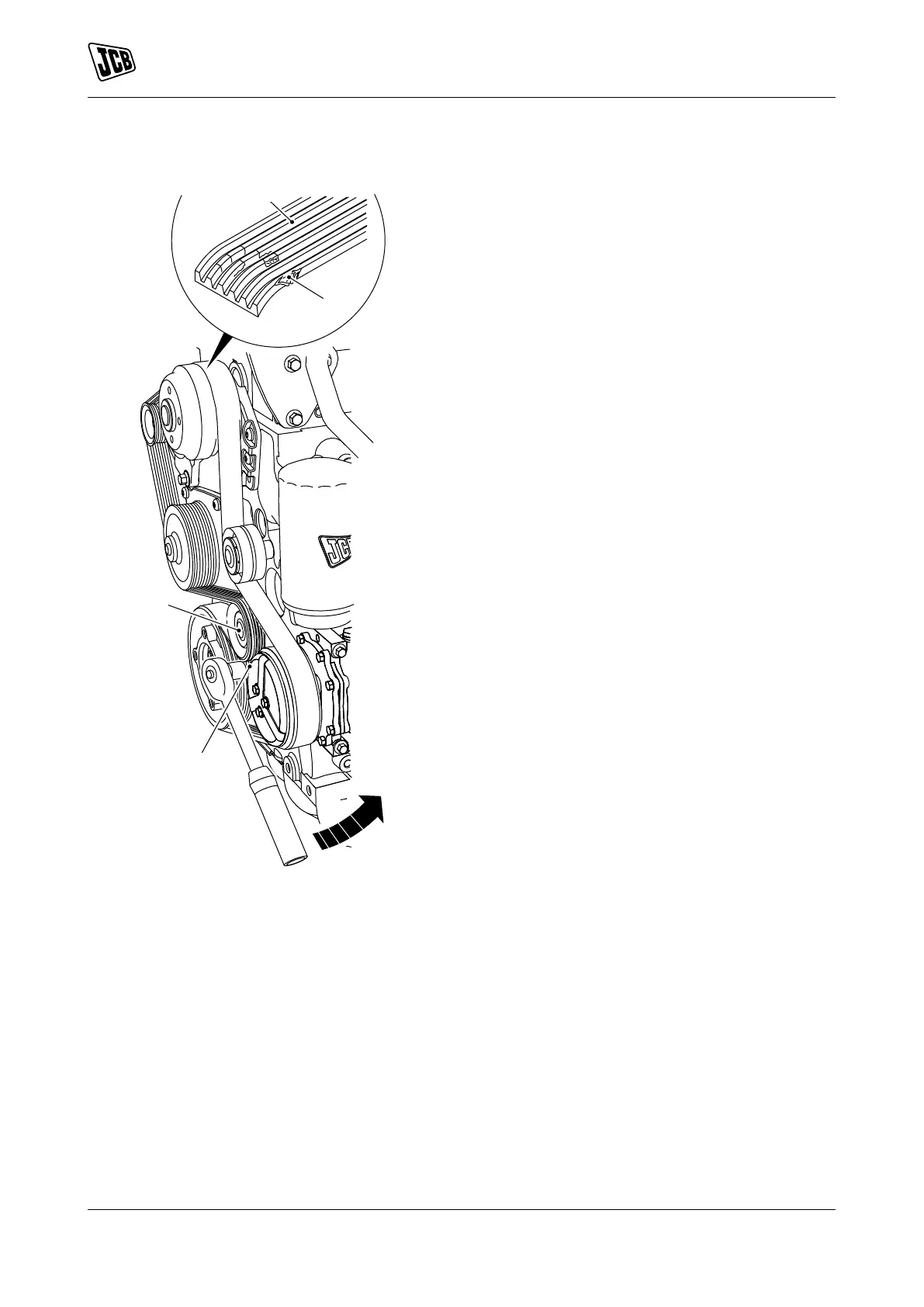

Figure 235.
A Spring loaded tensioner
B Drive belt
C Example of frayed drive belt (refer to Check
Condition)
D Spigot nut
Install
1. The installation procedure is the opposite of the
removal procedure. Additionally do the following
step.
2. Before you install the new belt, check that the
tensioner roller and the fan pulley rotate smoothly
and that there is no play in the bearings.
