jcb 6T-1 Front Tip - Page 28

01 - Machine
09 - Description
12 - Main Component Locations
01 - 22 9813/8950-2 01 - 22
G Skip H Mirrors
J Hand rails K FOPS (Falling Object Protective Structure)
(For: 6T-1 Front Tip, 9T-1 Front Tip, Without Cab)

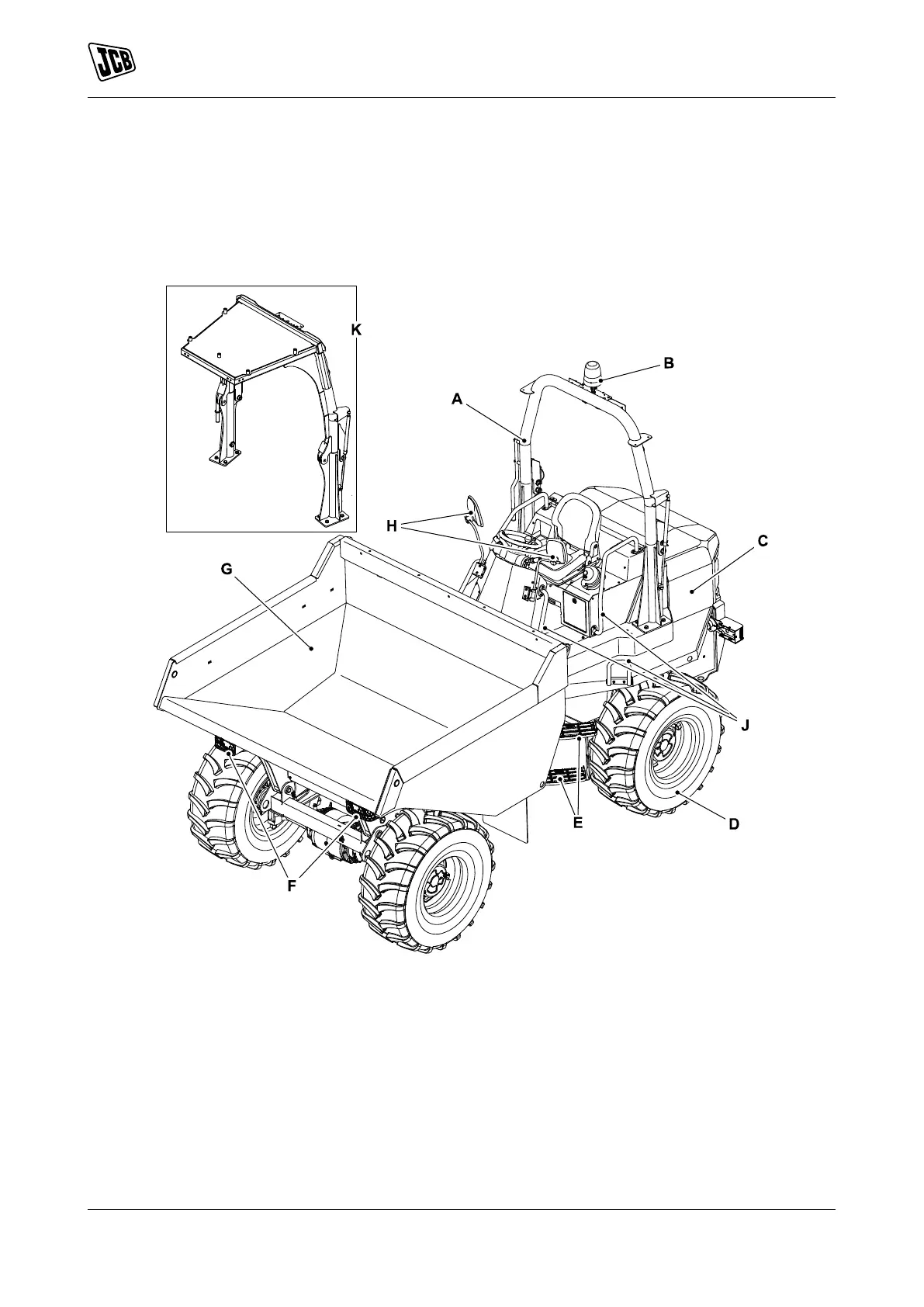

Figure 6.
A ROPS B Beacon
C Engine D Tyres/Wheels
E Steps F Head lights
G Skip H Mirrors
J Hand rails K FOPS
