jcb 9T-1 Front Tip - Service Point Locations

01 - Machine
09 - Description
15 - Service Point Locations
01 - 24 9813/8950-2 01 - 24
15 - Service Point Locations
Introduction
Engine Compartment

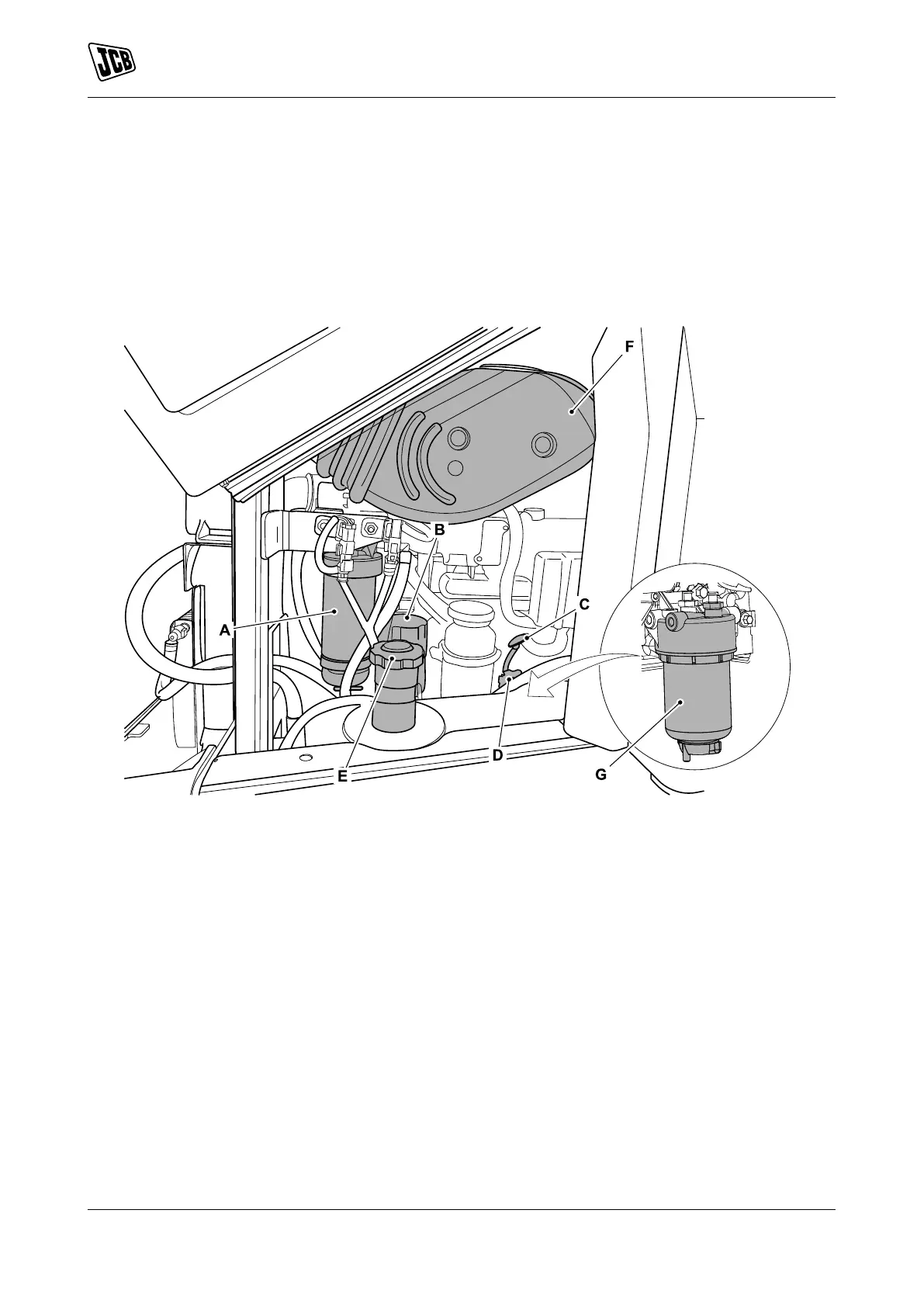

Figure 8.
A Fuel filter (Separator) B Engine oil filter
C Engine oil dipstick D Engine oil filler cap
E Fuel filler cap F Air filter
G Engine fuel filter
