06 - Body and Framework
03 - Chassis
36 - Upper Crossmember
06 - 10 9813/8950-2 06 - 10

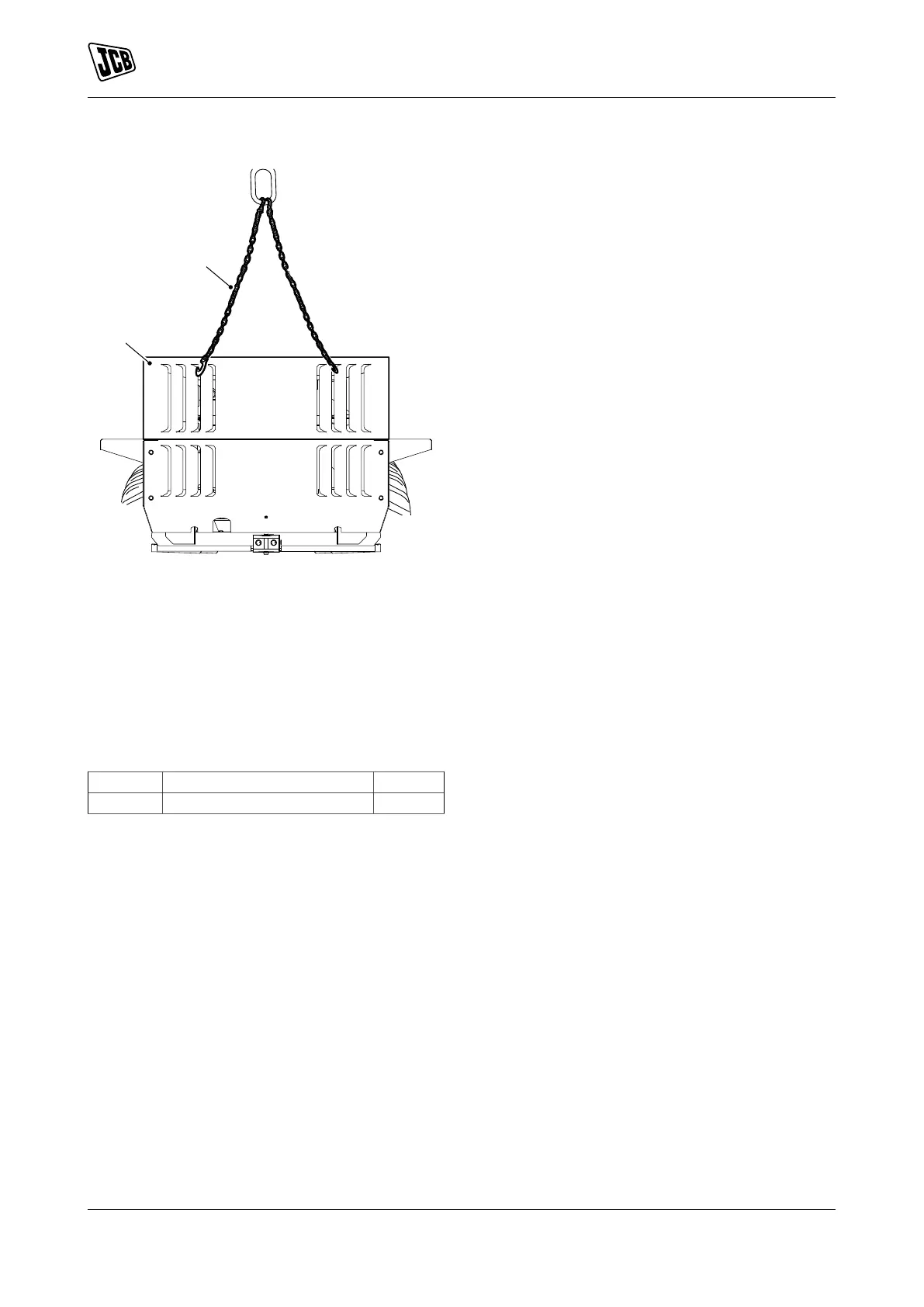

Figure 22.
G
F
F Lifting equipment
G Upper crossmember
Install
1. The installation procedure is the opposite of the
removal procedure. Additionally do the following
step.
2. Tighten the bolts 2 to the correct torque value.
Table 4. Torque Values
Item Description Nm
C Bolts 2 105
