NOTE: Before using the tool,
read the safety and operating
manual carefully.
INTENDED USE
The machine is intended for ripping
and cross-cutting wood in straight
cutting lines and with bevel angles to
45°, while resting firmly on the work
piece.

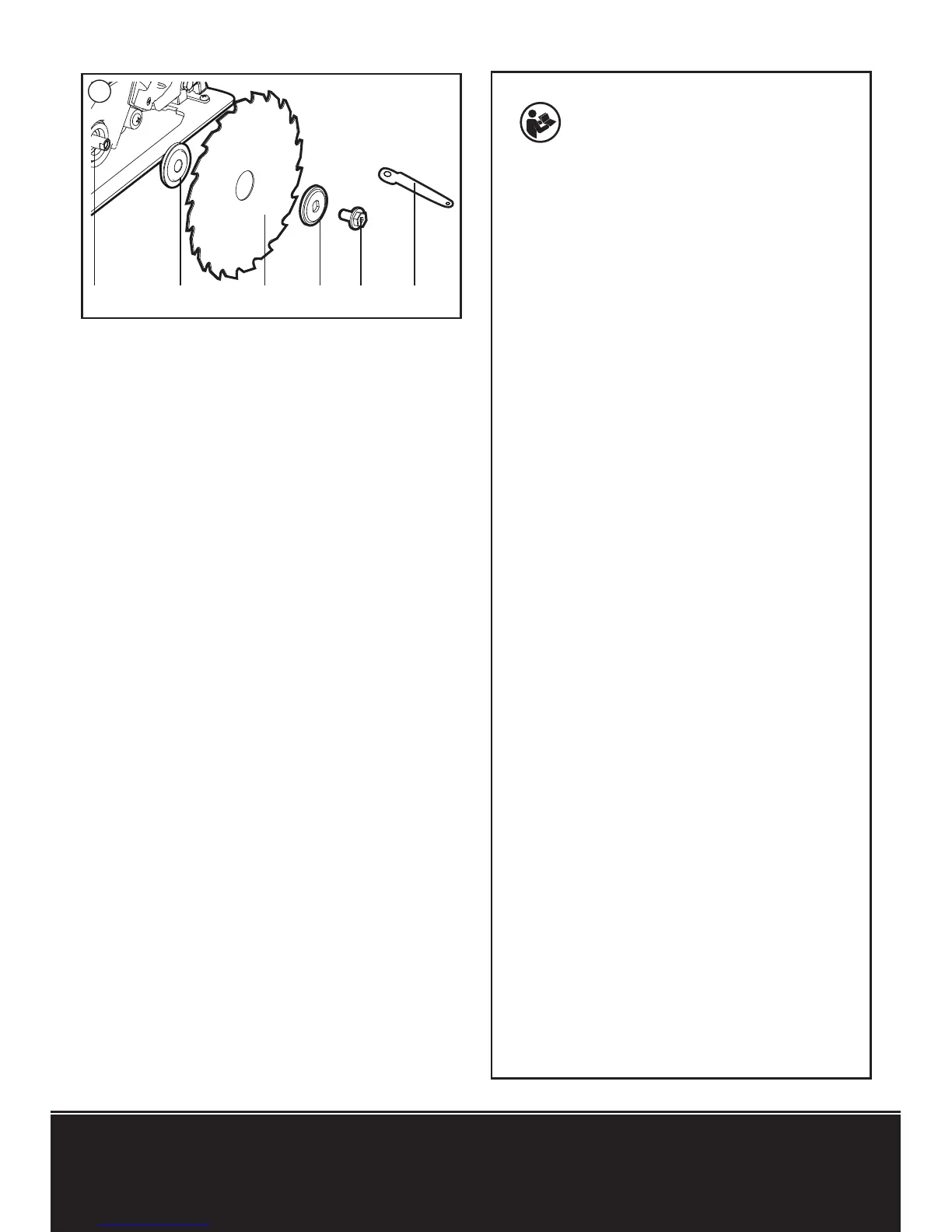

HOW TO ASSEMBLE YOUR
SAW BLADE (See A)
Your circular saw has been shipped
completely assembled, except
for the blade, which is packed
unassembled. Before fitting you
must inspect the saw blade carefully
to make sure that no breakage
or damage has occurred during
shipping.
1) The saw has a spindle lock
button (18) for locking the spindle.
Push and hold the spindle lock
button when mounting the blade or
adjusting the blade bolt.
2) Use the spanner (21) to loosen
the blade bolt (22) by turning it in a
counterclockwise direction.
3) Completely remove blade bolt
(22) and remove outer flange (23).
The part remaining is the inner
flange (24) and does not need to be
removed.
4) Rotate the lower guard using the
lower guard lever (14) and hold it in
the raised position to allow the saw
OPERATING INSTRUCTIONS
A
To Next Page
