JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0333 0143092

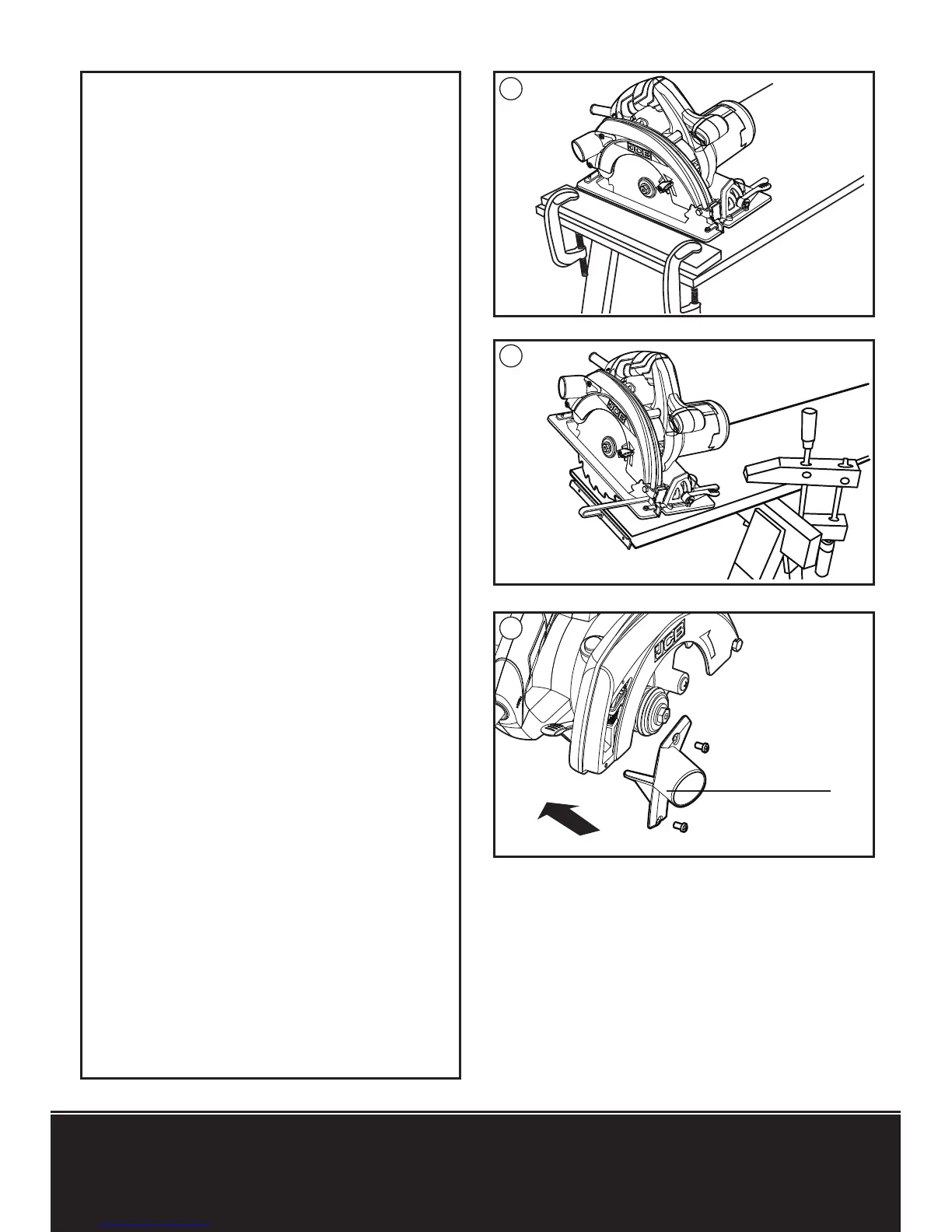

your parallel guide scale. For a 45°
bevel cut, use the 45° guide mark to
align with your parallel guide scale.
Securely clamp the parallel guide
(10) (See H1 and H2). Always make
a trial cut to check the setting.
9. DUST EXTRACTION
OUTLET
To remove sawdust, connect a
suitable external dust extraction
machine (e.g. vacuum cleaner) to
the dust extraction outlet using a
dust tube (16) and a flexible hose
connection. Ensure the adapter is
secured with two screws (See I).
H1
20
21
64
16
25 24 12 23 22 21
H2
20
21
64
16
25 24 12 23 22 21
I
