17
JCB-MS-210C
Instruction & User Manual
Assembly
For your own safety, only insert the mains
plug in an outlet when all assembly steps
have been completed and you have read
and understood the safety and operating
instructions.
Lift the saw out of the packaging and place
it on your work bench. (Positioning of the
saw on the work bench - see the next page
under „POSITIONING / WORK STATION“)
WARNING!
Assembling the work piece clamping
device (fig. 1.1)
• Loosen the locking knob (17) and attach
the work piece clamping device (10) to the
left or right of the fixed saw bench.
• Afterwards, retighten the locking knobr (17).
Assembling the work piece supports
(fig. 1.1 – 1.2)
• Loosen the fix screw (14) and guide the
workpiece support through the specified
hole on the side of the fixed saw bench.
• Make sure that the work piece support (15)
is also guided through the two plates (19)
on the underneath.
• Afterwards, retighten the fix screw (14).
• Repeat this process on the other side.
Assembling the support stand (fig. 1.1 – 1.2)
• Loosen the fix screw (14) on the
underneath of the saw through the
specified holes on the back of the saw.
• Afterwards, retighten the fix screw (14).

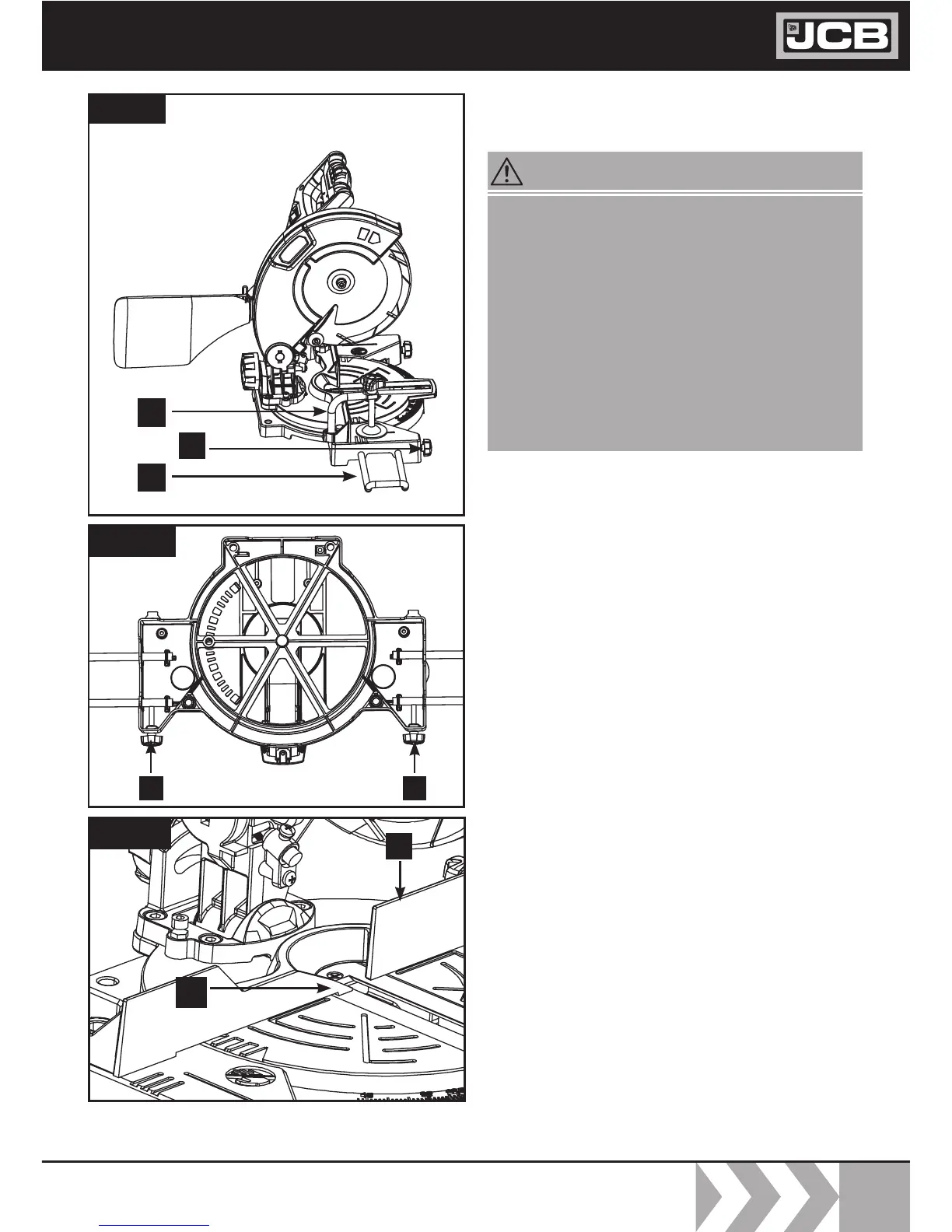

Fig.1.1
19 19
Fig.1.2
Fig.1.3
10
15
14
16a
16b
27
