20
JCB-MS-210C
Instruction & User Manual
Cross cut 90° and turntable 0° (Fig. 4,
1.3)
Attention! For 90° mitre cuts, the extention
block (16a) must be fixed in the inner
position.
• Open the set screw (16b) on the extention
block (16a) with an Allen key and push
the extention block (16a) inwards.
• The moveable extention block (16a) must
be locked in a position far enough from the
inner position that the distance between the
extention block (16a) and the saw blade (5)
is no more than 8 mm.
• Before making the cut, check that no
collision could occur between the extention
block (16a) and the saw blade (5).
• Secure the set screw (16b) again.
• Loosen the locking knob (17).
• Lift the saw unit by the handle (1) until it
locks in place in the top position.
• Lock the material with the clamping device
(10) on the fixed saw table to prevent the
material from moving during the cutting
operation.
• Press the workpiece evenly on the stop
rail (16); make sure that you hand remains
outside the cutting area of the saw blade.
• With your right hand on the handle (1),
press the release button (3) so that the unit
can also be pivoted downward.
• The motor starts when the ON/OFF switch
(1) is pressed.
• Slowly bring the saw blade down to the
workpiece and cut through it with moderate
pressure.

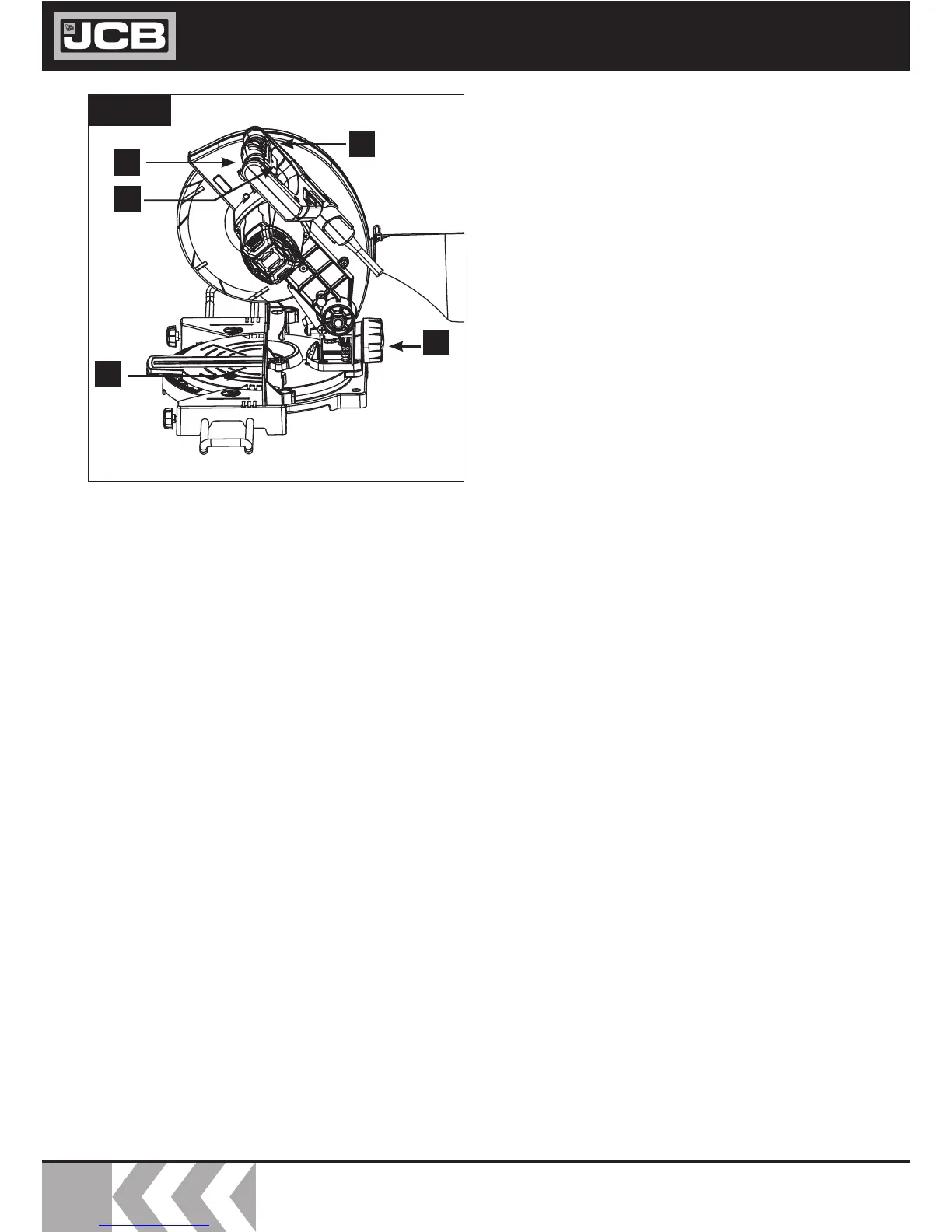

Fig. 4
3
2
1
16
26
