jcb JS160 User Manual

Automatic Adjustment
Always perform the automatic adjustment when the
controller and or the throttle motor or linkage is replaced or
the throttle cable or linkage is adjusted. The controller must
be programmed to suit the machine model. There are
differences in the controller’s programming for various
models and territories.
Initial Set-up of the Controller for Machine
Identification
When the CAPS controller is programmed, it has to be given
information concerning three things:-
1 The machine model.
2 The territory.
3 The desired language for the message display.
To set the machine, the controller’s original programming
must be cleared.

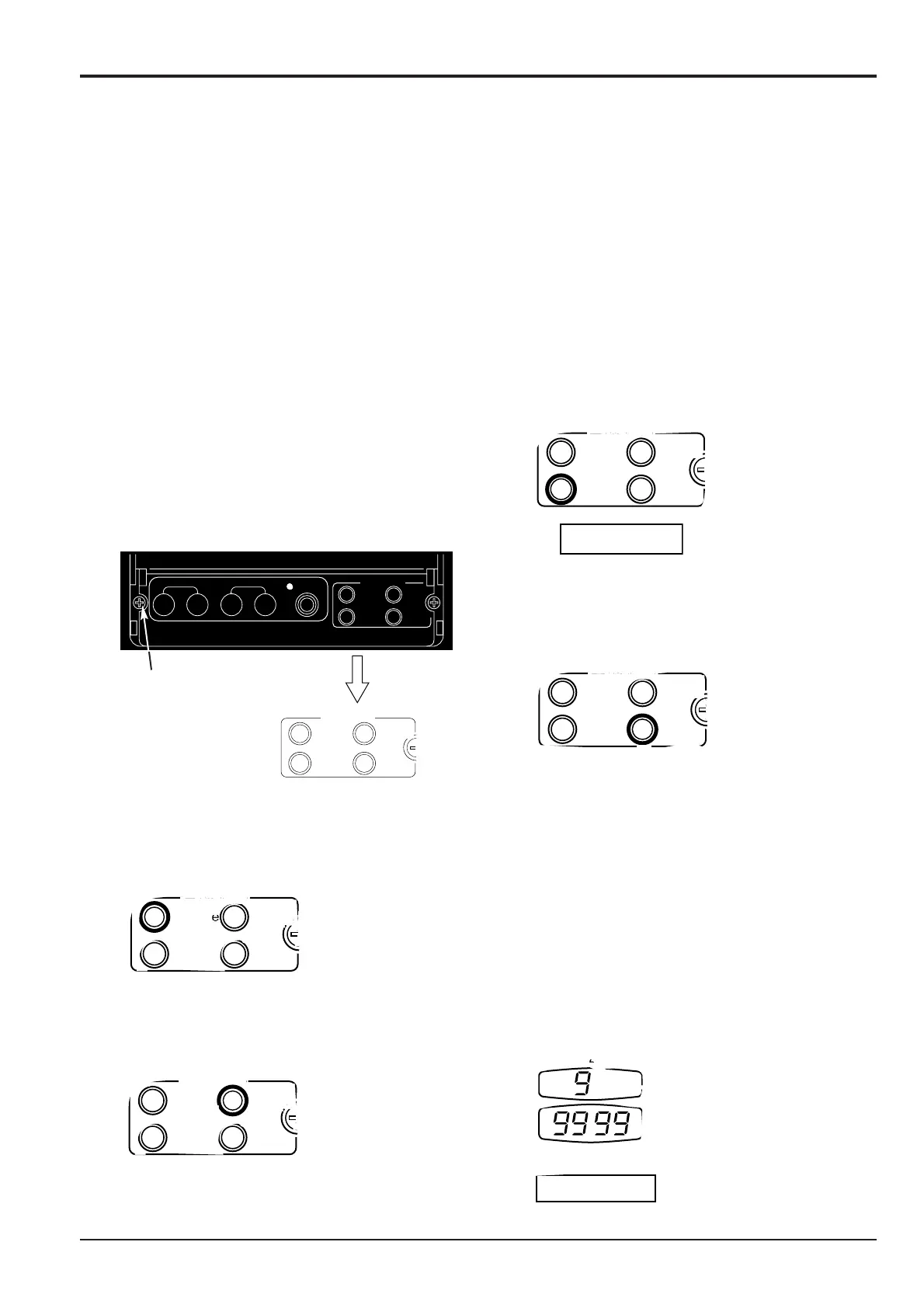

1 Remove plastic cover from around redundant mode
switches.
2
Switch ignition on.
3 Press CHANGE button once.
4 Press PATTERN button once.
Change
Select Reset
Pattern
Self-check
6 - 3
5 Press SELECT button until RESET is displayed in the
message display.
6 Press RESET button for 20 sec until buzzer sounds.
7 Switch ignition off.
Controller’s original programme is now cleared.
When the ignition is switched on, the monitor digital
clock will display 9999, the mode screen will display 9
and the symbol for high speed travel will be lit. This
condition indicates that the CAPS controller’s memory
has been wiped. This will also be the condition of the
monitor when a new CAPS controller is fitted and the
ignition switched on.
8 Switch ignition on (9999 displayed).
Section C Electrics
9803/6410
Section C
6 - 3
Issue 2*
Throttle Motor
BACK UP
MANUAL THROTTLE
UP
HM
DOWN
ADJUST/CLOCK
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Work Mode
Time
Message
MODE
Change
Message
RESET
Select Reset
Pattern
Self-check
*
*
Cover installation
screws x 2
