77 - 1
Section E Hydraulics
9803/6410
Section E
77 - 1
Issue 1
Hydraulic Rams
Reconditioning (cont’d)
Bushing Removal
Note: Jig details are in accordance with ram sizes. See Service Tools, Section 1.
Place the cylinder head on the work bench with the
cylinder tube connecting surface facing up.
The work bench should be clean so that no dust or other
foreign matter can cause damage to the pipe joint .
Remove the bushing securing snap ring.
Secure the cylinder head in a vice, etc. and using a
screwdriver blade, pull out the snap ring and remove.

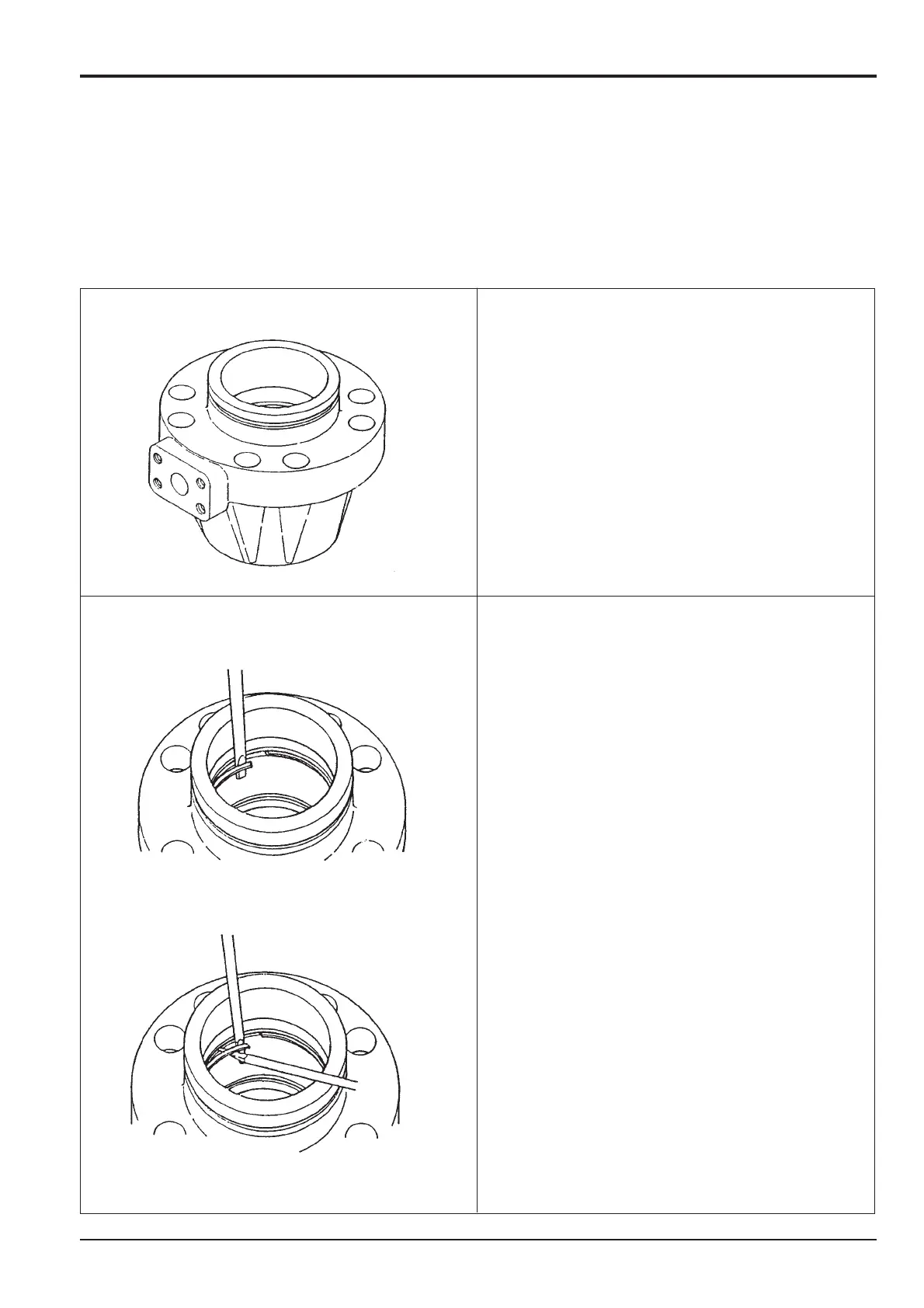

1 Cylinder head setting
2 Removing snap ring
To Next Page
