Dismantling (cont’d)

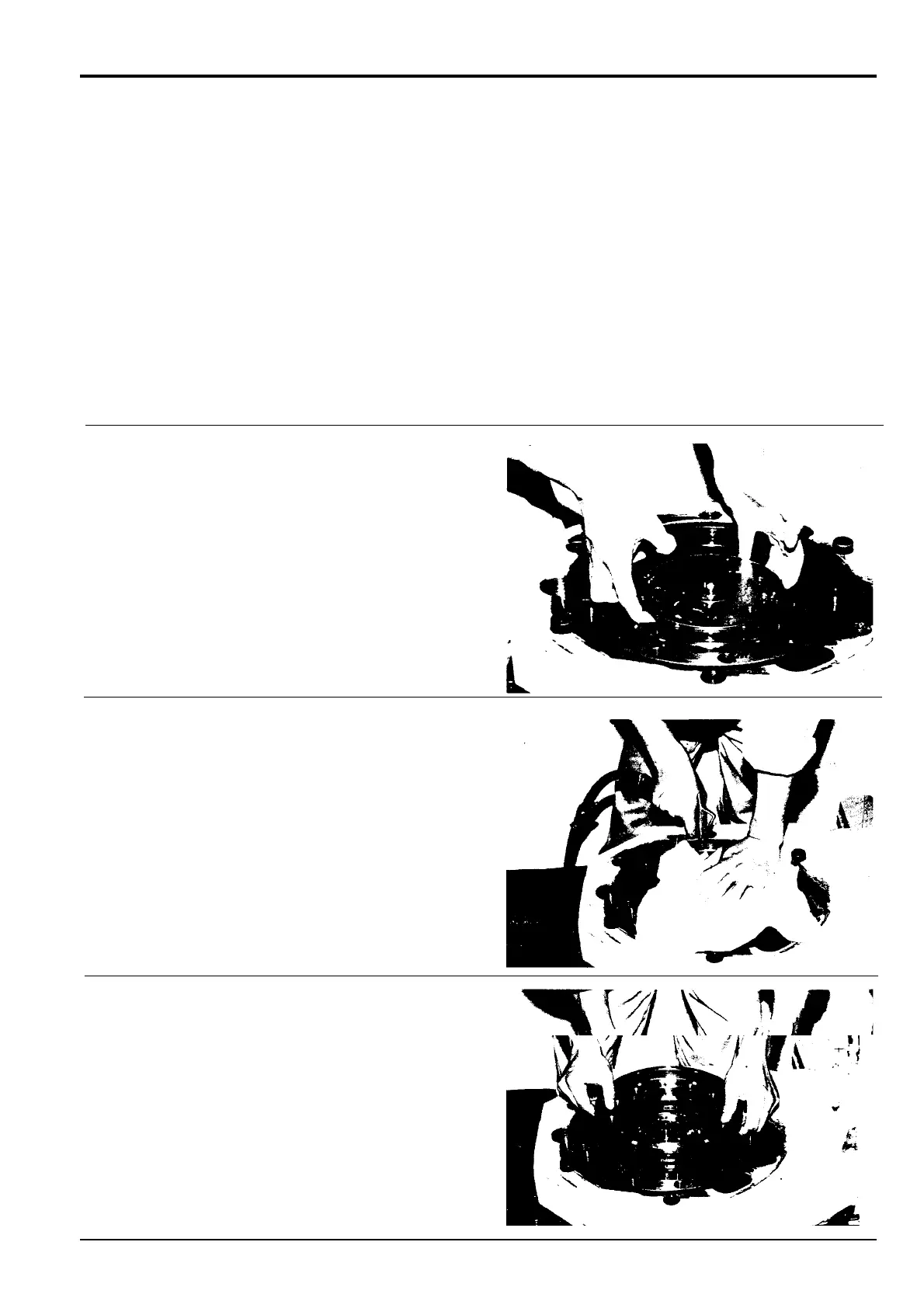

19 Repeat steps 16 to 18 for the second sleeve 202.
20 Remove timing plate 109, two pins 141, ten springs 113,
bearing 150, ‘O’-rings 29 and 39.
Discard the ‘O’-rings.
21 Remove piston 112, by applying compressed air
through the brake pressure port. Place a protective
cover over the piston to stop it from flying out.
! CAUTION
When using compressed air, wear safety glasses and
gloves. Do not direct compressed air at your skin.
8-3-4-2
22 Remove and discard ‘O’-rings 135 and 139 also back-
up rings 147 and 148.
8 - 7
Section F Transmission
9803/6410
Section F
8 - 7
Issue 1
Traction Motor
