Dismantling (cont’d)

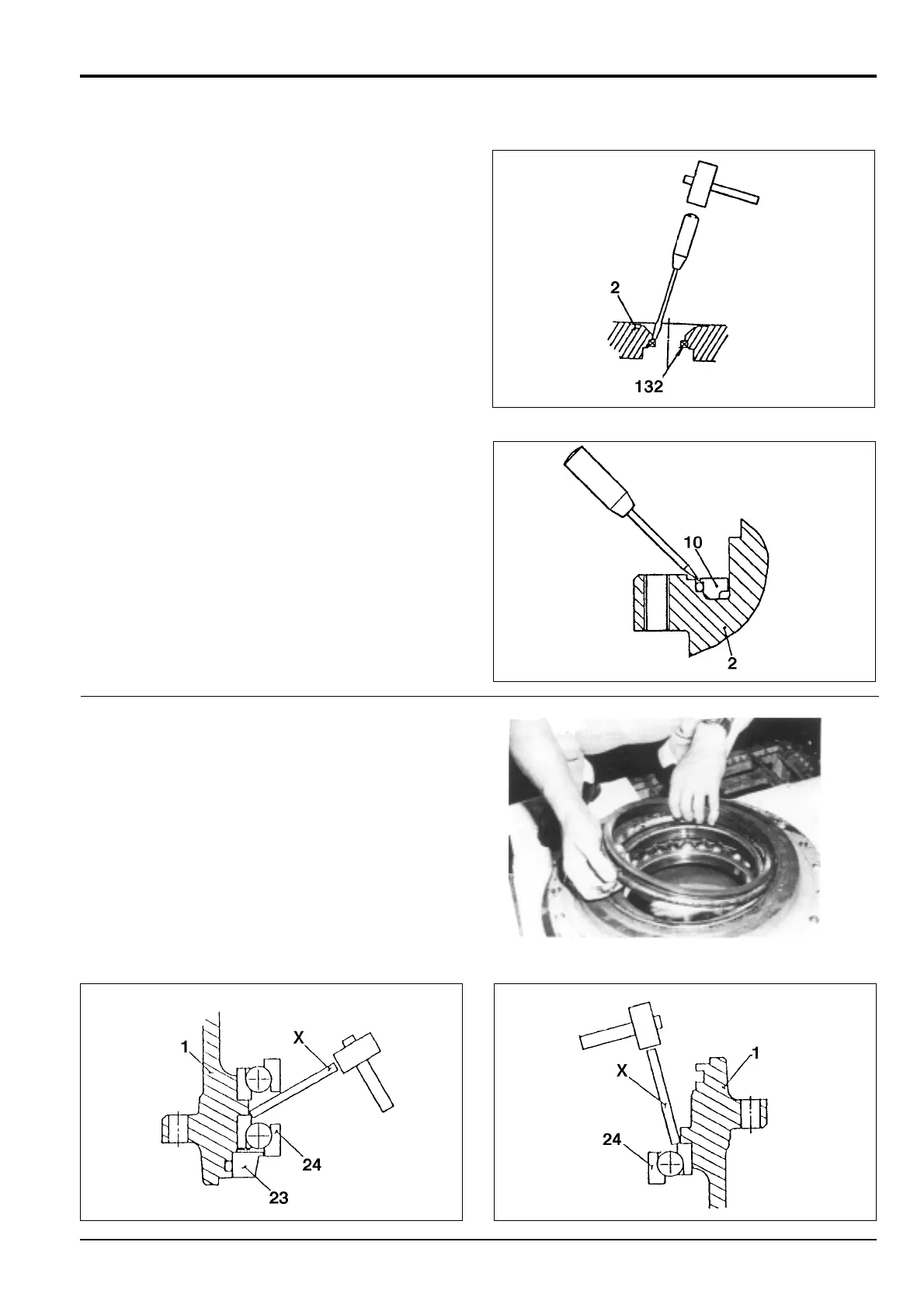

7 Dismantle spindle 2 parts as follows:
a Remove and discard ‘O’-ring 29.
Note: Remove oil seal 132 only if it needs renewing.
b Turn the spindle 180° and using a flat end
screwdriver and hammer as shown, remove and
discard oil seal 132.
Note: Remove distance piece 10 only when renewing
floating seal 31.
c Remove distance piece 10.
d Remove and discard ‘O’-ring 37.
8 Dismantle hub 1 parts as follows:
a Remove floating seal 31.
Note: Bearings 24 are a shrink fit onto the hub and should
not be removed unnecessarily. Having been removed, the
bearings should be discarded and renewed.
b Remove one bearing 24 using a steel bar X and
hammer as shown. Seal ring 23 will be removed at
the same time.
c Turn the hub over and remove the other bearing 24.
d Remove and discard ‘O’-ring 40.
10 - 3
Section F Transmission
9803/6410
Section F
10 - 3
Issue 1
Reduction Gear - JS160
JS00570
JS00580
JS00600
JS00590
To Next Page
