jcb JS160 User Manual

10 - 4
Dismantling (cont’d)

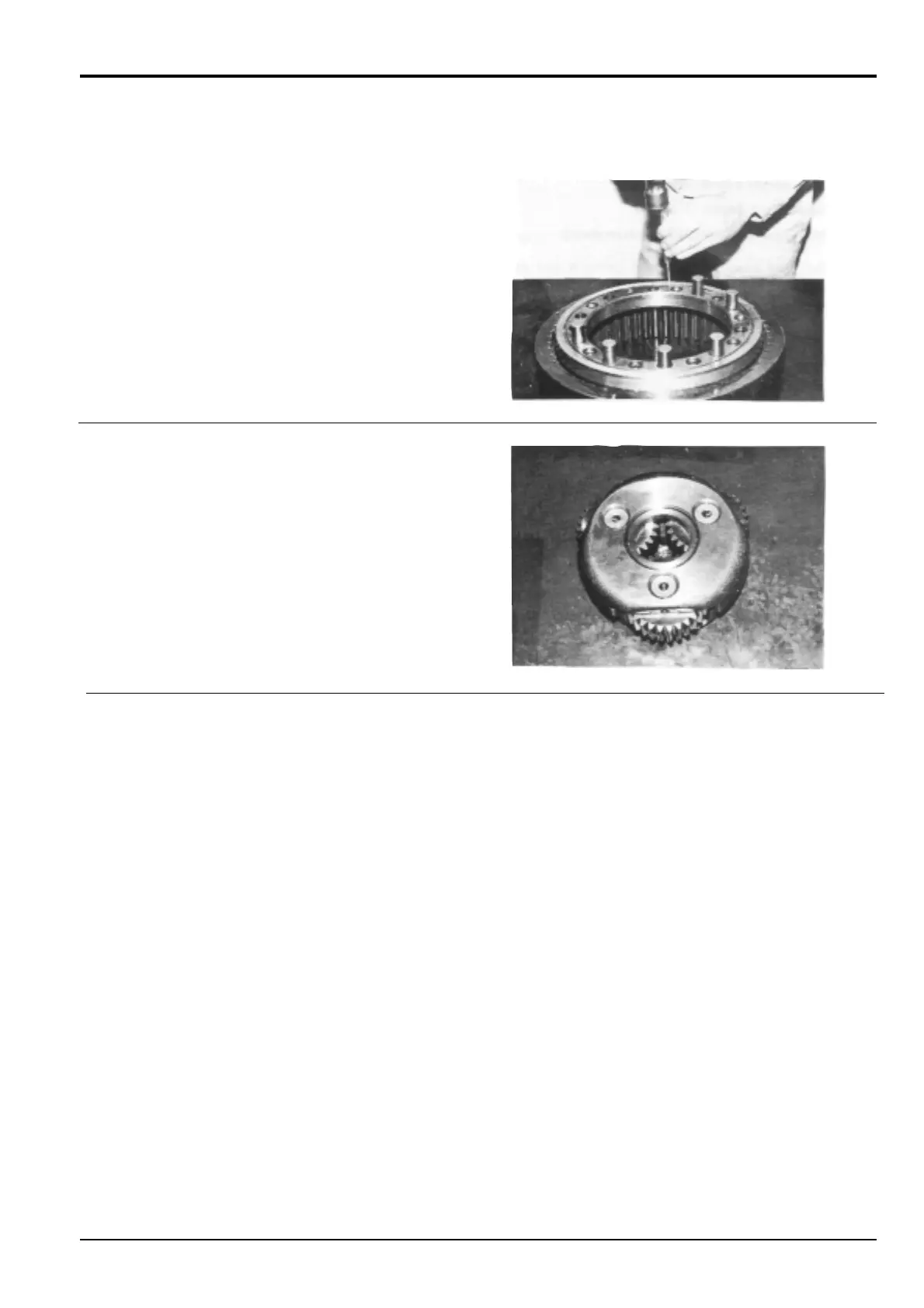

9 Remove ring 15 and coupling gears 8 from ring gear 5.
10 Do not attempt to dismantle the carrier assembly
(comprising carrier 3, cluster gears 6, shafts 9, thrust
collars 14, bearings 25 and parallel pins 34). If damage
to any of the individual components is evident renew the
complete assembly.
Section F Transmission
9803/6410
Section F
10 - 4
Issue 1
Reduction Gear - JS160
