2 - 2 Section B Body & Framework 9803/6410
Section B
2 - 2
Issue 1
Undercarriage

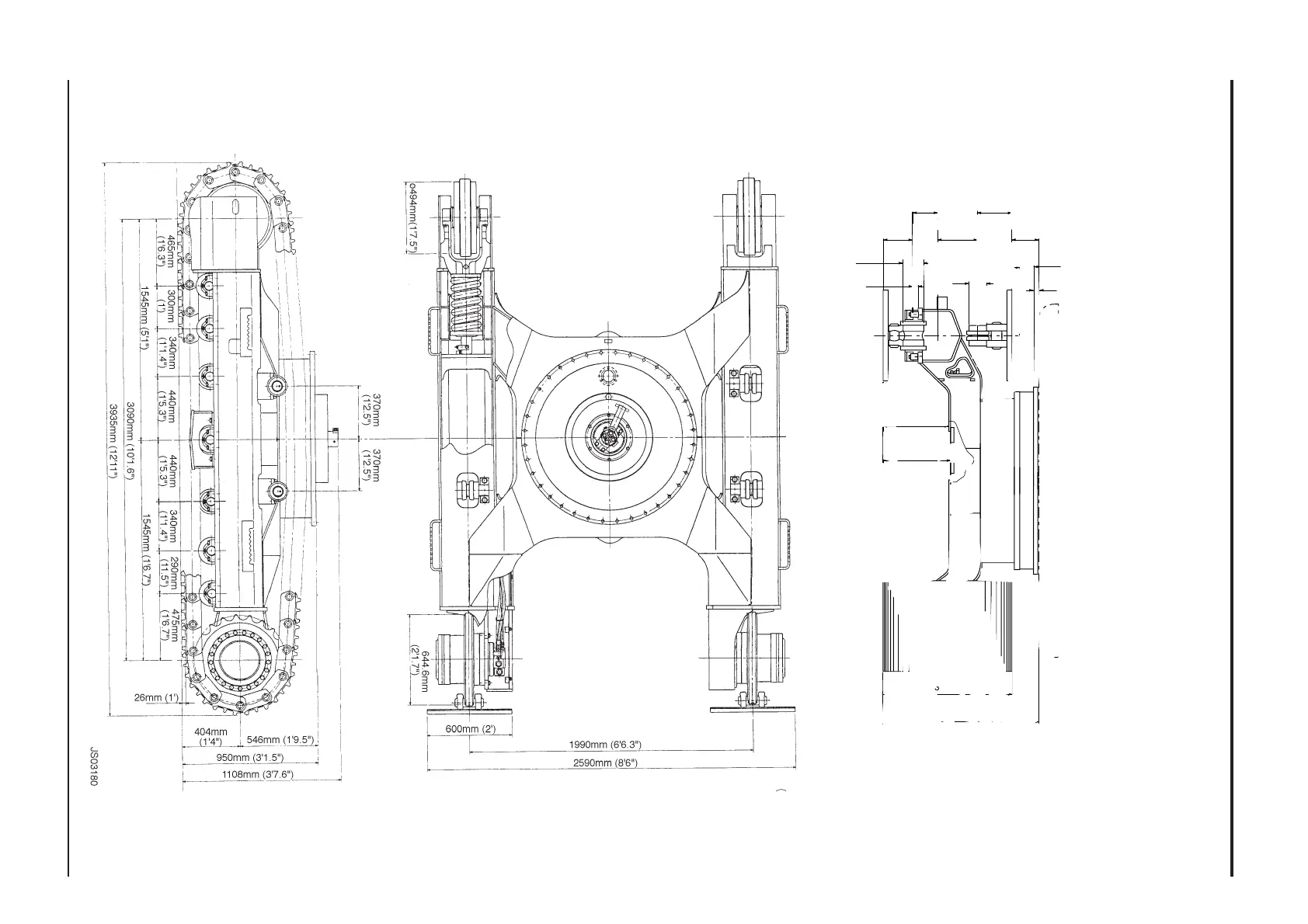

JS160 - Dimensions
JS03160
883.5mm (2’11")
473.5mm
(1’6.6")
465.5mm
(1’6.3")
1061mm (3’5.7")
25mm
(1")
¿120mm
(¿4.7")
215mm
(8.4")
189mm
(7.4")
279.5mm
(11")
200mm
(7.8")
177.5mm
(7")
99.5m
(4")
¿150mm
(¿6")
11.5m
(0.5")
