Section B Body & Framework
9803/6410
Section B
3 - 1
Issue 1
Main Body

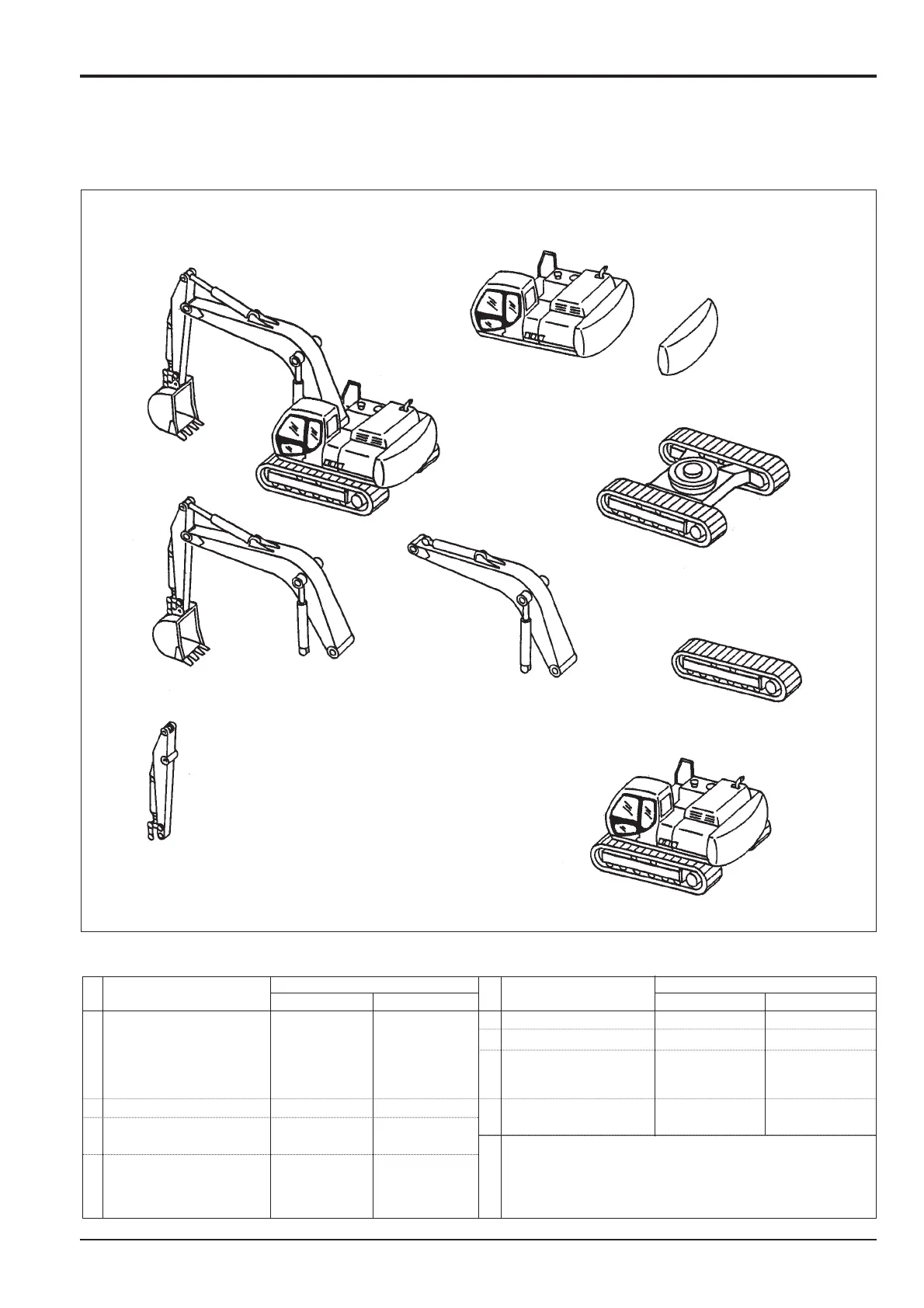

Weights
Weight kg (lb) Weight kg (lb)
Description JS130* JS160* Description JS130* JS160*
A Overall Mass 12200 (26900) 15200 (33520) F Machine Main Body 10030 (22120) 12800 (28224)
B Upper Mechanism 5690 (12550) 6850 (15110) G Attachment 2200 (4850) 2400 (5290)
Includes counterweight and
H Boom (including rams) 1210 (2670) 1600 (3530)
slew ring bearing
C Counterweight 2540 (5600) 2930 (6460) I Dipper 580 (1280) 600 (1320)
D Undercarriage 4090 (9020) 5950 (13120)
(including ram and link)
(with grouser shoe)
* Assumes the following options are fitted:
Boom 2.5m (8ft 2.4in) 2.7m (8ft 10.3in)
E Shoe (600 mm grouser) 840 (1850) 1160 (2560)
(one side) Shoe (grouser) 600mm (2 ft) 600mm (2 ft)
A
G
I
H
B
C
D
E
F
