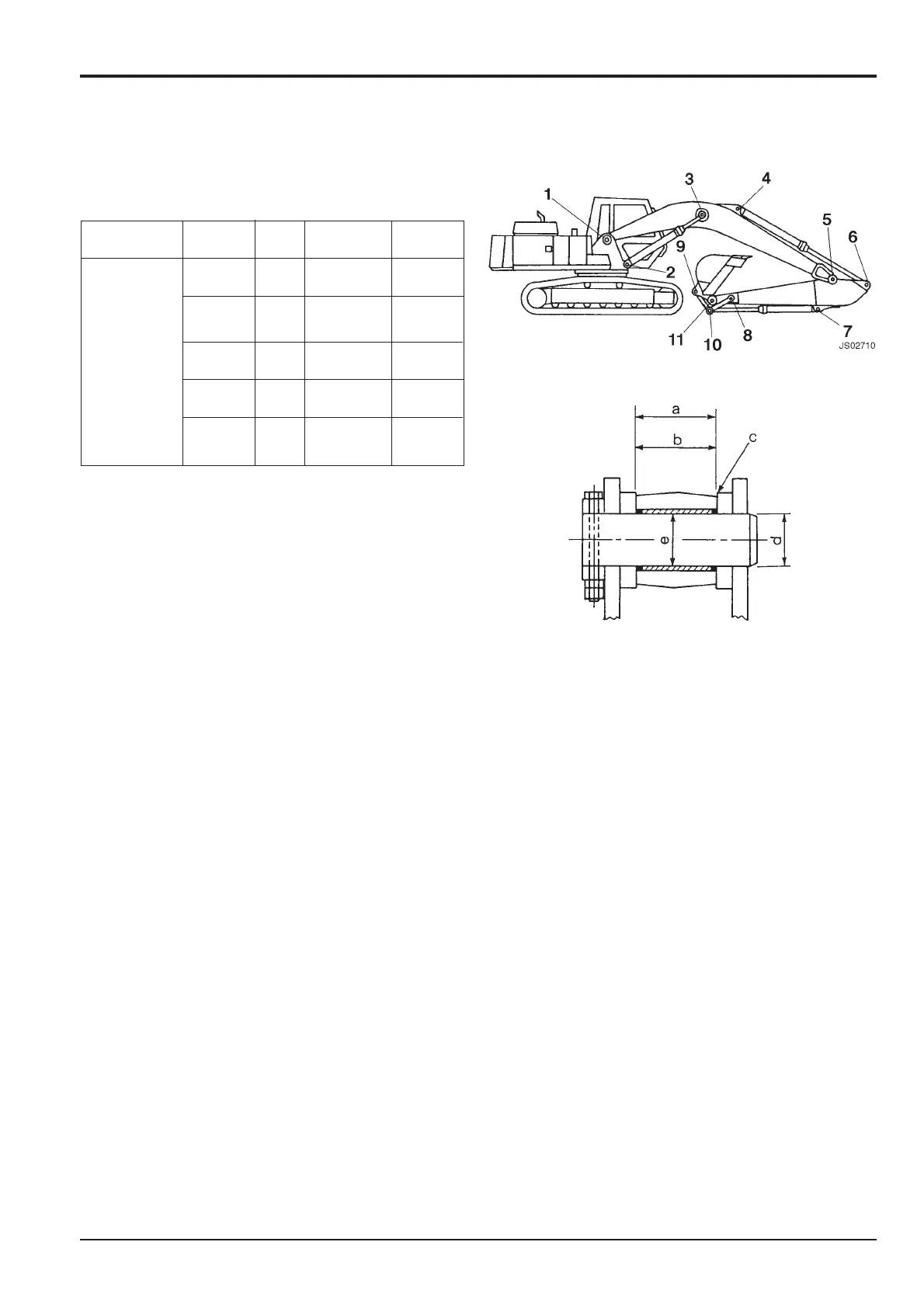

4 - 2
Attachments (continued)
Dipper Ram Installation JS130
Section B
Body & Framework
9803/6410
Section B
4 - 2
Issue 1
Maintenance Specifications
Equipment Part
Code
Standard
Service
Name
Name
V
alue (mm)
Limit (mm)
4.
Dipper ram
Boom
a
99
105
installation
Dipper ram
b
98
96
(dump end)
Clearance
c
0.5-3.0
Pin
d
Ø70
Ø69
Bushing
e
Ø70
Ø71.5
(Dipper ram)
Shim for
adjustment
84
86
