4 - 1
Attachments

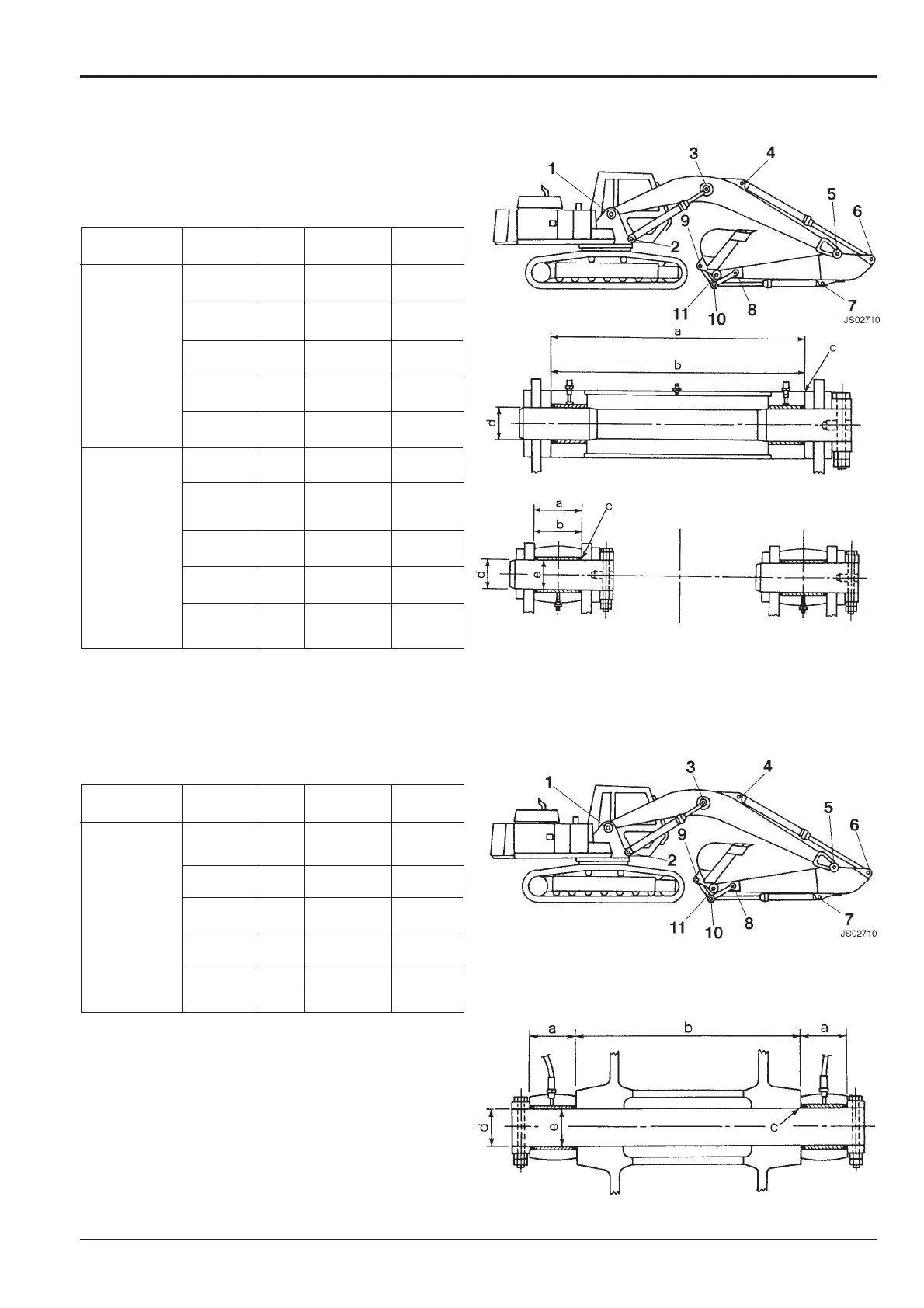

Boom and Slew Frame Installation JS130
Boom Ram Installation JS130
Section B Body & Framework
9803/6410
Section B
4 - 1
Issue 1
Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
1. Boom and Slew frame a 569 579
slew frame
installation
Boom b 568 566
Clearance c 1.0-3.5
Pin d Ø75 Ø74
Bushing (boom) e Ø75 Ø76.5
2. Boom ram Slew frame a86 92
and slew
frame
Boom ram b85 83
installation
(dump end)
Clearance c 1.0-2.5
Pin d Ø65 Ø64
Bushing e Ø65 Ø66.5
(boom ram)
Shim for
adjustment
Shim for
adjustment
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
3. Boom and Boom ram a92 90
boom ram (dump end)
installation
Boom b 434 428
Clearance c 1.0-2.5
Pin d Ø70 Ø69
Bushing e Ø70 Ø71.5
(boom ram)
Shim for
adjustment
