20 - 2
Section E
Hydraulics
9803/6400
Section E
20 - 2
Issue 1

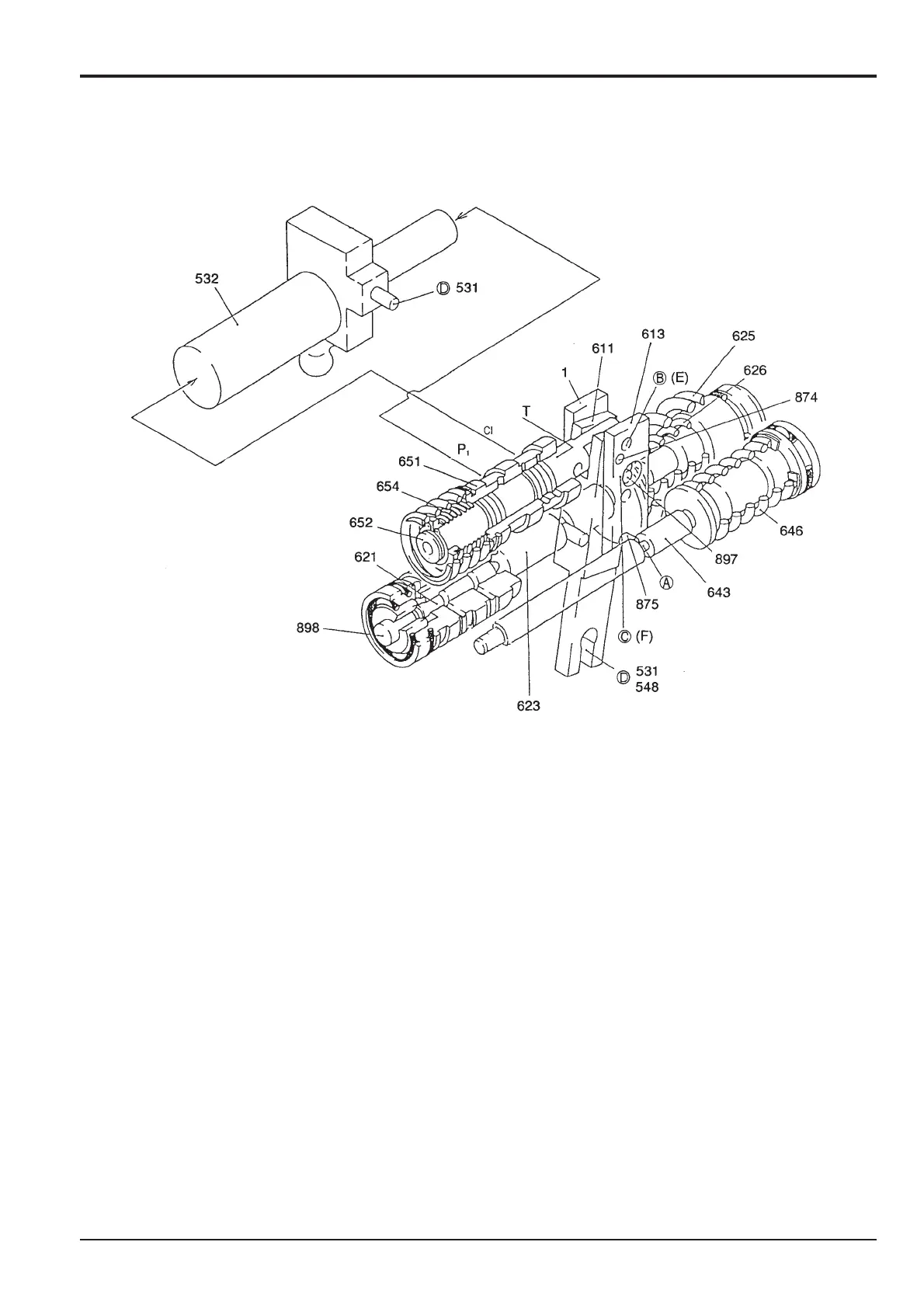

Regulator JS200. JS240
Specifications,
(continued)
Key
531
Tilting pin
532
Servo piston
548
Feedback pin
611
Feedback lever
621
Compensator piston
623
Compensator rod
625
Outer spring
626
Inner spring
643
Pilot piston
646
Pilot spring
651
Sleeve
652
Spool
654
Return spring
874
Pin
875
Pin
897
Pin
898
Pin
248
250
