51 - 7
Assembly (continued)

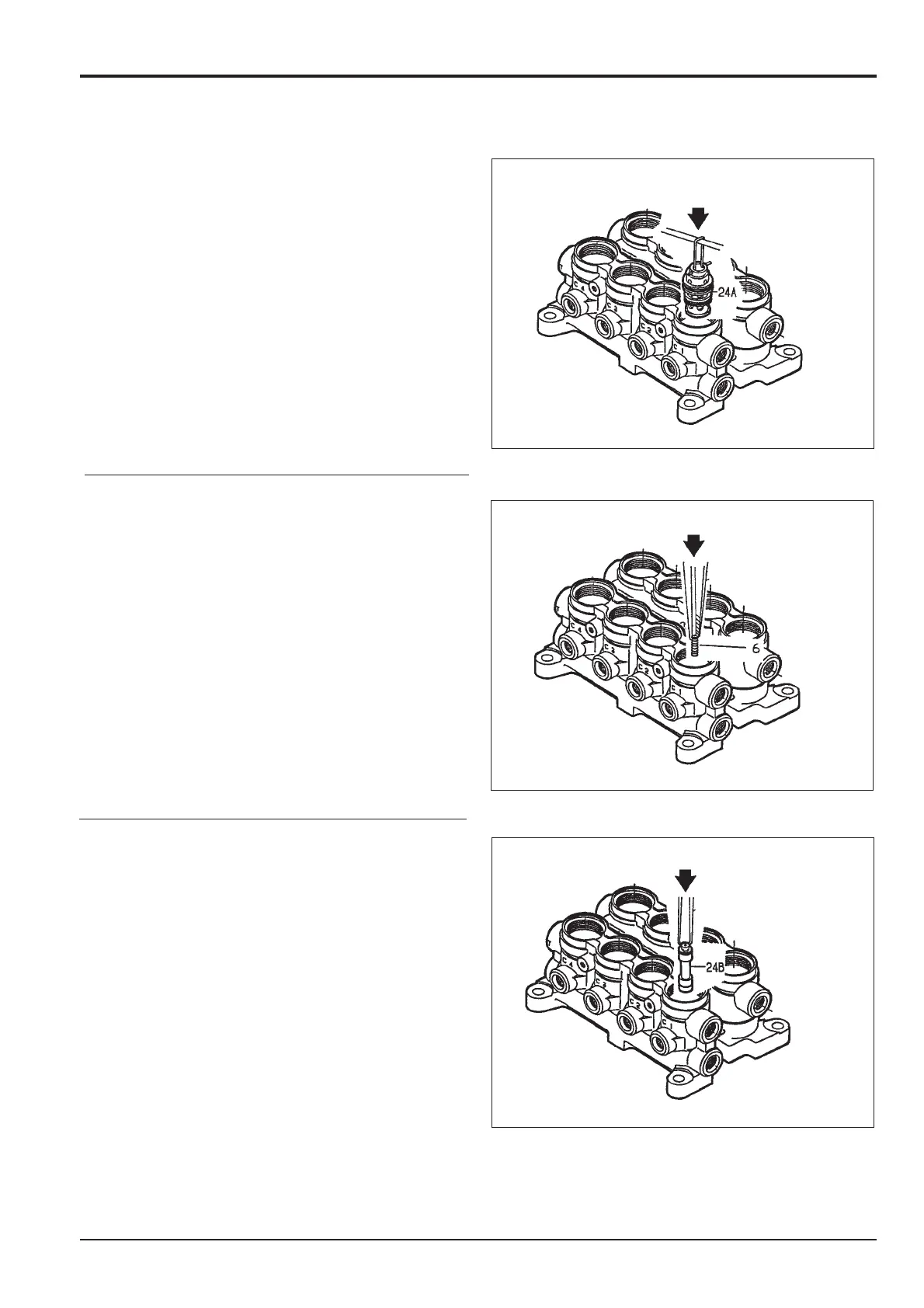

4. Install the 'O'-rings (8, 9, 23) on the body (24A) and use
the special tool (B) on the housing and push it in.
The inner diameter of the S8 body is 12 mm.
(Apply grease to the 'O'-ring).
5. Drop in the spring (6) from the middle of the body (24A).
At this time, make sure it stays in line with the inner hole
of the housing.
6. Gently insert the spool (24B) into the body. At this time,
be careful not to damage the edge inside the body.
(Spool diameter for S8 is 12 mm).
Section E
Hydraulics
9803/6400
Section E
51 - 7
Issue 2*
Solenoid Valve (8-spool)
*
