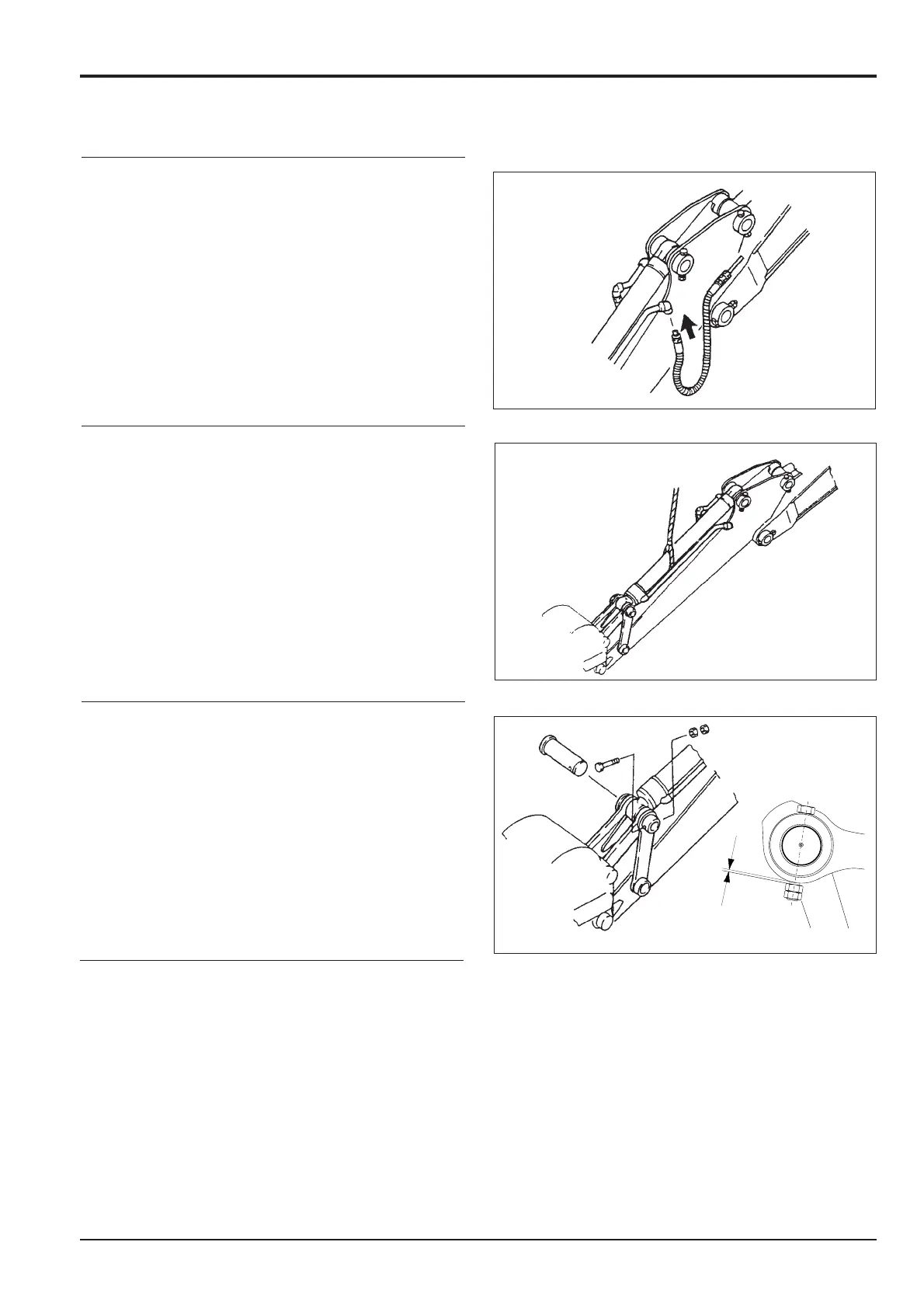

Bucket Ram (continued)
3. Connect the hose to the bucket ram.
4. Hoist the bucket ram to align with the link.
5. Install the pin, bolt and nuts. When checking or refitting
JS machine pivot pins, the retaining nuts and bolts
should not be fastened up tight but must have
approximately 3mm of play so that the pin is free from
tension.
Note: Stroke the ram to release entrapped air. After releasing
the air, check for oil leakage
