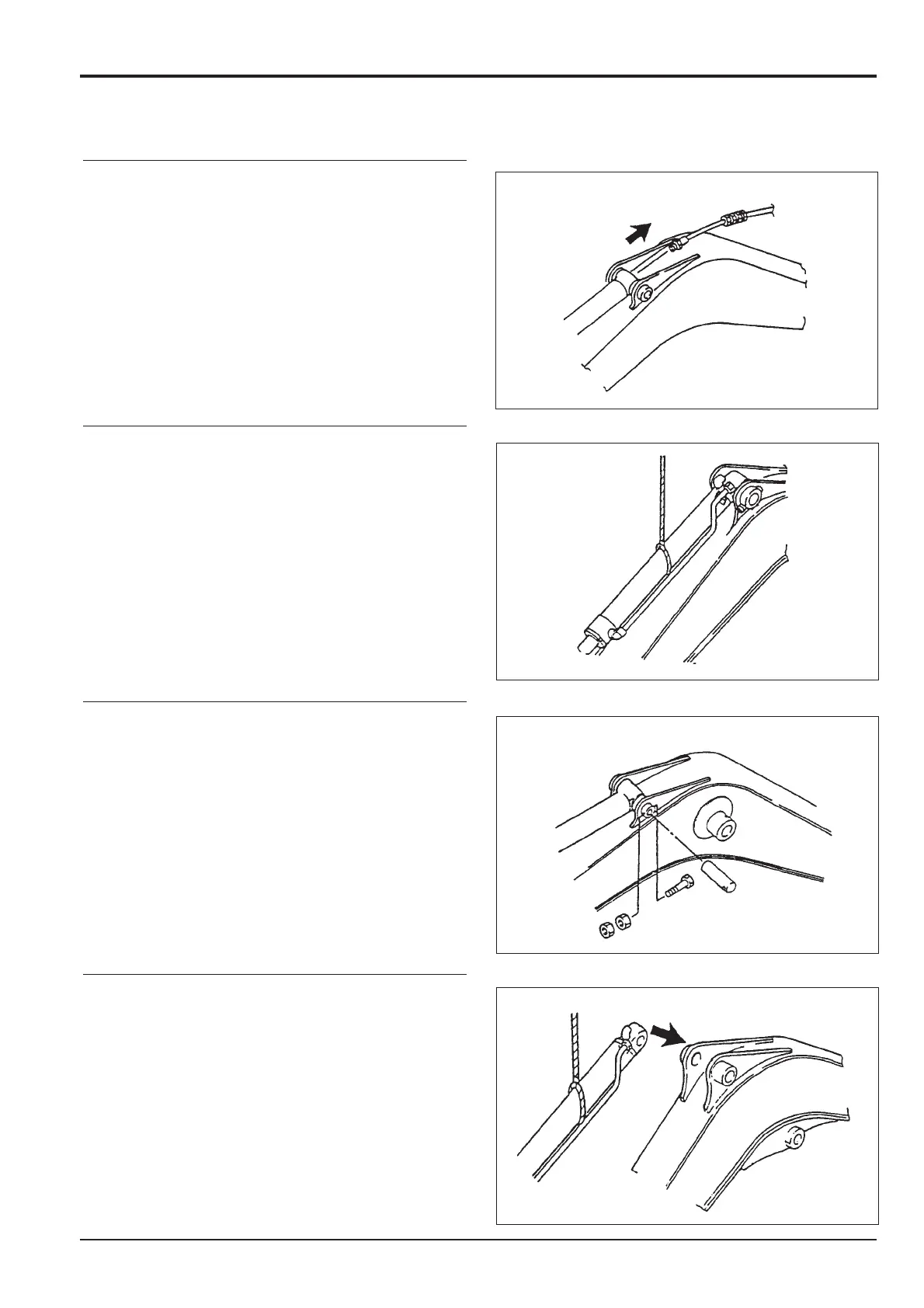

Dipper Ram
(continued)
8.
Remove the grease tube, from the Dipper ram.
9.
Attach a sling and lift the Dipper ram.
10.
Remove the nuts and bolts, push out the pin using a bar
and hammer. Lift the ram from the boom.
Installation
1.
Attach a sling and lift the Dipper ram onto the boom.
73 - 3
Section E
Hydraulics
9803/6400
Section E
73 - 3
Issue 1
Hydraulic Rams
345
