77 - 1
Section E
Hydraulics
9803/6400
Section E
77 - 1
Issue 1
Hydraulic Rams
Reconditioning (continued)
Bush removal
Note: The jigs differ, depending on the piston rod diameter, so please refer to the table and select the appropriate jig.
The chuck blade section is a very important part, so handle and store with utmost care.
Place the cylinder head on the work bench with the
cylinder tube connecting surface facing up.
The work bench should be clean so that no dust or other
foreign matter can cause damage to the pipe joint .
Remove the bushing securing snap ring.
Secure the cylinder head in a vice, etc. and with the end of
a special tool, pull out the snap ring and remove.

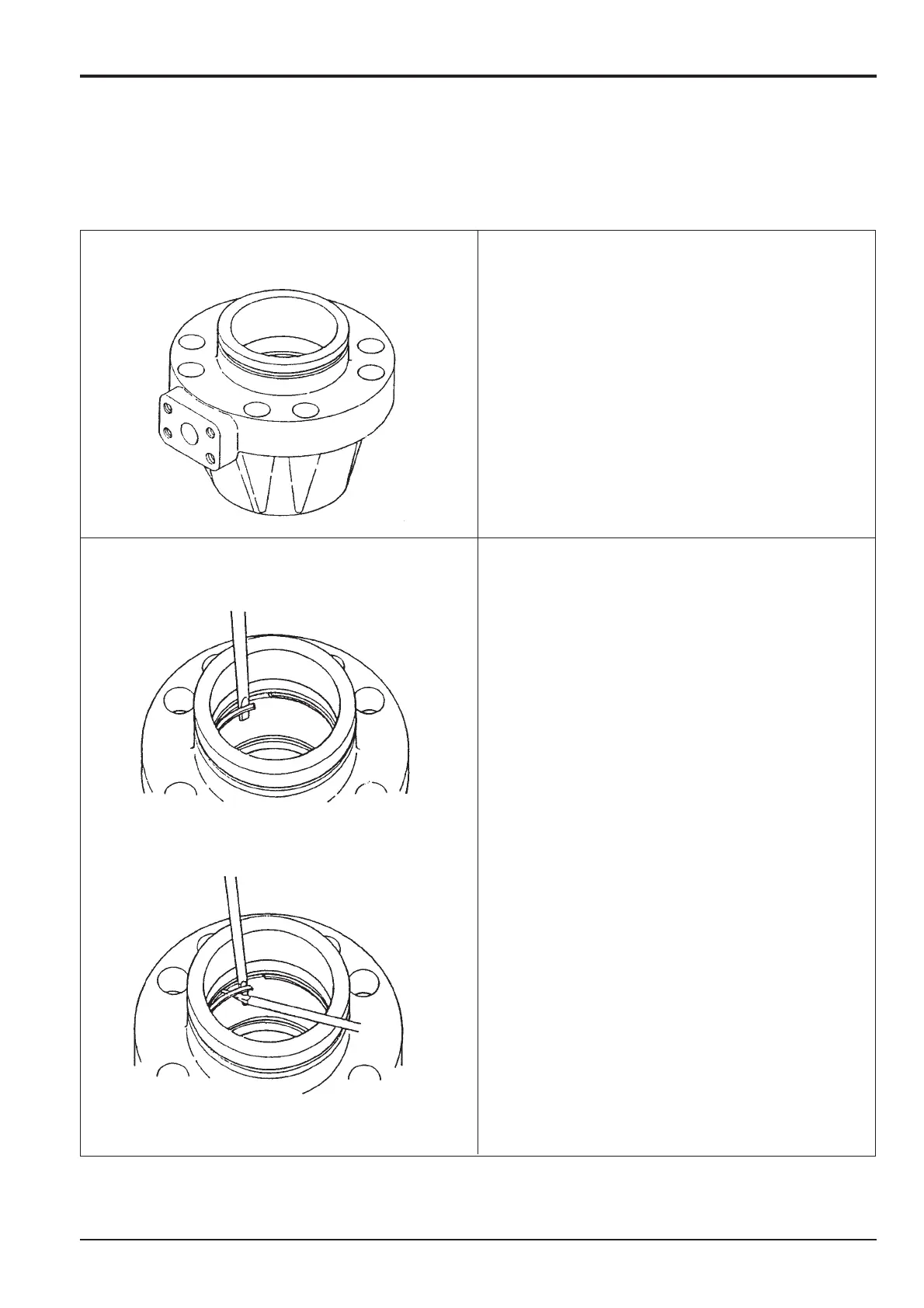

1. Cylinder head setting
2. Removing snap ring
To Next Page
