77 - 8
Section E
Hydraulics
9803/6400
Section E
77 - 8
Issue 1
Hydraulic Rams
Reconditioning (continued)
Bush Assembly (continued)

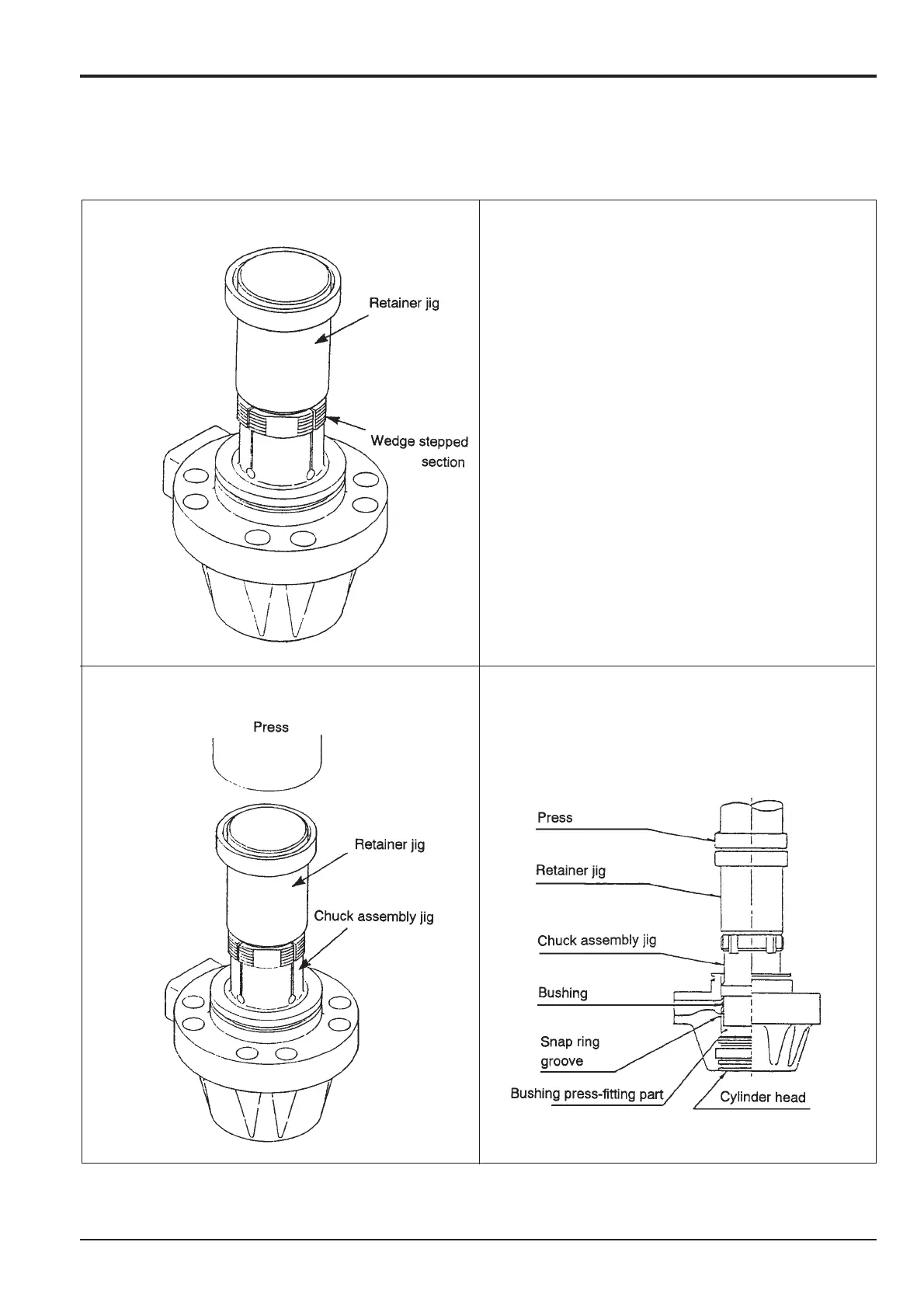

Gently place the retainer so that its end is aligned with the
wedge stepped section of the chuck assembly jig.
Place the retainer so that the larger diameter part is facing
up as shown.
Place the cylinder with the retainer (jig) and chuck
assembly (jig) attached underneath the press.
Adjust so that the shaft centre of the press (ram) is in line
with that of the retainer and chuck assembly.
4. Attaching the retainer (jig)
5. Preparation for press-fitting
