92 - 5

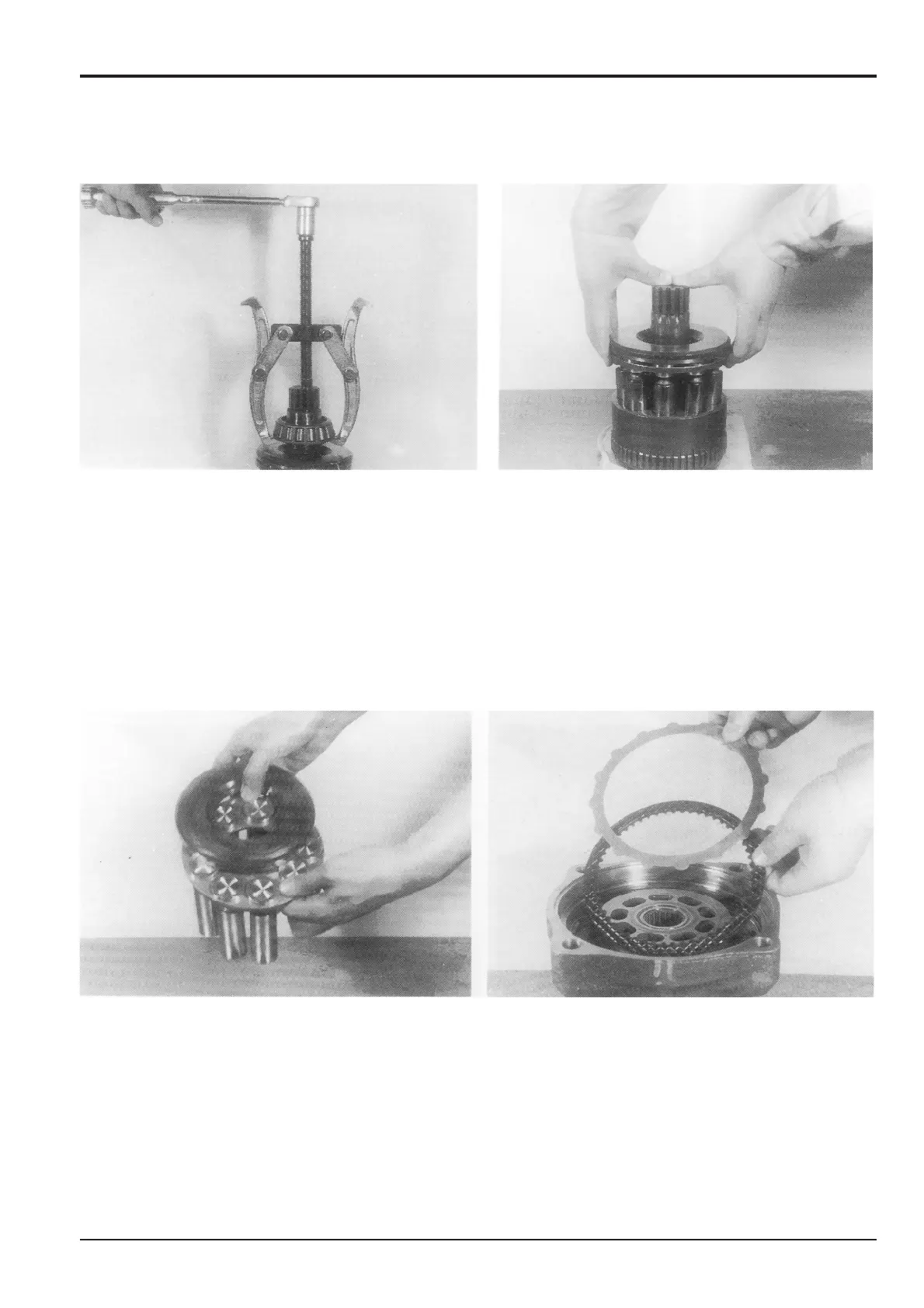

16 Attach a puller to the inner ring of taper roller bearing 3
at two places and on the end of cylinder 24 spline, then
extract bearing inner ring 1. Take out collar 53.
17 Remove swash plate 6, piston assemblies 8 and
retainer plate 7 together from cylinder 24.
Section E
Hydraulics
9803/6400
Section E
92 - 5
Issue 2*
Slew Motor
*
Motor Assembly/Cylinder Assembly
Dismantling (cont’d)
18 Slide swash plate 6 from the sliding faces of the piston
assemblies.
Note: Take care not to damage the swash plate during
handling.
19 Remove friction plate 9 and mating plate 10.
To Next Page
