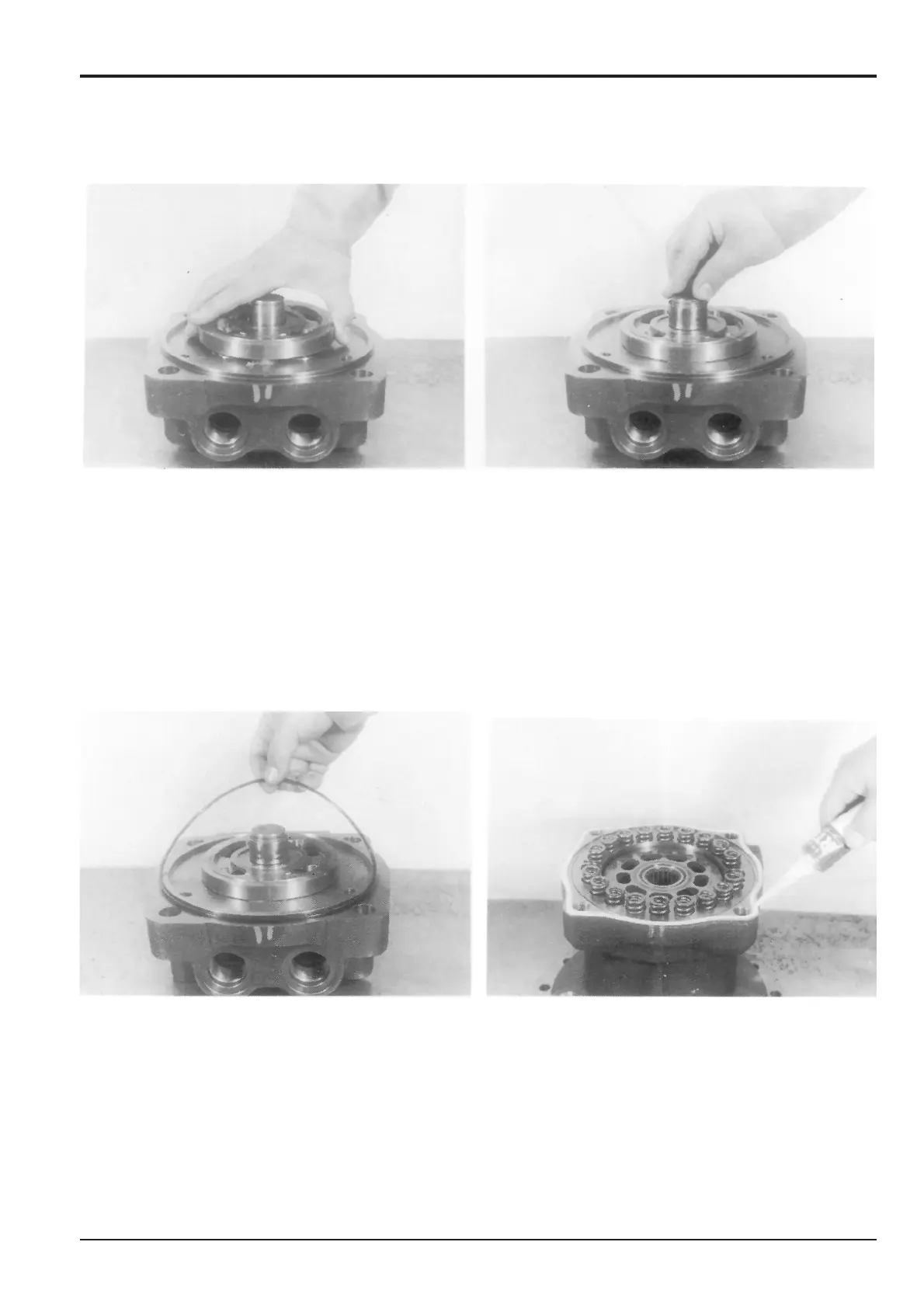

18 Mount balance plate 21 onto cover 17. 19 Press needle bearing 22 inner ring into cover 17 and
attach snap ring 23.
Section E
Hydraulics
9803/6400
Section E
92 - 12
Issue 2*
Slew Motor
*
Motor Assembly/Cylinder Assembly
Assembly (cont’d)
20 Apply grease to the 'O'-ring and install 'O'-ring 13 to
cover 17.
21 To prevent oil leakage from the cover bolt holes apply
JCB Multi-gasket to the surface.
