94 - 1

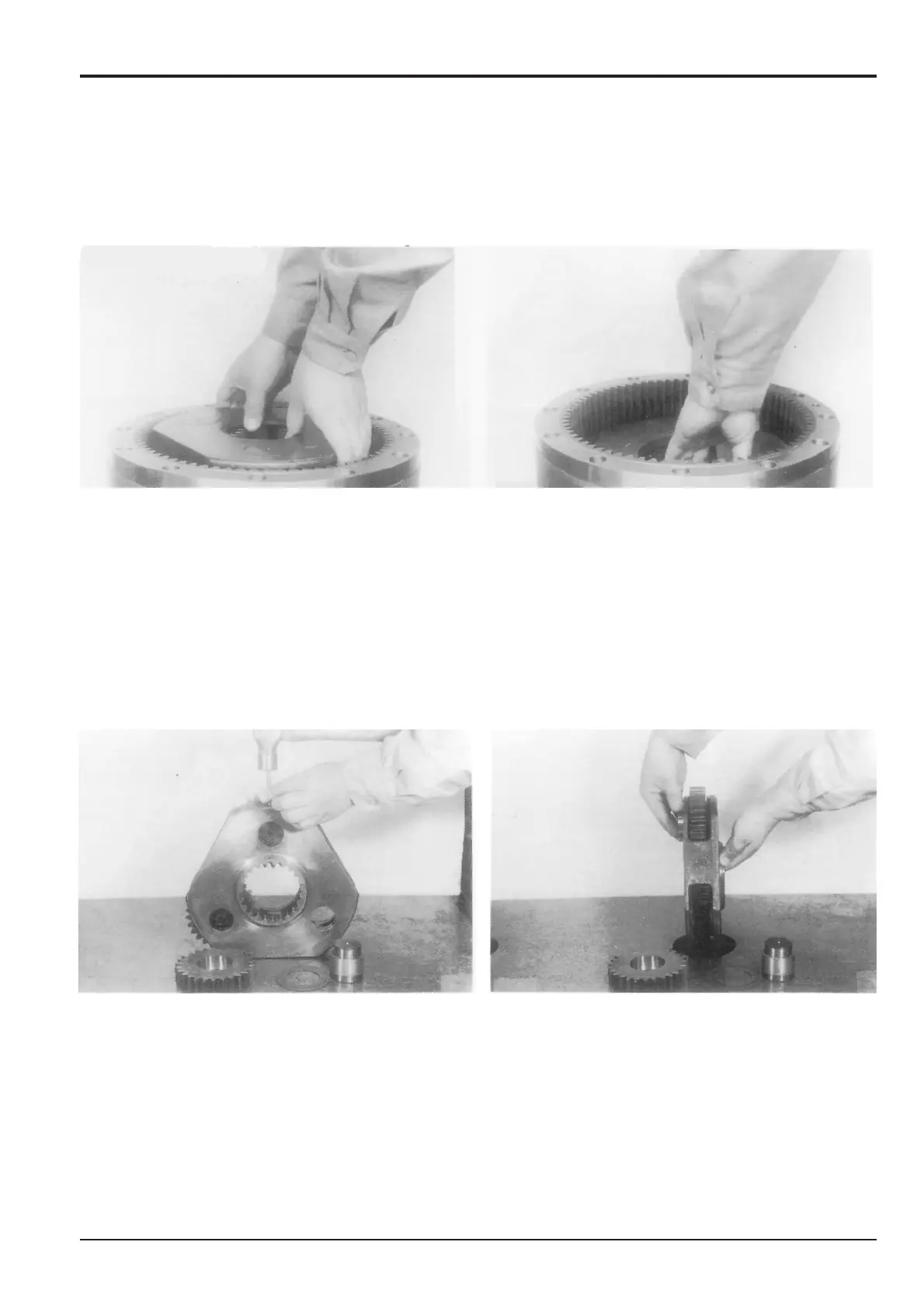

1 Removal of the sun gear, 1st stage holder assembly.
Remove sun gear 66 and 1st stage holder assembly 65.
! WARNING
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
2 Remove the spur gear and 2nd stage holder assembly
76.
Section E
Hydraulics
9803/6400
Section E
94 - 1
Issue 2*
Slew Motor
*
Reduction Gear
Dismantling
Refer to the sectional drawing on page E/83-2 as a guide to
dismantling and assembling.
3 Dismantling of the 1st stage holder assembly.
Drive the spring pins into shaft 67.
Note: The spring pins cannot be reused.
4 Support planetary gears 69 by hand and withdraw shaft
67 from holder 65.
*
To Next Page
