jcb JS260

7 - 5
Dismantling (continued)

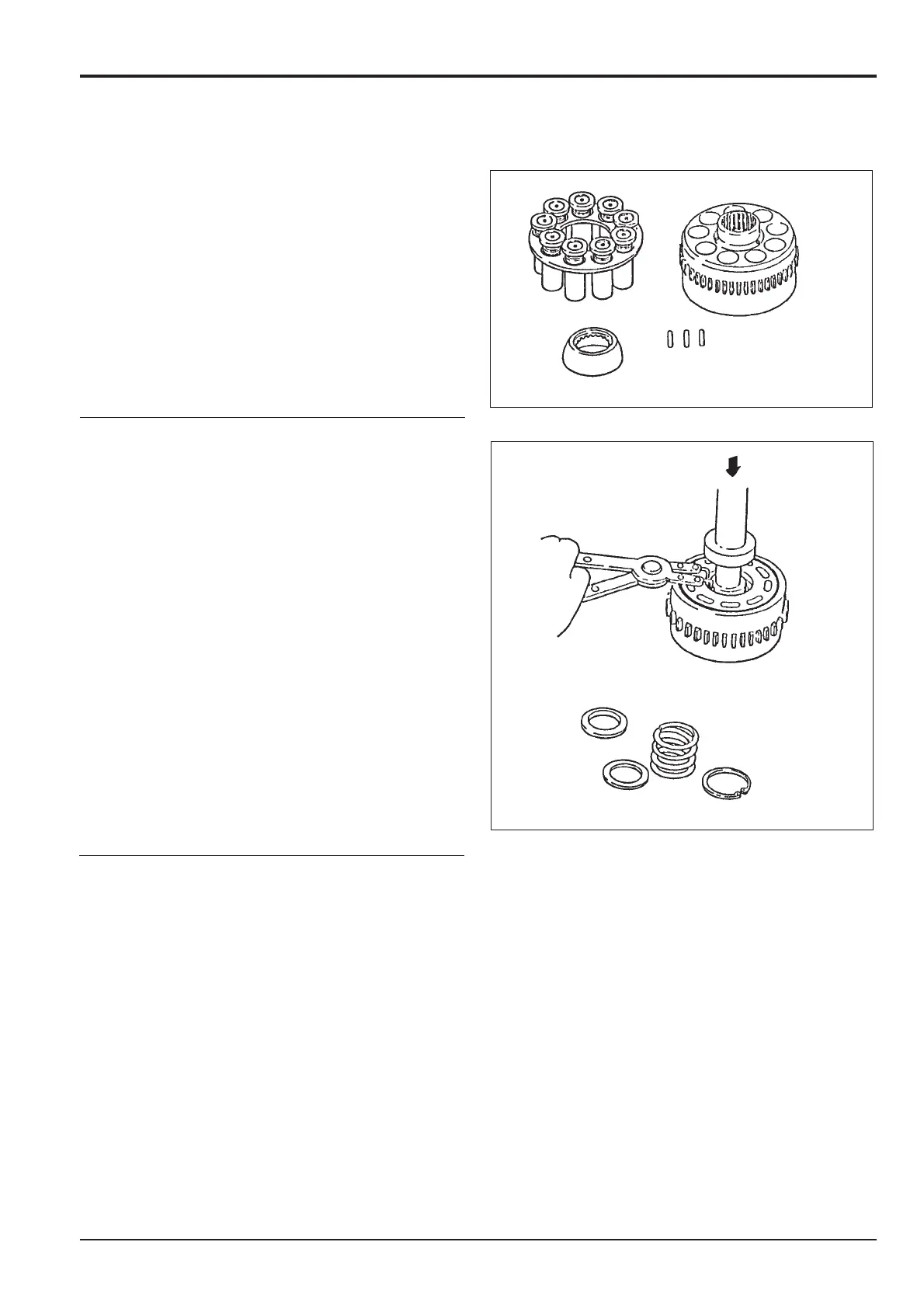

12. Remove the (6) piston, (7) retainer plate, (8)
retainer holder and (19) pin from the (4) cylinder
block.
13. Remove the (14) snap ring using a jig or press and
remove the (15) spring seat, (16) spring and (17)
spring seat.
Section F
Transmission
9803/6400
Section F
7 - 5
Issue 1
Motor
