9 - 1
Section F
T
ransmission
9803/6400
Section F
9 - 1
Issue 2*

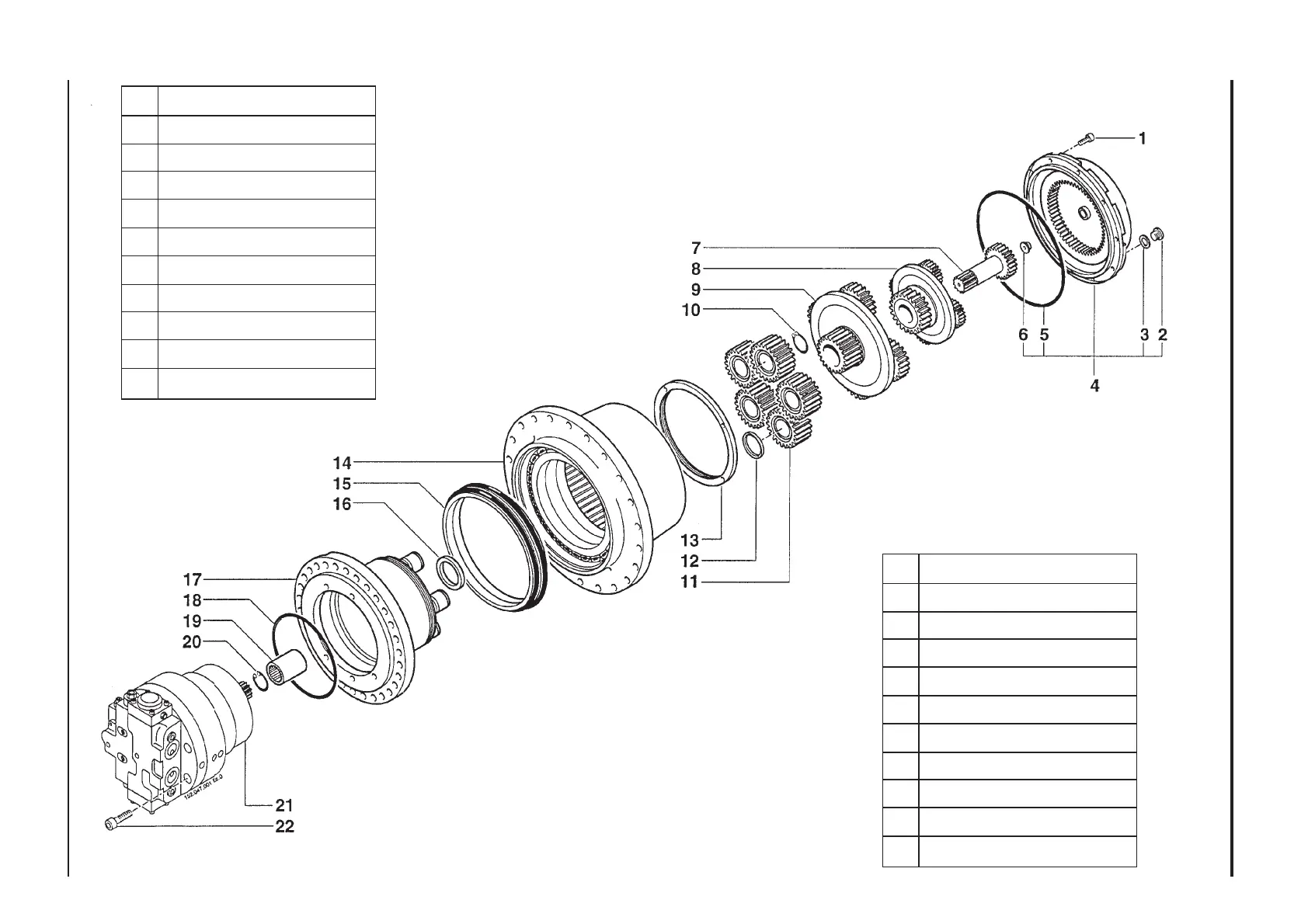

Gearbox
1
Screw
2
Breather Plug
3
W
asher
4
Cover
5
O-ring
6
Pad
7
Sun Gear
8
1st. Reduction Assembly
9
2nd. Reduction Assembly
10
Circlip
11
Planetary Set
12
Spacer
13
Nut
14
Gearbox Housing
15
Longlife Gasket
16
Centering Hub
17
Hub
18
O-ring
19
Coupling
20
Circlip
21
Hydraulic Motor
22
Screw
*
484
